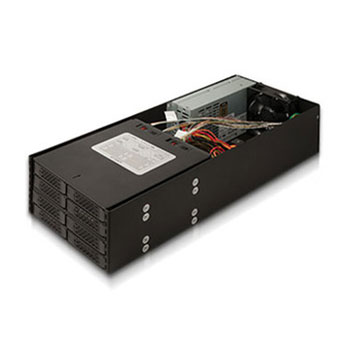

Sonnet Mobile Rackmount Storage Expansion Kit
Scan code: LN60505
Manufacturer code: SON-MRSTO-X8SSD
£720.49
Sonnet Mobile Rackmount Storage Expansion Kit
Sonnet Mobile Rack Kit Module Storage Expansion Edition for up to 8 SSDs
Scan code:
LN60505
Manufacturer code:
SON-MRSTO-X8SSD
Order now and get it tomorrow
(upgrade to Sunday delivery at checkout)
- SCANPROTECT Protect against installation damage for 28 days. More info
Product Overview
Expansion for Mobile Rack Devices
Sonnet's Mobile Rack Device Mounting Kit enables you to install one full-height or two half-height 5.25" form factor mobile rack devices inside the Echo Express III-R or xMac Pro Server rackmount enclosure. You can install a variety of devices up to 8" in length inside the mobile rack kit and connect them to cards installed inside the Echo or xMac Pro Server chassis to further expand your tools at hand. An integrated 100W power supply powers the devices, while a quiet 80 mm fan cools them. If you need to install only one half-height device, blank plates are included to allow you to cover the remaining space to keep a clean look.
Installation of devices and the kit itself is easy. The Mobile Rack Device Mounting Kit includes mounting screws to secure your mobile rack devices within the kit's frame. After securing the devices, attach one of the eight included power connectors to each device, connect interface cables to the devices and route them through the cable pass-through opening. Connect the interface cables to cards installed in the Echo or xMac Server Pro chassis, and then secure the entire mobile rack kit assembly inside the rackmount enclosure. Features Enables Installation of Mobile Rack Devices In the Echo Express III-R and xMac Pro Server—Supports either one full-height or two half-height devices inside the rackmount enclosure
Integrated 100W Power Supply—Plenty of power for installed devices
Three PCIe Slots—Supports three full-length, full-height, single-width cards, or one double-width card plus one single-width card
Eight Power Connectors—Matching connector for nearly every device
Large, Quiet Fan—80 mm fan provides good airflow over the devices to cool them
What's in the box?
• Mobile Rack Device Mounting Kit
• Two 4x2.5" 6Gb/s SATA hot-swap drive cages
• Two mini-SAS-to-4x internal SATA cables
• External 8-port 6Gb/s SAS/SATA PCIe 2.0 card
You Add: Eight of your own 2.5" SSDs or hard drives. (Not included, sold separately)
Sonnet's Mobile Rack Device Mounting Kit enables you to install one full-height or two half-height 5.25" form factor mobile rack devices inside the Echo Express III-R or xMac Pro Server rackmount enclosure. You can install a variety of devices up to 8" in length inside the mobile rack kit and connect them to cards installed inside the Echo or xMac Pro Server chassis to further expand your tools at hand. An integrated 100W power supply powers the devices, while a quiet 80 mm fan cools them. If you need to install only one half-height device, blank plates are included to allow you to cover the remaining space to keep a clean look.
Installation of devices and the kit itself is easy. The Mobile Rack Device Mounting Kit includes mounting screws to secure your mobile rack devices within the kit's frame. After securing the devices, attach one of the eight included power connectors to each device, connect interface cables to the devices and route them through the cable pass-through opening. Connect the interface cables to cards installed in the Echo or xMac Server Pro chassis, and then secure the entire mobile rack kit assembly inside the rackmount enclosure. Features Enables Installation of Mobile Rack Devices In the Echo Express III-R and xMac Pro Server—Supports either one full-height or two half-height devices inside the rackmount enclosure
Integrated 100W Power Supply—Plenty of power for installed devices
Three PCIe Slots—Supports three full-length, full-height, single-width cards, or one double-width card plus one single-width card
Eight Power Connectors—Matching connector for nearly every device
Large, Quiet Fan—80 mm fan provides good airflow over the devices to cool them
What's in the box?
• Mobile Rack Device Mounting Kit
• Two 4x2.5" 6Gb/s SATA hot-swap drive cages
• Two mini-SAS-to-4x internal SATA cables
• External 8-port 6Gb/s SAS/SATA PCIe 2.0 card
You Add: Eight of your own 2.5" SSDs or hard drives. (Not included, sold separately)
