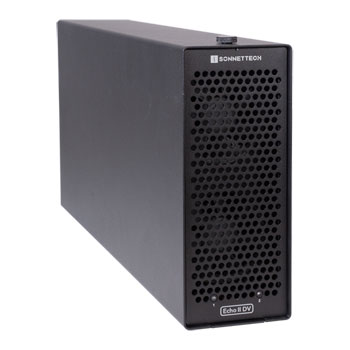

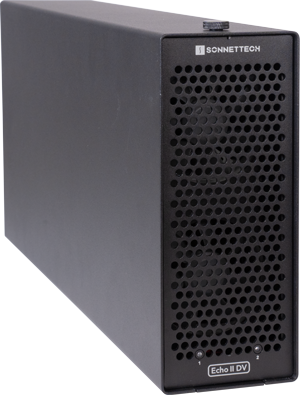

Sonnet Echo II DV T5 Desktop PCIe Expansion System

Max DV Performance via ThunderboltThe Sonnet Echo II DV T5 Desktop Thunderbolt 5 PCIe Expansion System is a professional 2-slot desktop chassis that lets you add two full-length, single-width PCIe 4.0 cards to modern Thunderbolt 5, Thunderbolt 4, Thunderbolt 3, and USB4 computers for maximum high-bandwidth performance. With dual independent Thunderbolt 5 interfaces delivering up to 6000 MB/s PCIe bandwidth to each slot, it is ideal for demanding DV I/O, ultra-fast NVMe SSD storage, and multi-port 10/25Gb Ethernet workflows in video, audio, and broadcast production environments.

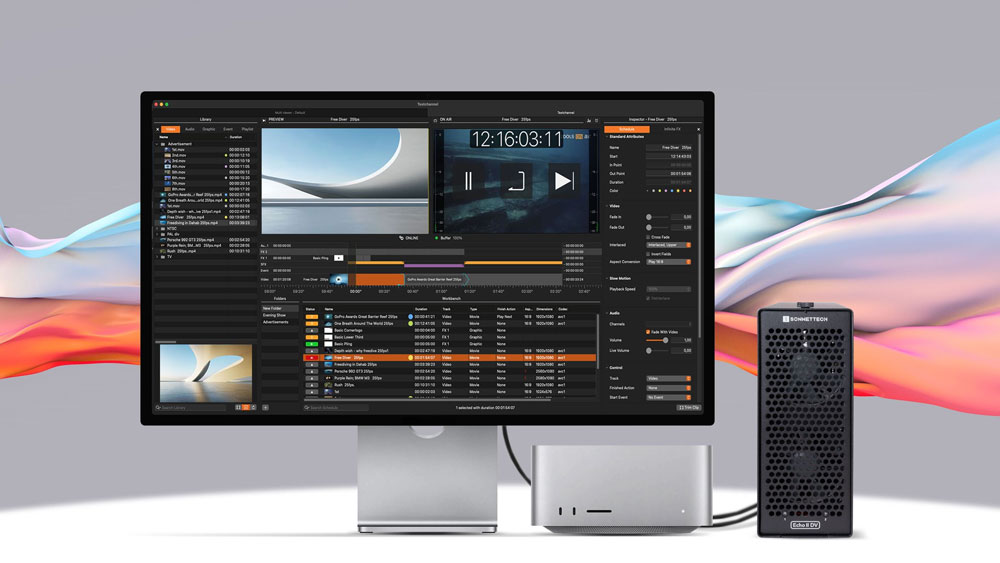

Run Two High-bandwidth Cards at Full 6000 MB/s SimultaneouslyAre you a creative pro using one of the hot new laptops or mini desktops with ultra-high-performance Thunderbolt™ 5 ports in your workflow? They offer tremendous onboard processing power, but don’t have the PCIe slots you need for connecting adapter cards to add specialized ports and processing capabilities critical to your workflow.

Sonnet Echo™ II DV T5 Desktop overcomes the no-slots limitation. This pro Thunderbolt 5 to PCIe card expansion system enables you to connect two full-length, single-width PCIe cards to your computer, each to a separate Thunderbolt port for maximum bandwidth to each card — it’s the ultimate solution for connecting cards with high bandwidth requirements.

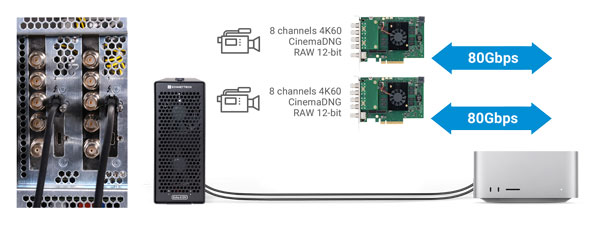

Two PCIe 4.0 Card Slots. Dual Thunderbolt 5 Interfaces for Double the Bandwidth.Some of the latest computers — including MacBook Pro (M4 Pro/M4 Max) , Mac mini (M4 Pro), Mac Studio (M3 Ultra/M4 Max), and select Windows PCs — offer multiple Thunderbolt 5 ports, each with its own independent bus delivering 6000 MB/s of PCIe bandwidth. Echo II DV T5 Desktop is designed to fully tap into that speed. Instead of sharing bandwidth across slots, it uses a dedicated Thunderbolt 5 interface for each slot, delivering full PCIe bandwidth to both cards at the same time. This means you can run two high-demand PCIe cards at full performance simultaneously — perfect for DV I/O, ultra-fast NVMe storage, and multi-port 10 and 25Gb Ethernet workflows.

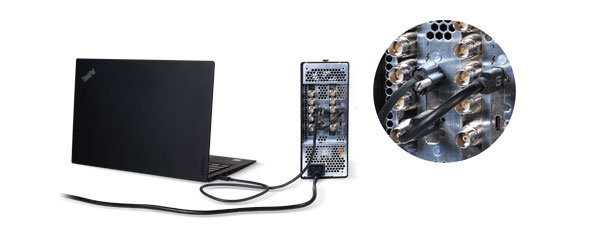

Separate Thunderbolt 5 Interface for Each Card SlotEcho II DV T5 provides full Thunderbolt PCIe bandwidth to each slot when connected to two computer Thunderbolt ports that also provide independent PCIe bandwidth — 6000 MB/s with Thunderbolt 5 computers, and 2880 MB/s with Thunderbolt 4, 3, and USB4 computers.

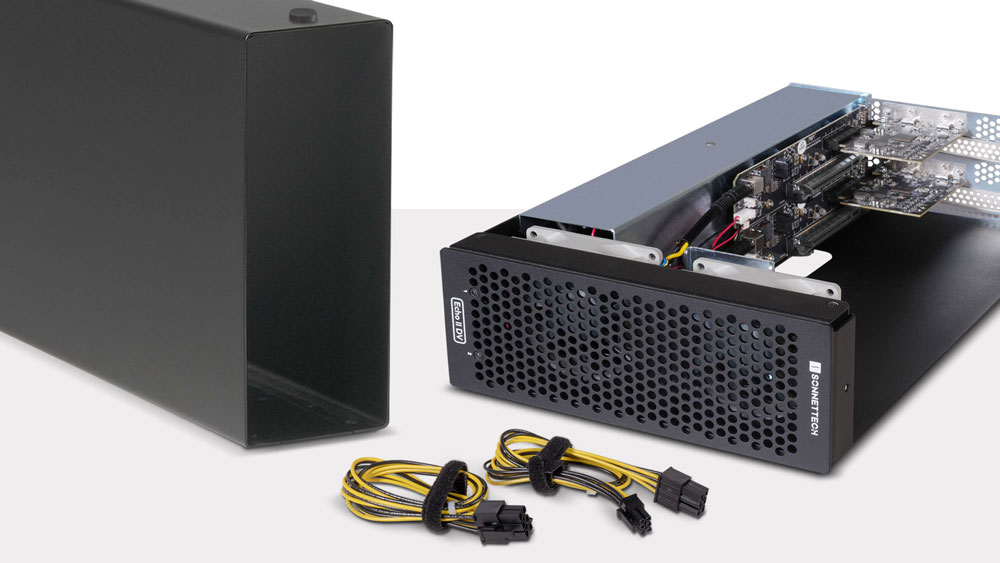

Two PCIe 4.0 Slots and Power to SpareEcho II DV T5 Desktop features two x16 PCIe slots with support for a wide variety of cards. For power-hungry cards, Echo II DV T5 integrates a universal 400W power supply and includes dual 75W auxiliary power connectors (one for each card slot) for cards that require extra power, including AJA Kona 5, Blackmagic DeckLink 8K Pro G2 (with main board [SDI ports] only), and Avid Pro Tools | HDX. Designed without a power switch, Echo II DV T5 powers on and off automatically with the connected computer, saving energy in the long run. With no power switch, you can’t forget to turn off the system!

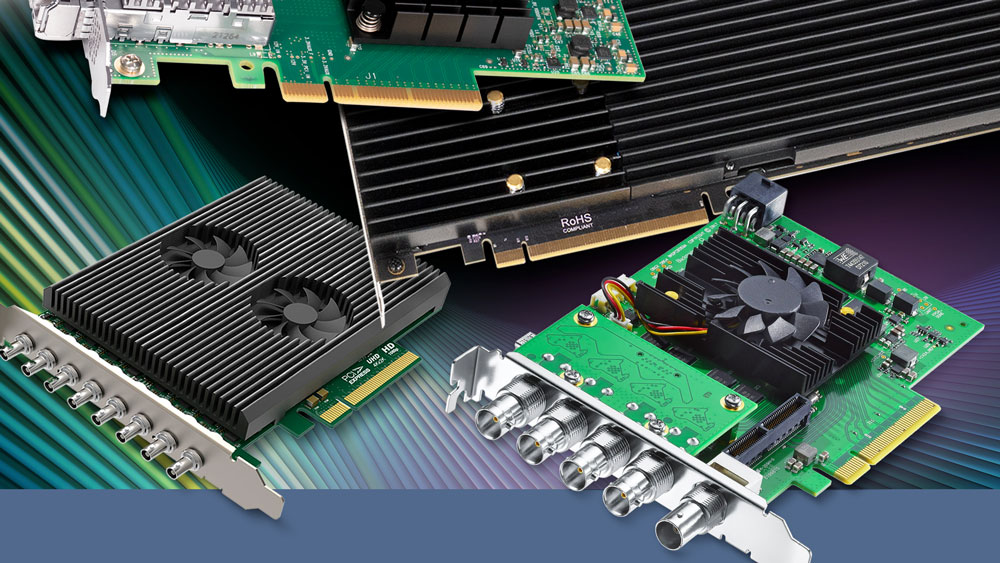

Supports Thunderbolt Compatible, Single-width, Non-GPU CardsEcho II DV T5 Desktop supports Thunderbolt compatible, single-width, non-GPU PCIe 4.0, 3.1, 2.0, and 1.1 cards including video capture, streaming and transcoding; SSD storage; audio DSP; multi-port 10Gb and 25Gb Ethernet; SAS or SATA host bus adapter; and other specialty types. Not sure if a card you own or are considering is compatible? We’ve put together a compatibility list that identifies many cards conforming to Thunderbolt technology requirements and organized by fit and power compatibility with specific expansion systems.

Echo II DV T5 Rackmount supports the types of PCIe cards you need for your workflow, ranging from the largest video I/O and high track count audio cards, to the smallest Ethernet NIC and USB interface cards.

Dual Noctua FansEcho II DV T5 Desktop can be comfortably used in noise-sensitive environments. Delivering ultra-quiet operation, its dual Noctua fans operate at below the recommended 20dBA limit for recording and broadcast studios and spread their noise across a range of frequencies, reducing the impact at any one frequency. To further guarantee trivial noise levels, the fans are temperature-controlled, automatically speeding up and slowing down smoothly as necessary, and the enclosure supports optimized airflow over the installed cards to effectively and efficiently cool the system.

lightweight, rugged aluminum outer shellEcho II DV T5 Desktop system’s lightweight, rugged aluminum outer shell securely houses the installed PCIe cards. Because it automatically powers on and off with your computer, there is no power switch on the enclosure, ensuring you don’t waste energy by forgetting to turn it off.

Thunderbolt 5 Cables and ThunderLoks IncludedSonnet includes two Thunderbolt cables engineered to deliver Thunderbolt 5’s full bandwidth and power delivery performance. The cables are fully compatible with Thunderbolt 5, 4, and 3, and USB4 computers. Three Sonnet ThunderLok Thunderbolt connector locks are also included to prevent accidental cable disconnections. Many Sonnet Thunderbolt products featuring Thunderbolt ports come equipped with threaded mounting holes to securely attach a Sonnet ThunderLok connector lock, preventing Thunderbolt cables from accidentally disconnecting.

Tomorrow’s Performance. Today.Echo II DV T5 Desktop is built with the features and quality you expect from a Sonnet expansion system, plus the Thunderbolt 5 interface you need for maximum performance. With 80 Gbps of bi-directional data speed — twice as fast as Thunderbolt 4 — and up to 120 Gbps for higher display bandwidth, you'll revolutionize your productivity.

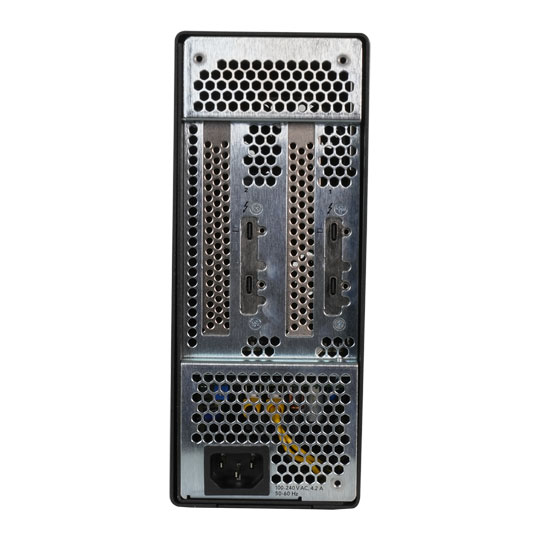

More Than Just the Fastest External Interface AvailableEcho II DV T5 Desktop features two dual-port, ultra-high speed Thunderbolt 5 interfaces that deliver the PCIe bandwidth needed to support most cards at maximum performance. While two ports are reserved for connecting your computer, the secondary ports enable connection of additional Thunderbolt or USB peripheral devices:
