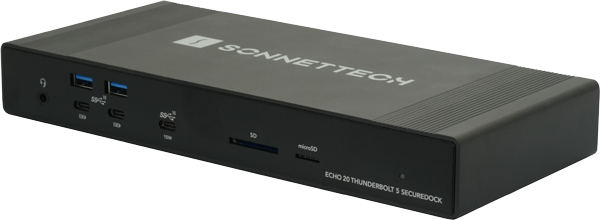

Sonnet Echo 20 Thunderbolt 5 SecureDock

Thunderbolt 5 Dock with 10GbEThe Sonnet Echo 20 Thunderbolt 5 SecureDock is a powerful docking station designed for secure environments that need high-speed connectivity, reliable expansion, and no onboard storage. With Thunderbolt 5 performance, built-in 10Gb Ethernet, multiple USB-A and USB-C ports, dual display support, and up to 140W laptop charging, the Echo 20 SecureDock is built for modern Mac, Windows, and USB4 workflows that demand fast, flexible, and secure single-cable docking.

Thunderbolt 5How do you improve the performance of Sonnet Thunderbolt 4 docks? You double the bandwidth. You increase the power. You add the most-requested features.

Introducing Echo 20 Thunderbolt 5 SecureDock — a powerful enterprise dock with built-in 10GbE networking designed for secure environments that prohibit onboard storage. Transform a single cable connection from your computer into two Thunderbolt 5 peripheral ports, two video output ports, one 10Gb Ethernet port, nine 10 Gbps USB 3 ports, and more! With 80 Gbps of bi-directional data speed — twice as fast as Thunderbolt 4 — and 120 Gbps for higher display bandwidth, SecureDock delivers the performance and connectivity modern enterprise workflows demand.

2x Faster than Thunderbolt 4

Thunderbolt 5: 80 Gbps bi-directional data with up to 120 Gbps video stream performance

Thunderbolt 4: 40 Gbps

USB 3 Gen 2: 10 Gbps

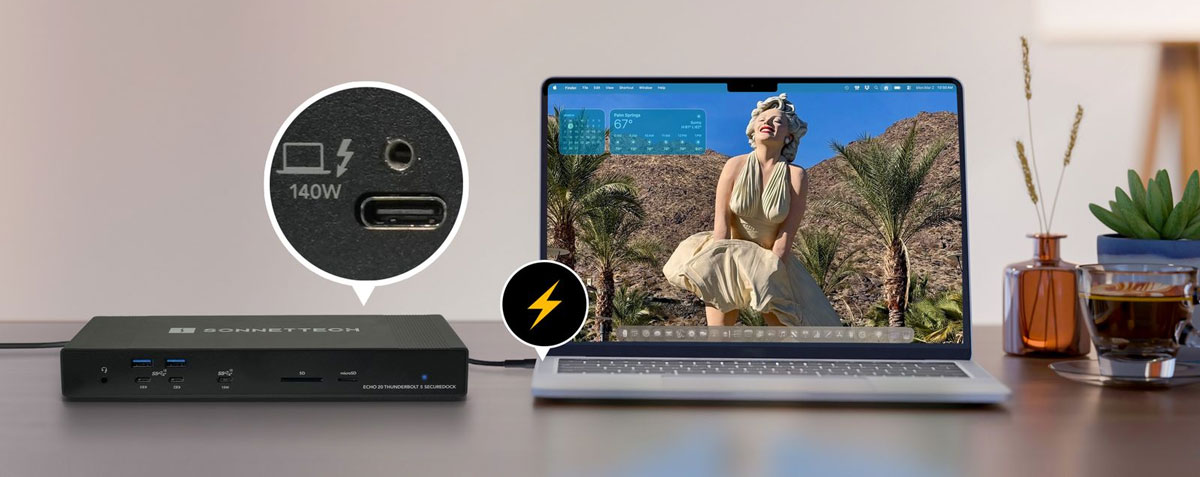

Up to 140W of Charging PowerEcho 20 Thunderbolt 5 SecureDock links plugged-in Thunderbolt devices, monitors, USB peripherals, powered speakers, and Ethernet cable to your computer with a single Thunderbolt 5 cable. Got a laptop? Keep its power adapter in your bag — the SecureDock will power it with 140W of charging power. When it’s time to leave, just disconnect the Thunderbolt cable, grab your computer, and go.

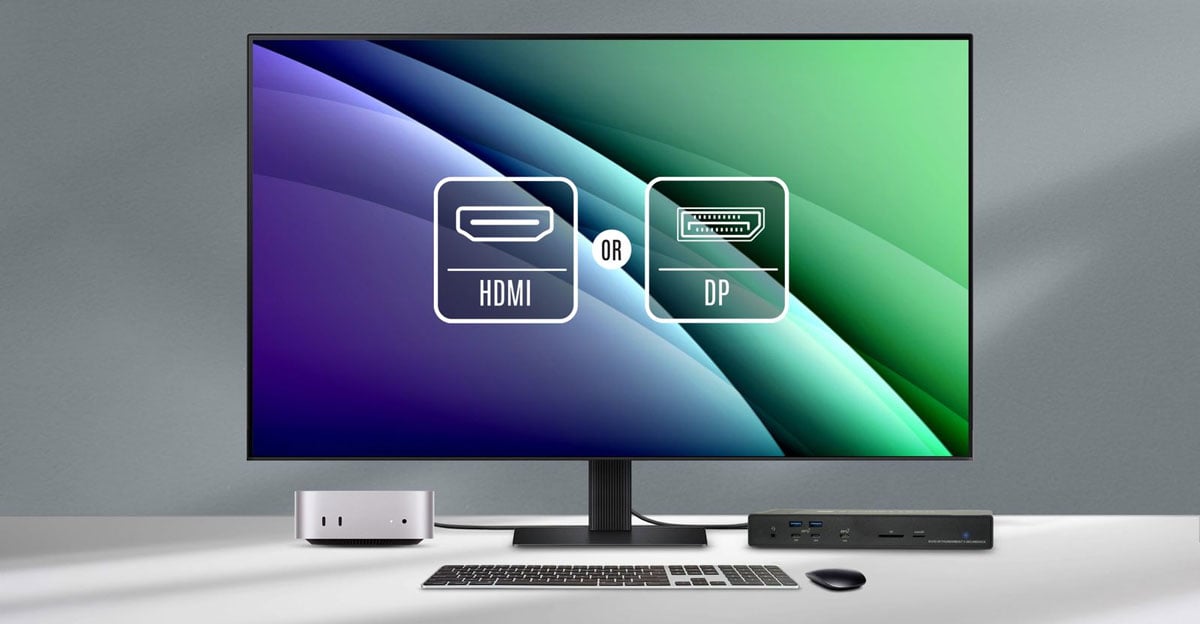

4K, 5K, 6K, 8K SupportEcho 20 Thunderbolt 5 SecureDock features video output ports for HDMI and DisplayPort displays, enabling you to connect either an up to 8K @60Hz HDMI monitor or a 4K @144Hz DisplayPort monitor.

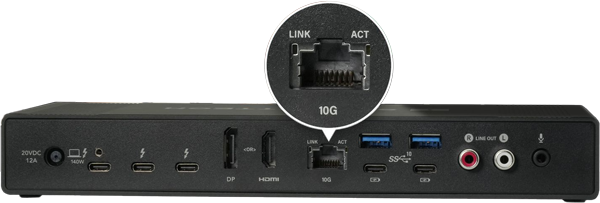

1000% the Speed of Gigabit EthernetEcho 20 Thunderbolt 5 SecureDock supports demanding workflows with built-in 10 Gigabit Ethernet, enabling connection to 10GbE infrastructure using cost-effective Cat 6 or Cat 6A copper cabling (up to 55 or 100 meters, respectively) — eliminating the need for a separate adapter.

Delivering up to 10x the performance of Gigabit Ethernet, the dock also supports 5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps link speeds when connected to switches or NAS devices without 10GbE support, using standard Cat 5e (or better) cabling.

Echo 20 Thunderbolt 5 SecureDock features a hi-res Audio Codec (coder-decoder) that supports the dock’s audio I/O jacks with high quality, lossless audio. And, with the SecureDock’s fanless, silent design, you’ll hear every detail.

Headset Microphone24-bit/48 kHz and 24-bit/96 kHz sample rates
Ideal for meetings, calls, and chat headsets, and supports professional microphones.

Headset Earphones24-bit/44.1 kHz
Ideal for CDs and music libraries, avoiding resampling of 44.1 kHz audio content.

24-bit/48 kHz
Great choice for streaming video and meetings. Supports Apple Lossless Audio Codec (ALAC) playback.

24-bit/96 kHz
Fantastic choice for audiophiles; supports Hi-Res Apple Lossless playback.

24-bit/192 kHz
Ideal when maximum detail is required; supports high-resolution Apple Lossless playback, preserving the full fidelity and dynamic range of studio-quality audio recordings.

Dedicated Mic Jack24-bit/96 kHz sample rate
Connect a dedicated microphone for clear voice input during meetings, calls, streaming, and voice recording.

Stereo RCA Jacks24-bit/96 kHz sample rate
Provide consistent line-level audio output, ideal for connecting powered speakers or directly to a receiver, power amplifier, or mixer. Also excellent for self-powered studio monitors and other professional audio equipment. Supports Hi-Res Apple Lossless playback.

Simple, Powerful ConnectivityEcho 20 Thunderbolt 5 SecureDock incorporates three Thunderbolt 5 ports. One connects to and powers your computer — ideal for laptops with only one or two Thunderbolt ports, since it handles charging and data through a single connection. The other two support Thunderbolt 5, 4, and 3 devices — as well as USB4 and USB 3 peripherals — and each provides 15W for demanding bus-powered devices. If supported by your computer, you can also connect one, two, or even three additional displays.

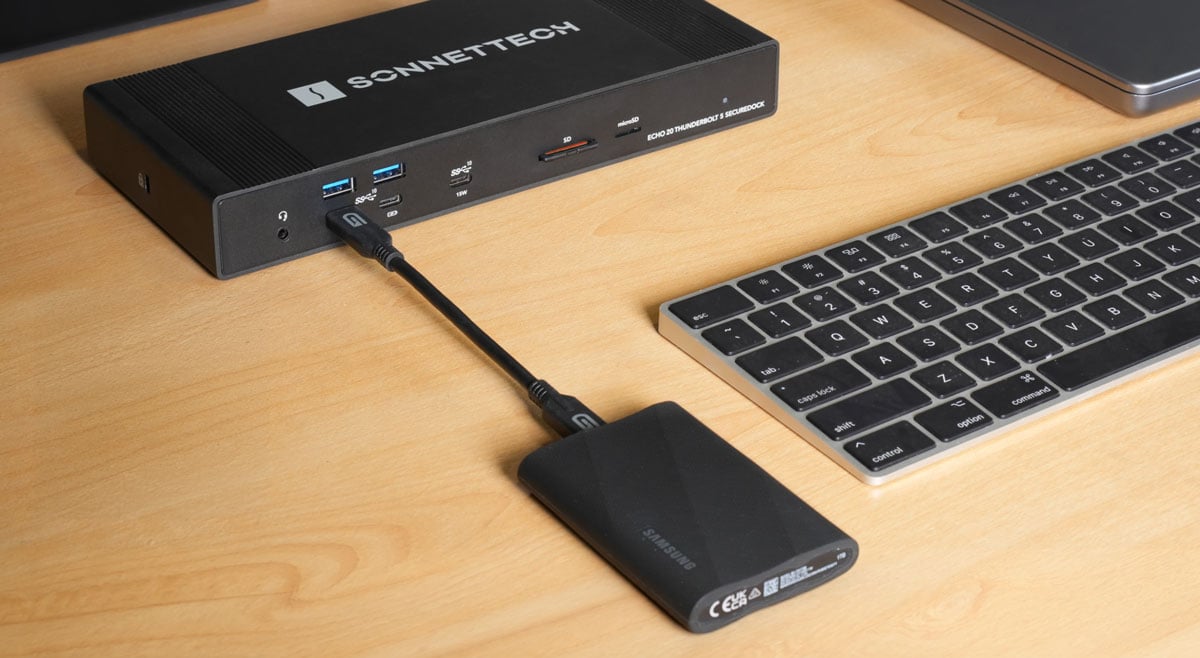

Powerful USB 3 ConnectivityEcho 20 Thunderbolt 5 SecureDock delivers powerful USB 3 connectivity with four 10 Gbps USB-A ports, and five 10 Gbps USB-C charging ports — including two on the front, two on the back, and a front 15W USB-C charging port. All ports support super-fast 10 Gbps USB NVMe SSDs at full speed.

Echo 20 doesn’t skimp on power either — each port provides 7.5W (or 15W) to ensure that drives with higher peak power requirements mount and operate reliably. An added benefit of the USB-C ports is they support device charging even when the computer is off, asleep, or disconnected.

USB Power Delivery

15W Charging

7.5W Charging

7.5W

15W and 7.5W charging powered ports deliver high-speed data and power, letting connected devices operate or charge without needing a separate power adapter.

Mac, Windows, Chromebook, and iPad ProEcho 20 Thunderbolt 5 SecureDock is certified for use with Apple M series Macs; Thunderbolt 3 Intel Macs; Thunderbolt 5 and most Thunderbolt 4 Windows computers; Thunderbolt 5 and 4 Chromebook computers; and M series iPad Pro.

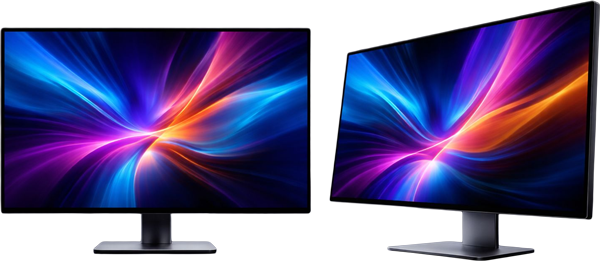

Drive 4K, 5K, 6K, and up to 8K Displays via ThunderboltDepending on your computer’s graphics capability and whether a DisplayPort or HDMI monitor is connected to one of the dock’s built-in display outputs, the Echo dock’s Thunderbolt ports can support as many as three displays — at 4K, 5K, or 6K resolution, and up to 8K.

Connect Thunderbolt 5, 4, 3, or USB-C monitors directly, or use a Thunderbolt-compatible adapter (sold separately) to connect HDMI, DisplayPort, and other display types.

Leave the Power Adapter In Your BackpackConnected to your laptop computer with the included Thunderbolt 5 cable, Echo 20 Thunderbolt 5 SecureDock provides up to 140W of power (Power Delivery), enabling it to power and charge your computer while connected, even when not in use, allowing you to leave your computer’s charger packed away.

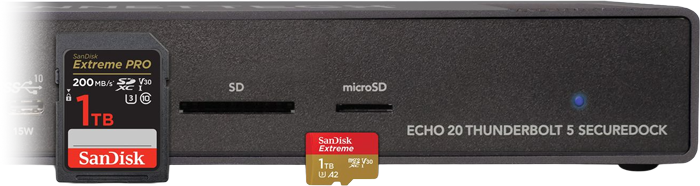

Fast UHS-II SD and microSD 4.0 Card ReadersThe included SD and microSD card slots are compatible with SD, SDHC, and SDXC; and microSD, microSDHC, and microSDXC memory cards, respectively, and support 320 MB/s read speeds with UHS-II SDXC and microSDXC cards to quickly offload images and video files.
