Sonnet - 'Echo 20 Thunderbolt 4 SuperDock'

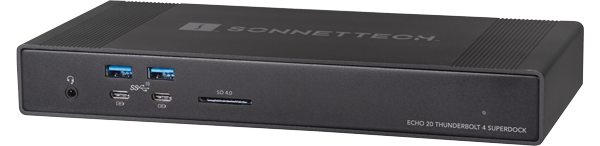

Sonnet Echo 20 Thunderbolt 4 SuperDock

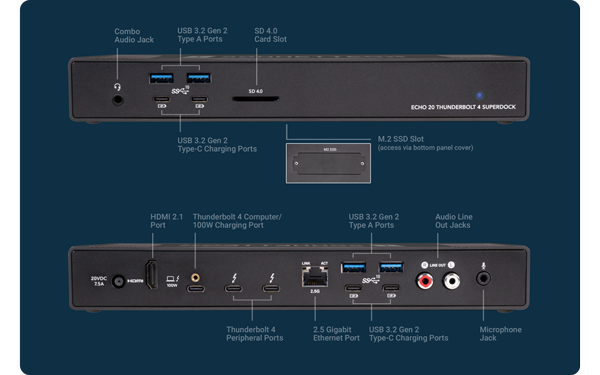

Expand your connectivity to the maxThe Sonnet Echo20 SuperDock offers more connections than you expect from a Thunderbolt™ dock, with three Thunderbolt 4 ports, NVMe storage capability, HDMI port, 2.5GbE support, an SD card reader and audio connectivity. All with a single Thunderbolt 4 Cable connecting to your computer. The Sonnet Echo™ 20 Thunderbolt 4 SuperDock is your universal docking station for today and tomorrow.

Sonnet Echo 20 Thunderbolt 4 SuperDock

Sonnet Thunderbolt Docks

One Stop Shop For Thunderbolt ConnectionsSonnets Echo series docking stations are a one stop shop for Thunderbolt Connections offering Thunderbolt and DisplayPort docks with power delivery and various combinations of interface ports for compatible Mac and Windows computers, Chromebooks and iPad Pro Tablets providing options ideally suited to your workflow needs an budget.

Learn More Here

Maximum Value and Connectivity

Sonnet Echo 20 Thunderbolt 4 SuperDock

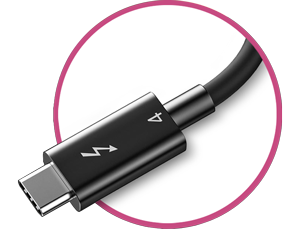

Thunderbolt 4Directly attach two Thunderbolt peripherals – and daisy chain up to a total of 5 devices

Sonnet Echo 20 Thunderbolt 4 SuperDock

100W Power DeliveryConnect and charge your laptop with up to 100W Power Delivery

Sonnet Echo 20 Thunderbolt 4 SuperDock

SSD StorageInstall an M.2 NVMe SSD; add up to 8TB of fast storage!

Sonnet Echo 20 Thunderbolt 4 SuperDock

Direct 8K HDMIConnect an 8K @60Hz HDMI display directly to the dock; no adapter required

Sonnet Echo 20 Thunderbolt 4 SuperDock

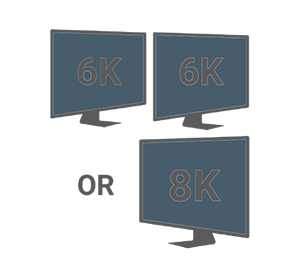

8K SupportConnect up to two 6K displays; or a single display up to 8K!

Sonnet Echo 20 Thunderbolt 4 SuperDock

USB 3Plug in up to 10 USB 3 devices via Type A and Type-C ports

Sonnet Echo 20 Thunderbolt 4 SuperDock

2.5Gb EthernetLink to an Ethernet network at 2.5 Gigabit speed!

Sonnet Echo 20 Thunderbolt 4 SuperDock

Device ChargingCharge your phone

Sonnet Echo 20 Thunderbolt 4 SuperDock

HeadsetPlug in your headset

Sonnet Echo 20 Thunderbolt 4 SuperDock

MicrophonePlug in your microphone

Sonnet Echo 20 Thunderbolt 4 SuperDock

Powered SpeakersConnect your powered speakers

Sonnet Echo 20 Thunderbolt 4 SuperDock

SD CardsRead your SD cards

Up to 100W of Charging Power

Sonnet Echo 20 Thunderbolt 4 SuperDock

Your Peripherals and Power Your Computer with One CableConnect your Thunderbolt devices, monitor(s), USB peripherals, powered speakers, and Ethernet cable to the dock and then link them all to your computer with a single Thunderbolt cable. Got a laptop computer? You can keep its power adapter in your bag because Echo 20 Thunderbolt 4 SuperDock will power it with up to 100W of charging power. When it is time to leave, just unplug the Thunderbolt cable, grab your computer, and go.

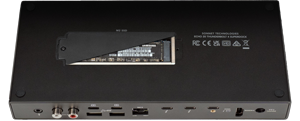

Internal SSD Expansion Slot

Sonnet Echo 20 Thunderbolt 4 SuperDock

Add up to 8tb of NVMe SSD StorageThe built-in M.2 NVMe SSD slot enables you to add up to 8TB of SSD storage (SSD sold separately) to your system without connecting a storage device to the Echo dock or the computer. SSD installation is an easy task – simply remove the two screws securing a bottom panel cover, insert the SSD, and reinstall and secure the bottom cover. Transfer and access data at up to 800 MB/s, and effortlessly store large files, media libraries, or your Time Machine® backups.

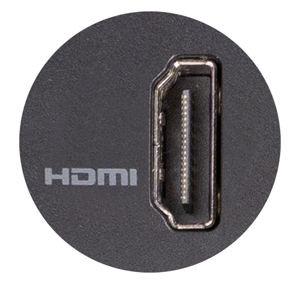

HDMI 2.1 Built-in

Sonnet Echo 20 Thunderbolt 4 SuperDock

Onboard HDMI Display SupportEcho 20 Thunderbolt 4 SuperDock features a built-in HDMI port, enabling you to plug in an HDMI display directly to the dock.

2.5GbE Connectivity

Sonnet Echo 20 Thunderbolt 4 SuperDock

Faster Ethernet Transfers Across Existing CablingFeaturing 2.5 Gigabit Ethernet, Echo 20 Thunderbolt 4 SuperDock supports a 2.5 Gb/s link speed over common Cat 5e (or better) cabling when used with a compatible Ethernet switch or NAS with 2.5Gb Ethernet support, saving you the cost of another adapter. You can get great performance gains – 250 percent the speed of Gigabit Ethernet – without rewiring! Need to connect to a switch without 2.5Gb Ethernet support? The Sonnet dock also supports 1Gb/s and 100Mb/s link speeds.

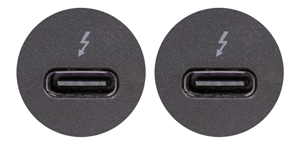

3 Thunderbolt 4 Ports

Sonnet Echo 20 Thunderbolt 4 SuperDock

Dual Downstream Thunderbolt Ports Echo 20 Thunderbolt 4 SuperDock features three Thunderbolt 4 ports: one for connection/power to your computer – ideal for Mac and Windows laptop computers with only one or two Thunderbolt ports because you can connect and charge on the same port – plus two for directly connecting Thunderbolt peripheral devices.

‍ The Thunderbolt peripheral ports also support USB4 and USB 3 peripherals, and even provide 15W power each to support the most demanding bus-powered Thunderbolt and USB peripherals. If your computer supports it, you can even connect another display.

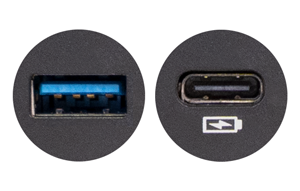

10Gbps and 7.5W Power USB

Sonnet Echo 20 Thunderbolt 4 SuperDock

10Gbps USB-A and USB-C PortsEcho 20 Thunderbolt 4 SuperDock features four USB 3.2 Gen 2 (10Gbps) Type A ports and four USB 3.2 Gen 2 Type-C ports – two each on the front and back – to support super-fast USB NVMe SSDs at up to full speed. And unlike some other docks, Echo 20 doesn’t skimp on power either – each port provides up to 7.5W to ensure that drives with higher peak power requirements can mount and operate without fail. An added benefit for the USB-C ports is they support the Type-C Charging spec, enabling the dock to charge devices even when the computer is off, sleeping, or disconnected.

Thunderbolt Certified

Sonnet Echo 20 Thunderbolt 4 SuperDock

Thunderbolt Certified for Mac, Windows, Chromebook, and iPad ProEcho 20 Thunderbolt 4 SuperDock is certified for use with Apple M series Macs; Thunderbolt 3 Intel Macs; Thunderbolt 4 or USB4 Windows computers; Thunderbolt 3 Windows computers with an Intel 8th Gen (2018) or newer CPU; Thunderbolt 4/USB4 Chromebook; and M series iPad Pro.
