Sonnet - 'DuoModo Echo III Module'
Creative Modular Expansion

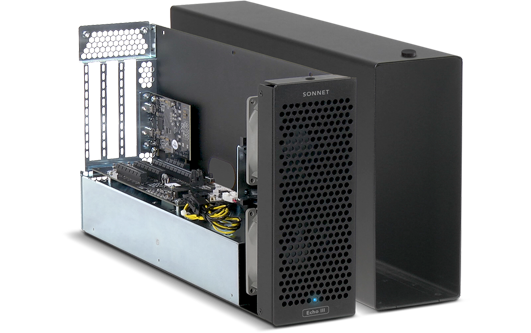

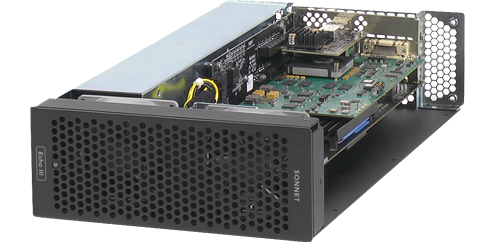

3-slot Thunderbolt to PCIe Card Expansion ModuleThe DuoModo™ Echo™ III Module connects up to three PCIe cards to computers without card slots. The module supports three full-height, full-length Thunderbolt™-compatible non-GPU PCIe cards; 400W of power for the most demanding of PCIe cards, including qualification from Avid for Pro Tools | HDX PCIe cards; features quiet, dual temperature-controlled Noctua fans rated at 17 dbA; and connects through super fast 40Gbps Thunderbolt interface.
The DuoModo Echo III Module is the same as the module used in Sonnet’s Echo III Desktop and Echo III Rackmount Thunderbolt to PCIe card expansion systems.
2750MBs PCIe Bandwidth
The Thunderbolt 3 LinkPlugged into one of your computer’s Thunderbolt 3 ports, the DuoModo Echo III system enables you to connect professional PCIe cards (three full-height, single-width cards, or one double-width card plus one single-width card).
Large PCIe Card Compatibility
Video
Audio
SAS/SATA
Networking
SSD
Supports every Thunderbolt 3 compatible, non-gpu PCIE Card
DuoModo Echo III supports every Thunderbolt 3 compatible, non-GPU PCIe 1.1/2.0/3.0 card available including video capture and transcoding; audio DSP; 6Gb or 12Gb SAS or SATA host bus adapter; 10Gb, 25Gb or Ethernet; SSD storage; and other specialty types to your system.
Do you have a card in mind but aren’t sure it’s compatible? We’ve put together a compatibility list that identifies cards conforming to Thunderbolt technology requirements, and organized by fit and power compatibility with specific expansion systems.
Manufacturer List of Supported PCIe Cards
Avid Pro Tools Qualified
Ready for up to three Pro Tools | HDX PCIe Cards – no extra parts requiredAt the flick of a switch, the Avid qualified DuoModo Echo III system is instantly optimized to support up to three Pro Tools | HDX PCIe cards, with no extra parts necessary! This chassis has been tested and is qualified by Avid Audio group for use with Avid Pro Tools HD 2020 software, and Avid Pro Tools HDX and HD Native systems.
*Avid Pro Tools | HDX cards sold separately
Ready for Future Expansion
Adds Connectivity & CapabilitiesConnects up to three high-performance non-GPU PCIe cards to your computer lacking expansion slots via a Thunderbolt 3 cable.
Broad PCIe Card CompatibilityEvery Thunderbolt 3 compatible, non-GPU card supported regardless of length or height.
Pro Tools | HDX CompatibleHDX compatibility mode enables use of up to three Pro Tools | HDX PCIe cards with no additional parts needed.
Three PCIe 3.0 SlotsOne x16 plus two x8 slots support three full-height, single-width cards, or one double-width card plus one single-width card.
Pro PowerIntegrated 400W power supply with 75W auxiliary power. Saves energy by powering on/off automatically with the computer.
Remarkably QuietDual temperature-controlled, variable-speed Noctua fans rated at 17dBA automatically and quietly cool the cards.
40Gbps Thunderbolt 3 InterfaceOffers 2750 MB/s of PCIe bandwidth for the installed cards.
Two Thunderbolt 3 PortsOne port connects to computer; second port supports daisy-chaining of up to five additional Thunderbolt peripheral devices.
400W Power Supply
Three PCIe 3.0 Slots Plus Power to SpareThe DuoModo Echo III features one x16 and two x8 PCIe 3.0 slots(1), enabling it to support a wide variety of cards at the same time. To support really power-hungry cards, it integrates a universal 400W power supply and includes a 75W auxiliary power connector for non-GPU cards that require extra power, including the Avid Pro Tools | HDX. Designed without a power switch, the Echo III powers on and off automatically with the connected computer, saving energy in the long run. With no power switch, you can’t forget to turn off the system!
Ultra-Quiet, Dual Fan Cooling Solution
Dual Fans, Ultra-quiet OperationFeaturing dual Noctua fans, the DuoModo Echo III is designed to deliver ultra-quiet operation so that it can be comfortably used in noise-sensitive environments. Rated at 17.1dBA—below the 20dBA ceiling prescribed for use in recording and broadcast studios—the fans spread their noise spectrum to minimize any single frequency’s impact. To further ensure negligible noise levels, the fans are temperature-controlled, automatically speeding up and slowing down smoothly as needed, and the enclosure is engineered to optimize airflow over the installed cards to effectively and efficiently cool the system.
Included Cable & Locking Mechanism
Sonnet Thunderbolt 3 Cable & ThunderLok 3Sonnet includes a 0.7-meter Thunderbolt 3 (40Gbps) cable that transfers data at Thunderbolt 3’s full 2750 MB/s PCIe bandwidth. In addition, Sonnet provides a ThunderLok 3 Thunderbolt connector retainer clip(2) that prevents accidental cable disconnections—just slide it over one end of the cable, and then plug in the connector and secure it to the chassis by turning a thumbscrew. Because of its unique design, ThunderLok remains on the cable so it won’t get lost when not in use.
ThunderLok AdvantageSonnet Thunderbolt expansion systems are designed with Thunderbolt ports that include a threaded mounting holes for securing Sonnet's ThunderLok retainer clips that prevent accidental cable disconnections.
Fastest External Interface AvailableThe DuoModo Echo III features a 40Gbps Thunderbolt 3 (USB-C®) interface that delivers up to 2750 MB/s of PCIe bandwidth, enabling it to support 4K video capture and processing cards at high frame rates, multiple audio DSPs, and 25GbE and dual-port 10GbE network cards at full performance.
Backward Compatible with Older MacsNo Thunderbolt 3? No problem—the DuoModo Echo III is also compatible with Macs with Thunderbolt 2 ports when used with the bi-directional Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter and a Thunderbolt cable (both sold separately).
Compatible with macOS 10.12.6+ and macOS BigSur, Windows 10 and Linux Kernal 5.0+
