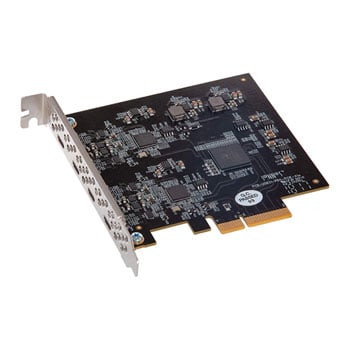

Sonnet Allegro USB-C 4-port PCIe Card

Scan code: LN107913 Manufacturer code: USB3C-4PM-E
£144.49Item currently awaiting an ETA
Pre order
From £12.04 / month (APR 0%)
Monthly Payment: £12.04
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £144.49
Total inc. interest: £144.49
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

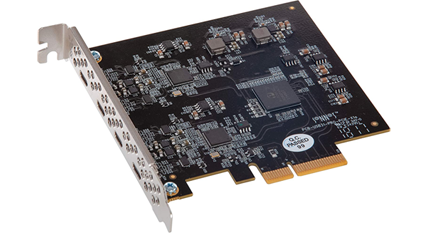

Sonnet - 'Allegro USB-C 4-Port PCIE'

Sonnet - Allegro

Powerful USB 3.2 Gen 2 Performance Equipped with SSDs, the fastest USB 3.2 Gen 2 drives you can buy today are capable of 800 MB/s data transfers—many are bus-powered, too. But, most desktop computers (even new models) include generations-old USB interfaces that will throttle that performance and may not offer adequate power to allow bus-powered drives to operate.

Break through the bottleneck—install Sonnet’s Allegro™ USB-C® 4-Port PCIe(1) card in your Mac Pro®, Windows® PC, or Linux®(2) computer with PCIe slots; or Thunderbolt™ to PCIe card expansion system to support your fast USB drives at maximum performance.

at a glance • Four SuperSpeed USB-C 10Gbps Ports
• Powerful Performance with Dual USB 3.2 Gen 2 Controllers
• Powered Ports
• Broad USB Device Support & Compatibility
• Add USB 3.2 Gen 2 to Thunderbolt Expansion Systems
• Supports Hot-Swappable Device Connection

Two Controllers, Four Ports

back

2x faster than USB 3.0 and USB 3.1Featuring two 10Gbps USB 3.2 Gen 2 controllers and four USB-C ports, the Allegro PCIe card supports data transfers at up to twice as fast as USB 3.0 and USB 3.1 Gen 1 ports are capable.

With two controllers onboard, the Allegro card speeds data transfers between connected drives, and enables your computer to load and off-load data more quickly.

Speed and Power

4K Recording

simultaneous 300 MB/s transfersUnlike other 4-port USB cards (simple hubs that split a single USB controller’s bandwidth between all four ports), Sonnet’s Allegro PCIe card supports data transfers from a single USB 3.2 Gen 2 SSD RAID device at up to 800 MB/s— compared to using a USB 3.1 Gen 1 or USB 3.0 adapter card, transfers complete in half the time!

Exploiting its dual controllers design, it’s possible to simultaneously transfer data to two connected drives at up to 660 MB/s each. With four drives connected, the four ports support simultaneous 300 MB/s transfers!

No Auxiliary Power Required

back

installs on any compatible systemOrdinary USB-C cards need a separate power plug connection. Sonnet’s Allegro gets the power required to operate connected drives from the slot it’s installed in.

This enables you to install the Sonnet card in any compatible computer or Thunderbolt expansion system regardless of it having extra power connectors available.

Independent, Per-Port Power Regulation

back

prevents auto-disconnectsOrdinary USB-C cards can deliver poor power regulation, allowing a connected drive to be forced off (auto-disconnected) when an additional drive is connected or disconnected. The Allegro card protects each port from power glitches on adjacent ports, preventing auto-disconnects of already-connected drives.

Resettable FusesUnlike ordinary USB-C cards, the Allegro card features a resettable fuse on each port, protecting both card and computer should a cable or peripheral fail. Resetting a tripped fuse is simple—just shut down and restart your computer.

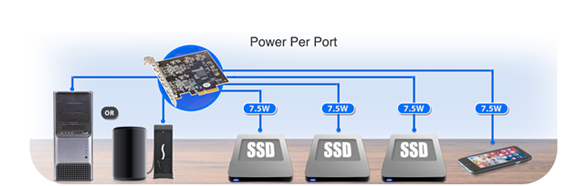

Sonnet Port Power Advantages

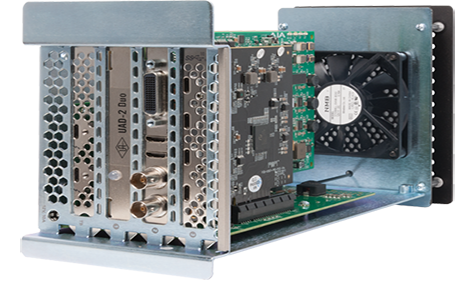

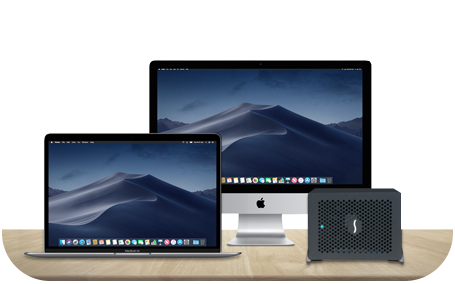

Add USB 3.2 to Your Thunderbolt MacGot a Mac with a Thunderbolt connection, but no PCIe slot? The Allegro is ideal for use in Sonnet’s Thunderbolt 2 and Thunderbolt 3 to PCIe card expansion systems, including Echo Express™ and xMac™ desktop and rackmount systems.

Perfect for the Extra Slot Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function.

By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning. The alloy protective layer that is shown it the image above, shows that the resistor is protected.

Broad Device SupportThe Allegro PCIe card features hot-pluggable and hot-swappable device connection support with automatic device configuration, and works with all USB-IF compliant USB peripherals. This full-height Sonnet card installs easily into any PCIe x4 (mechanical) or larger slot.

The Tech Spec

Features Specification
Video Input Connectors 1 x HDMI v1.4a 1 x BNC 3G-SDI
Audio Input 1 x 1/8" / 3.5 mm Analog Embedded HDMI
Warranty 2 Years
Form Factor PCIe computer card
Bus Interface PCI Express 2.0 x4
Peripherals Supported Industry standard USB 3.2 Gen 1, Gen 2 & 2x2; USB 3.1 Gen 1 & 2; USB 3.0, 2.0 and 1.1 Thunderbolt 3-only peripherals are NOT supported
Bus Powered Peripherals Supported HD, SSD, SSD RAID 1.5A per port advertised using USB Type-C Charging 7.5W per port for operation or charging
Cables Supported USB-C 10Gbps USB-C 5Gbps (not recommended) Thunderbolt 3 40Gbps (0.5-, 0.7-, 0.8-meter cables only) Thunderbolt 3 20Gbps
Chipset 2x ASMedia 3142
RoHS Compliant Yes
Package Contents Allegro USB-C 4-Port PCIe adapter card
