Scan code: LN71607 Manufacturer code: SON-USB3-4PME

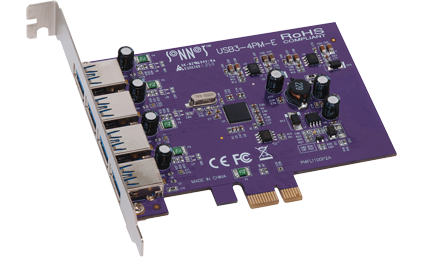

Allegro 4-port USB 3.0 PCIe Adaptor by Sonnet

Sonnet Allegro PCIe USB 3.0 4-Port Adaptor Card, PCIe 2.0, 10W Per Port

Thumbnail 1 : Allegro 4-port USB 3.0 PCIe Adaptor by Sonnet Thumbnail 2 : Allegro 4-port USB 3.0 PCIe Adaptor by Sonnet Allegro 4-port USB 3.0 PCIe Adaptor by Sonnet : video thumbnail 1
Scan code: LN71607 Manufacturer code: SON-USB3-4PME
£60.72
Free Delivery
Delivery Options
  • By DPD On 22nd May 2018 to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Add Four Powerful SuperSpeed USB Connections to Your Mac Pro® Tower, Windows® PC, or Thunderbolt™-to-PCI Express Card Expansion System
Your computer's USB 2.0 ports are perfectly adequate for connecting mice, keyboards, and printers, but if you need to connect external storage drives, USB 2.0 ports are underpowered in more ways than one—limiting data transfer speeds to around 25–30 MB/s, they can hardly be called “high performance”. Most drives available today include USB 3.0 interfaces and offer significantly better performance than USB 2.0-equipped drives. Though you can connect them to your computer's USB 2.0 ports, their performance would be reduced by as much as 85 percent! Don't settle for slow performance—install a Sonnet Allegro USB 3.0 4-Port card to instantly add four SuperSpeed USB 3.0 ports to your system to take full advantage of today's drives' performance capabilities.

Sonnet specially engineered the Allegro USB 3.0 4-Port card to provide extra power through its ports without the need for you to connect an auxiliary power cable. Delivering up to 10W of power per port, this Sonnet solution supports USB 3.0 bus-powered hard drives, SSDs, DVDs & Blu-ray™ devices without the need to connect an additional AC power adapter. The Allegro USB 3.0 card also supports the USB 3.0 charging specification that enables you to simultaneously charge and sync your iPad®, iPhone®, or other device that supports USB 3.0 charging!

The Allegro USB 3.0 4-Port card features a PCIe 2.0 bus interface to take advantage of your computer's fast expansion card slots. This card installs easily into any PCI Express® (PCIe) slot that supports a full-height card, features hot-pluggable and hot-swappable device connection support with automatic device configuration, and works with all USB-IF compliant USB 3.0 and USB 2.0, peripherals.

Optimized for Thunderbolt

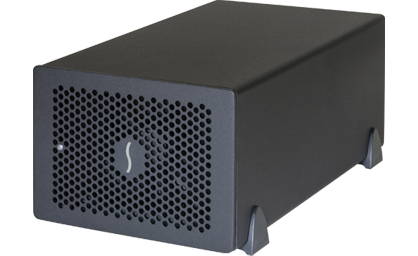

Got a Thunderbolt connection, but no PCIe slot? The Allegro USB 3.0 4-Port card is ideal for use in any Thunderbolt to PCIe card expansion chassis, including one of Sonnet's Echo Express™ or xMac™ Thunderbolt 2-to-PCI Express card expansion systems, offering full performance wherever you install it—now you can add SuperSpeed USB 3.0 charging connections any Mac with a Thunderbolt port. Features • Adds SuperSpeed USB Connectivity.
• Adds four USB 3.0 ports to your Mac Pro with PCIe slots, Windows PC, or Thunderbolt-to-PCIe card expansion chassis; transfers data up to 10x faster than over USB 2.0 connections.
• Super-Powered Ports.
• Supports USB 3.0 bus-powered hard drives, SSDs, DVDs & Blu-ray devices with up to 2.0A per port.
• Charging Ports.
• Supports USB 3.0 charging port handshake and will simultaneously sync and charge iPads and other devices that support USB 3.0 charging at 1.5A per device.
• Broad USB 3.0 Device Support & Compatibility.
• Supports storage, hubs, and other USB-IF compliant USB 3.0 devices; compatible with USB 2.0 devices.
• Supports Hot-Swappable Device Connection.
• Plug in and disconnect peripherals without shutting off your computer.
• Optimized for Thunderbolt.
• Provides maximum performance over Thunderbolt.
• Easy Installation.
• Quick and easy user installation into any available PCIe slot of your computer.

• Mac Compatibility
Mac Pro® (with card slots).
OS X 10.5.8+.
OS X El Capitan compatible.

• Windows Compatibility
PC desktop (with PCIe slots; PCIe 2.0 slots recommended).
Windows® 10, 8, 7
Windows Server 2012, 2008.
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Manufacturer:
SCAN
Customers also bought
Reviews
Sonnet Allegro PCIe USB 3.0 4-Port Adaptor Card, PCIe 2.0, 10W Per Port is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Exactly what was needed Installed in a Mac Pro Early 2009 with OS X El Capitan - works perfectly - beware cheaper USB 3 PCIe cards don't support the newer operating systems, which is why I purchased this one.
