Sonarworks - Calibrated Measurement Microphone
Sonarworks - Calibrated Measurement Microphone, Omnidirectional polar pattern
Email me when the availability or price changes
-
Pay in
3
interest-free payments of
£23.33
- Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Omnidirectional Measurement Microphone

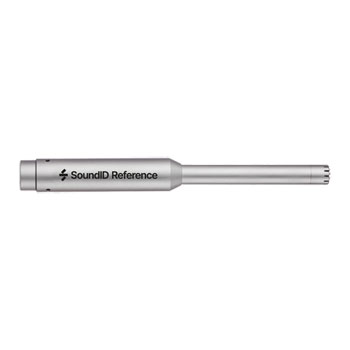

Sonarworks - SoundID Measurement Microphone
Sound-ID Reference Measurement Microphone
with individual calibration profileDesigned for seamless integrated use with Sonarworks SoundID software, the SoundID Reference measurement microphone is a pre-polarised electret-condenser armed with an omnidirectional polar pattern and 106 dB of dynamic range.
Sonarworks SoundID Reference Microphone is tailor made for use in the speaker calibration setup process of Sonarworks' SoundID Reference Studio software package and ensures that any speakers can be fully calibrated in 20 minutes flat.
Once complete, the calibration process imposes a flat frequency response target across all audible bands making any user's mix fully translatable between different studio monitors and even different listening devices.
70dBSNR
20Hz - 20kHzFrequency Response
132dBMax SPL
at a glance
• Omnidirectional polar pattern
• Pre-polarised electret-condenser capsule
• Speaker calibration requires SoundID Reference software
what's included?
• 1x SoundID Reference Measurement Microphone with XLR connection
• Microphone calibration file for 30° off-axis measurements in .swmic format (Sonarworks software native format) to be used with SoundID Reference
• Microphone calibration file for 0° on-axis measurements in .txt format for third-party use
• 21-day trial of SoundID Reference available online
The Tech Spec
| Features | Specification | Frequency Response | 20 Hz - 20 kHz (calibrated) |
|---|---|
| Sensitivity | -37 dB/Pa (14 mV) |
| Self Noise | 24 dB |
| SNR | 70 dB |
| Dynamic Range | 106 dB |
| Max SPL | 132 dB |
