Slidekamera - 'Atlas MOCO'
professional motion control SetThe Slidekamera Atlas MOCO is a versatile slider with 2-axis remote head kit, designed to be used with professional cameras with a max payload of up to 10kg. Consisting of the Altas Modular Slider 2m, Altas Modular Dolly MK2, Altas Stepper Drive, Bullhead Studio, Kairos controller, and PSU 320 the kit provides everything you need to create a professional, modular, motion control system.
What is Included

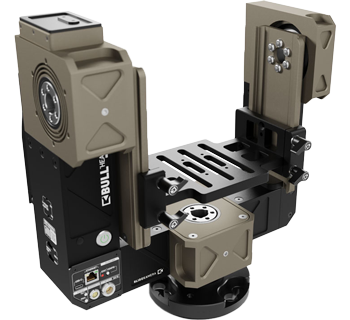

BullHead StudioThe Bullhead Studio is a reinforced and reliable pan-tilt head designed to work in professional studio environments. Featuring strengthened housing and redesigned mechanics, increasing payload capacity, stability, and less prone for vibrations. This is made possible by utilising the heavyweight gearbox previously used only in the panorama axis has now been applied to the tilt axis as well for robust and precise motion.
Atlas Modular SliderThe Atlas modular slider features a unique system of rail sections that can be customized to create tracks of various lengths. It comes with 0.8m and 1.2m sections, with 2m and 3m sections also available, with a maximum recommended length of 12 meters. The modular system can be assembled and disassembled without tools. Each section has adjustable feet for easy leveling on any surface, along with easy tripod mounting as single or dual sections. The side brackets have magnetic bumpers that signal the end of the working range allowing you to focus on capturing the best image.

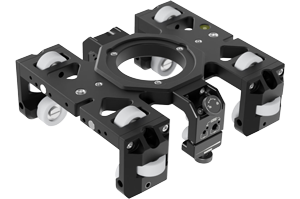

Atlas Modular Dolly MK2The Atlas Modular Dolly MK2 features 12 custom-designed wheels, positioned to allow the cart to freely move, no matter the slider position - horizontal, vertical, diagonal, or even upside down. The cart features a permanent friction brake as well as an adjustable damping brake, 75/100mm aluminium half bowl sockets, distance pins to control the elevation of the head, 3/8" mounting plate, magnetic grips for mounting optional accessories, magnetic bumpers, 3/8" and M10 mounts for various sockets.

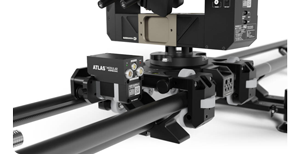

Atlas Stepper DrivesAtlas Stepper Drive is a stepper motor unit that clamps and screws to the slider's side brackets. Featuring a 2m timing belt for a standard 1.2m + 0.8m Atlas set and 5m LEMO cable for operation.

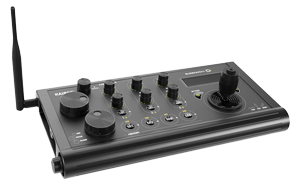

Kairos controllerThe Kairos controller allows for quick and precise control of up to six axes in real-time for standard setups (slider + remote head + lens motors) or custom configurations. With an aluminium housing that keeps the internal components safe and ensures the long and trouble-free operation of the device.
