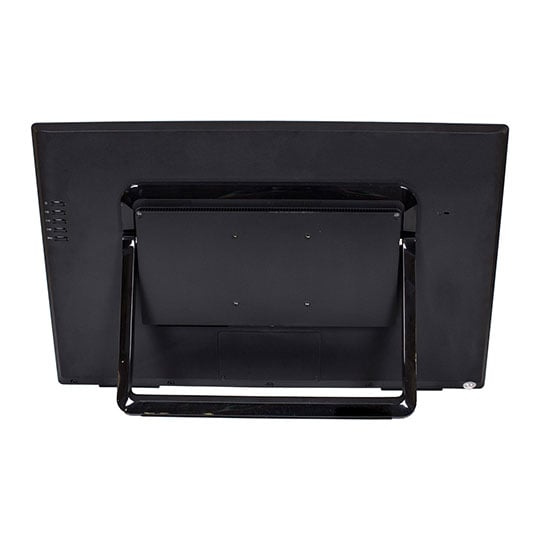

Slate Media Technology RAVEN MTi2 (Education)

Product Overview In the past decade, the technological revolution has transformed audio into a medium that is produced and delivered in the digital domain. Powerful Digital Audio Workstations have transferred the entire recording studio into a virtual environment where all elements of the studio appear conveniently on a computer screen. But what has been lacking with the modern digital studio is the same powerful workflow as what was accomplished on tactile mixing consoles. So back in 2012, Slate Media Technology came up with a solution.

If the entire production studio was on a computer screen, why not turn the actual computer screen INTO a world class control surface? And the RAVEN series of Multi-Touch consoles was born. Soon the RAVEN would be the preferred control surfaces of major studios, engineers, producers, artists, and educational institutions like Mark Needham, Terry Lewis, Will.i.am, Jimmy Douglas, Full Sail University, and SAE.

Now in 2015, we are proud to offer the newest addition to the RAVEN series, the MTi2. The MTi2 has all of the powerful features of its predecessors, but at a cost that is the same as most regular high end 27" computer monitors!

The RAVEN MTi2 is a state of the art 27” Multi-Touch Production Console featuring a state of the art multi-touch panel and the powerful new RAVEN 3.0 Control Software. Using the RAVEN MTi2, users have access to multi-touch faders, pans, sends, and tweak plugins with their fingers as if they were real hardware. The RAVEN 3.0 Control Software also features a user-customizable multifunction TOOLBAR and the award winning BATCH COMMAND SYSTEM, a powerful automated task application that will save audio engineers hours per day by cutting out tedious technical tasks.

RAVEN 3.0
With the introduction of RAVEN 3.0, we have taken the already game-changing RAVEN software to a new level by adding compatibility with EVERY MAJOR DAW.

RAVEN 3.0 now adds customised multi-touch control of Ableton Live, Cubase/Nuendo, Digital Performer, Logic Pro X, Protools 10-12, and Studio One V3 on Mac as well as our first PC compatibility for Protools 10-12. The 3.0 update demonstrates exactly why the RAVEN is so groundbreaking: through real time interaction we have the ability to code our way to any fix or enhancement, and RAVEN has continued to evolve.

The RAVEN Toolbar
In Toolbar mode, the RAVEN Toolbar is anchored directly in front of your hands at the base of the touch display. Your DAW controls are where you want them: Transport, Edit/Mix window selector – convenient tools for tracking too, like Record Looping, Click, Create Group, and Undo. Use intuitive multi-touch gestures on the RAVEN NAVPAD to perform Scrub/Shuttle, Waveform Zoom, Track Zoom, and Track Banking, and RAVEN Batch Commands. Best of all, because the RAVEN Toolbar is virtual, it's user-customizable – put the controls you want where you want them.

The Batch Command System
The RAVEN Batch Command System is a true revolution in control. The BCS is a series of preset and customizable buttons that can execute up to 1,000 key commands and mouse clicks automatically. With just one button, BCS allows you to create instant headphone sends, name tracks, put entire drum tracks on the grid, export stems, and so much more! The BCS comes pre-programmed with 100 preset batch commands in every DAW we support, with layouts for Music, Mastering, Post Production and more. Record your own mouse click automation or program user commands with our QUICKLIST, which features hundreds of predefined DAW operations. Just touch and hold on a Batch Command button to edit, and you'll have access to almost limitless possibilities. With the Batch Command system you'll get it all done faster and smarter.

Slate Remote
Slate Remote revolutionises your workflow in ways you must experience to believe. Slate Remote is a free app for iOS users, available at the app store to anyone with a Raven MTi2. Slate Remote automatically synchronizes with your Raven session via wifi network and gives you access to your custom batch Commands, allowing it to remotely perform time-saving tasks for you from the palm of your hand.

FADERS 3.0
FADERS 3.0 are our newest multi-touch faders that allow the most precise control of your DAW faders. By integrating multi-touch 100mm virtual faders directly into each DAW, the engineer has seamless control over mix levels and automation.

The new 3.0 algorithm gives the faders a virtual 'feel' that allows an intuitive feeling action that is comfortable and even fun to use. And for the most critical automation, FINE FADER mode can quadruple the resolution of the faders so you can get even the most minute moves down in the first pass with ease and perfection.

The RAVEN MTi2 is the most affordable way to turn your DAW into a world class control surface that will take your workflow into the 21st Century. Features Screen
• 27", LED backlit IPS
• 10 point multi-touch display
• HD resolution: 1920 x 1080

Compatible DAWs:
• Pro Tools 10, 11, 12 & 2018 - Mac & Windows
• Logic Pro X - Mac Only
• Cubase 8 , 9 & 9.5 - Mac & Windows
• Nuendo 7 & 8 - Mac & Windows
• Digital Performer 8 & 9 - Mac Only
• Ableton Live 9 & 10 - Mac Only
• Studio One 3 - Mac Only

PLEASE NOTE: RAVEN Hardware comes with your choice of one supported DAW. Additional DAW support licenses can be purchased for a nominal fee from the Slate MT Store.

Required for Use:
• Computer with USB 2.0 connection
• Standard VGA cable (included) or HDMI cable (not included)
• Uses industry-standard V-control pro
• No Ethernet or MIDI Required
• iLok 2 or 3 Dongle (not included)

Minimum Mac Mini/MacBook Pro Requirements:
• i5 Processor or Greater
• Intel HD 4000 Graphics Card (512MB VRAM)
• 4GB RAM
• Minimum Mac Pro Requirements:
• OS X 10.7 (Lion), 10.8 (Mountain Lion), 10.9 (Mavericks)
• 2.5Ghz Xeon Processor
• Intel HD 4000 Graphics Card (512MB VRAM)
• 4GB RAM
• Note: Quality of your graphics card is very critical to the quality of your RAVEN's performance.

Power Supply:
• The Raven MTi2 comes with an outboard 12 volt/3.3 amp power supply.
• The power supply accepts 110v-220v AC input.
• 2.1mm x 5.5mm barrel connector, center pin positive.
