Scan code: LN39769 Manufacturer code: SST-RV03B-WA

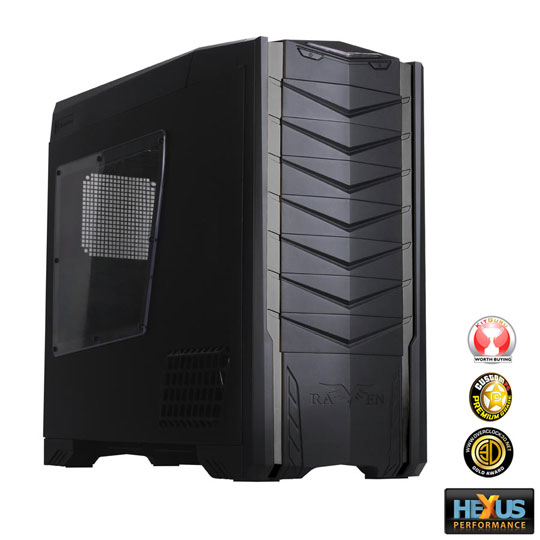

Silverstone Raven RV03B-WA Full Tower Case

Silverstone Raven RV03B-WA Black Full Tower with USB 3.0 with Side Window w/o PSU

Thumbnail 1 : Silverstone Raven RV03B-WA Full Tower Case Thumbnail 2 : Silverstone Raven RV03B-WA Full Tower Case Thumbnail 3 : Silverstone Raven RV03B-WA Full Tower Case Thumbnail 4 : Silverstone Raven RV03B-WA Full Tower Case
Scan code: LN39769 Manufacturer code: SST-RV03B-WA
3xs Approved
£111.98Item currently awaiting an ETA
Pre order
From £10.06 / month (APR 14.9%)
Monthly Payment: £19.44
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £111.98
Total inc. interest: £116.57
Monthly Payment: £10.06
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £111.98
Total inc. interest: £120.60
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £9.58

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview The RAVEN team’s continued push to redefine and perfect the enthusiast tower chassis has resulted in yet another benchmark in the RAVEN RV03. With world-class cooling performance from the previous RAVEN chassis models retained by the included 180mm Air Penetrator fans, a rethinking of the interior layout enabled dramatic reduction in overall depth of the chassis compared to RAVEN RV02 while still matching RAVEN RV01’s ability to accommodate Extended ATX motherboard and graphics cards longer than 13 inches.

Cable management was also improved with a new 5cm thick hard drive compartment to allow nearly all cables to be connected behind the motherboard tray with ease. An unconventional power supply compartment located in the lower front part of the chassis further add to facilitate cable routing so anyone can assemble a pristine looking system with maximum airflow efficiency.

Complementing the finely tuned and engineered interior, the RV03 has Champaign colored trimmings adorning an exterior with aggressive lines yet reserved profile.

The stand out styling also fully utilizes the chassis’s powerful cooling ability to full effect by a set of smartly designed, dual-purpose front bezels that helps to keep the RV03 looking sharp and uniform whether the user is setting up for maximum air cooling or for a silencing build.

As a trend-setter and a computer chassis engineering showcase, the RAVEN RV03 has few equals. However, its advanced features are equally accessible that anyone from experienced enthusiasts to novice users will find easy to appreciate and utilize, making RV03 the most appealing RAVEN chassis yet!
Features • Revolutionary 90 degree motherboard mounting from RAVEN RV01
• Includes two Air Penetrator 180mm fans for superb performance and quietness
• Support up to seven 120mm fans for exceptional cooling flexibility
• Motherboard back plate opening behind CPU area for quick cooler assembly
• Supports Extended ATX motherboard
• Supports eight expansion slots and graphics cards of any length
• Mandatory cable management design for clean looking system on every build
• Hard drive compartment with independent cooling zone
• Upscale and aggressive styling with dual-purpose front panel bezels
Specifications
Core Chassis Specifications
Case Edition Raven Black/Grey + Window
Case Form Factor Full Tower
Motherboard Form Factor
  • ATX
  • E-ATX
  • MicroATX
  • SSI CEB
  • SSI EEB
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone Out
  • 1 x Mic In
  • 2 x USB 3.0
Drive Bays
  • 2 x 2.5" Internal
  • 4 x 3.5" Internal
  • 7 x 5.25" External
Standard Expansion Slots 8
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 7 x 120mm
  • 2 x 180mm
Fans Included
  • 1 x 120mm
  • 2 x 180mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 163 mm
Max GPU Card Length 344 mm
Max GPU Card Width
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials Plastic / Steel
Dimensions 235 x 522 x 570 (WxHxD mm)
Weight 11.4 kg (Approx)
Please Note
Additional Information
Scan Code LN39769
Model Number SST-RV03B-WA
GTIN 4710713967823
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Loading Please Wait

Please wait . . .

TekSpek Guides
Computer Cases
Computer Cases
Date Issued: 6th Jul 2011

There's more choice than ever before, but which computer case is right for you and which features should you look out for?

Read More

Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Watercooling
Watercooling
Date Issued: 19th Jun 2008

Watercooling for the PC has been around for years in some form or another, for at least as long as Scan have been in business, with basic physics defining why you want to use it. That means for air cooling, to cope with increasing temperature in the heatsink you need to move the air across it faster. That is why thermostatically controlled fans in your PC will turn faster the hotter something gets.

Read More

Reviews
Silverstone Raven RV03B-WA Black Full Tower with USB 3.0 with Side Window w/o PSU is rated 4.3 out of 5 by 4.
Rated 5 out of 5 by from Excellent Air cooled case This is a huge beast of a case with some nice quality features! Big and roomy plus fantastic fans and novel mobo positioning (rotated by 90 degrees) ensures excellent air cooling and a nice easy build. Great cable routing options and plenty of room behind the mobo tray ensures a nice tidy build with almost all wiring hidden away. It is solidly built and has some nice touches like magnetic dust filters and fan speed controls. The only negative is that the front mounted HDD / SSD cages are a bit of a pain to make use of. Otherwise - top notch!
Date published: 2015-03-06
Rated 3 out of 5 by from strange design This product is a strange design, all the board ports come out of the top of the case unlike normally out the back. Its supposed to have good cable management but found it hard fitting everything in with a modular psu. The case does have plenty of room for expansion and cooling.
Date published: 2014-08-05
Rated 4 out of 5 by from A brilliant air cooling case While not as aesthetically pleasing as other cases, it is brilliant at cooling my overclokced 2500K and GTX 660ti, and feels like you could fit a small mansion behind the motherboard and right side panel, this case provides excellent value for money, is extremely sturdy (although plastic is used a lot), and the rotated motherboard design is very convenient if you find yourself reaching blindly around the back often to plug in a different monitor or device.
Date published: 2013-11-11
Rated 5 out of 5 by from Supreme Greatness Best case ever, period. The case fans are the best too. Cooling is amazing and build quality is A+
Date published: 2013-10-28
