Scan code: LN40890 Manufacturer code: SST-RV02B-EW USB 3.0

Silverstone Raven Full Tower Performance PC Case

Silverstone Raven RV02B-EW Matte Black Full Tower Case with Side Window USB 3.0 3x180mm Quiet Fans w/o PSU

Thumbnail 1 : Silverstone Raven Full Tower Performance PC Case Thumbnail 2 : Silverstone Raven Full Tower Performance PC Case Thumbnail 3 : Silverstone Raven Full Tower Performance PC Case Thumbnail 4 : Silverstone Raven Full Tower Performance PC Case
Scan code: LN40890 Manufacturer code: SST-RV02B-EW USB 3.0
3xs Approved
£139.99
From £12.57 / month (APR 14.9%)
Monthly Payment: £24.30
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £139.99
Total inc. interest: £145.76
Monthly Payment: £12.57
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £139.99
Total inc. interest: £150.80
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 20th Jun 2019 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview The RAVEN RV02-E is an evolution of the original RV02 case that aims to provide even more accessible performance and utility.

• Revolutionary 90 degree motherboard mounting from RAVEN RV01
• Three 180mm Air Penetrator fans for unprecedented positive pressure and stack effect cooling
• Supports liquid cooling radiator mounting
• Motherboard back plate opening behind CPU area for quick cooler assembly
• Supports 11” wide ATX motherboard

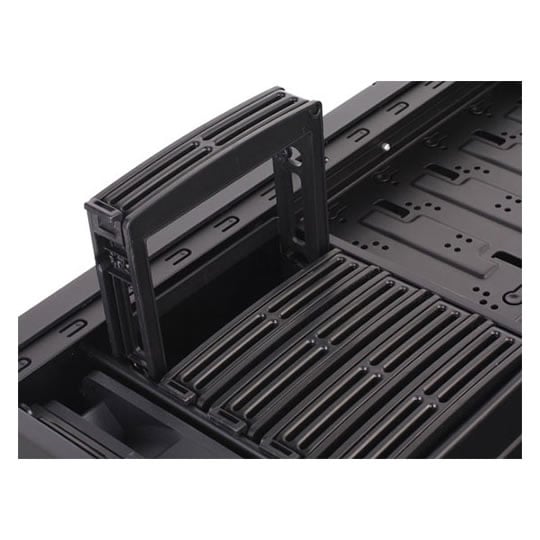

• Highly flexible drive storage options with hot-swappable SATA adapter

Making a debut for the first time in a tower chassis, SilverStone’s own “Air Penetrator” 180mm fans are included in the RV02-E for improved air intake efficiency and flexibility.

The fan frame of the Air Penetrator fans provide enough fan blade protection and increased air focusing ability that they no longer require installation of fan grille.

Hot-swappable hard drive cage was also implemented to facilitate installation at the expense of losing the 8th expansion slot. However, all other features are intact such as fully filtered intake system, 90 degree motherboard mounting, all black interior, liquid cooling support, and fan speed switches.

For enthusiasts not looking to use more than two or three graphics cards, the RV02-E should be a great alternative to the fantastic original RV02.
Features SST-RV02B-EW-USB3.0 (black + window)
Materialreinforced plastic outer shell, 0.8mm Steel body.
Color Matte black
Motherboard
SSI-CEB, ATX (maximum 12” x 11”) , Micro-ATX
Drive bay
External
5.25" x 5
Internal
3.5"/2.5" x 5, 2.5" x 1
Cooling system
Top
1 x 120mm exhaust fan, 950rpm, 18dBA
Bottom
3 x 180mm intake fan 700/1200rpm, 18/34dBA
Radiator support
Front
N/A
Rear
N/A
Top
120mm x 1
Bottom
120mm x 3
Expansion slot
7
Front I/O port
USB 2.0 x 2 (SST-RV02B-E, SST-RV02B-EW only)
USB 3.0 x 2 (SST-RV02B-EW-USB3.0 only)
audio x 1
MIC x 1
Power supply
1 x optional standard PS2(ATX)
Expansion card
Compatible up to 12.2" (309mm) long, width restriction-6.85" (173mm)
Limitation of CPU cooler
169mm
Limitation of VGA card
12" (remove Fan grill if you want install up to 12.2")
Limitation of PSU
Unlimited
Net weight
12.6kg (RV02B-E)
12.4kg (RV02B-E-W)
Dimension 212mm (W) x 503mm (H) x 643mm (D), 68.6
8.35" (W) x 19.8" (H) x 25.31" (D), 68.6
Extra One CP05 included for single hot-swappable SATA hard drive, additional CP05 can be purchased separately
Specifications
Core Chassis Specifications
Case Edition Raven RV02B-W - Black + Window
Case Form Factor Full Tower
Motherboard Form Factor
  • ATX
  • MicroATX
  • SSI CEB
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone Out
  • 1 x Mic In
  • 2 x USB 2.0
  • 2 x USB 3.0
Drive Bays
  • 1 x 2.5" Internal
  • 5 x 2.5"/ 3.5" Internal
  • 5 x 5.25" External
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 1 x 120mm
  • 3 x 180mm
Fans Included
  • 1 x 120mm
  • 3 x 180mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 169 mm
Max GPU Card Length 309 mm
Max GPU Card Width
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials Plastic / Steel
Dimensions 212 x 503 x 643 (WxHxD mm)
Weight 12.5 kg (Approx)
Please Note
Additional Information
Scan Code LN40890
Model Number SST-RV02B-EW USB 3.0
GTIN 4710713968455
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Loading Please Wait

Please wait . . .

TekSpek Guides
Computer Cases
Computer Cases
Date Issued: 6th Jul 2011

There's more choice than ever before, but which computer case is right for you and which features should you look out for?

Read More

Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Watercooling
Watercooling
Date Issued: 19th Jun 2008

Watercooling for the PC has been around for years in some form or another, for at least as long as Scan have been in business, with basic physics defining why you want to use it. That means for air cooling, to cope with increasing temperature in the heatsink you need to move the air across it faster. That is why thermostatically controlled fans in your PC will turn faster the hotter something gets.

Read More

Reviews
Silverstone Raven RV02B-EW Matte Black Full Tower Case with Side Window USB 3.0 3x180mm Quiet Fans w/o PSU is rated 4.3 out of 5 by 3.
Rated 4 out of 5 by from Great case with good air flow The raven R02 is a fantastic case with almost no flaws. It provides great air flow and room for easy cable management. The only negative I can honestly say is the three fans at the bottom of the case are quite difficult to reach when cleaning. Apart from this I am very happy with it.
Date published: 2015-06-06
Rated 4 out of 5 by from Good, but prefer the FT02 The rotated motherboard concept is excellent and the layout is ideal for cooling. Well made and no sharp edges. It would be 5/5 but for the fact that the FT02 Fortress is better finished and not much more money. The RV02 has plastic front panels and top cover, whereas the Fortress has an aluminium front panel and a mostly metal mesh top cover. The FT02 Fortress also has foam sound absorbing panels whereas the RV02 does not. Looks are a personal matter, but having seen and used both side by side I'd buy the FT02 again in preference to the RV02.
Date published: 2014-04-07
Rated 5 out of 5 by from Cool, quiet, easy to build Pros: * Easy to build * Room for long GPU and large CPU cooler * Cool & very quiet even with higher-end CPU & GPU * Five external 5.25" bays (great for SATA hot-swap bay) * Good cable management * Well-spaced top-front USB 3.0 ports with proper M/B header cable ...and many more! Cons: (all minor IMHO) * Could be a little larger gap behind M/B for cables * Couple of minor cable-crowding issues if the case were heavily loaded with devices (3+ external and 3+ internal drives) * If the external 5.25" bay covers are pushed in accidentally the front fascia must be removed to pop them back out If you need a quiet well designed case that will take almost any components you care to fit for less than £150 you will be hard pressed to beat this. Looks great too!
Date published: 2013-08-22
