Scan code: LN122351 Manufacturer code: SPC306

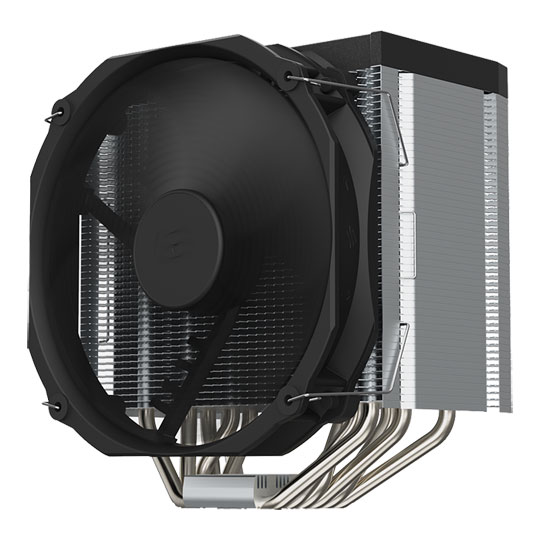

SilentiumPC Fortis 5 CPU Cooler Intel/AMD

SilentiumPC Fortis 5 SPC306 CPU Cooler, 140mm FDB Fan, 9 Blade, PWM, Direct Touch Heatpipes, 1400rpm, Intel/AMD

Thumbnail 1 : SilentiumPC Fortis 5 CPU Cooler Intel/AMD Thumbnail 2 : SilentiumPC Fortis 5 CPU Cooler Intel/AMD Thumbnail 3 : SilentiumPC Fortis 5 CPU Cooler Intel/AMD Thumbnail 4 : SilentiumPC Fortis 5 CPU Cooler Intel/AMD
Scan code: LN122351 Manufacturer code: SPC306
£49.99
Order now and get it tomorrow, Wed 19th Jan
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 19th Jan to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

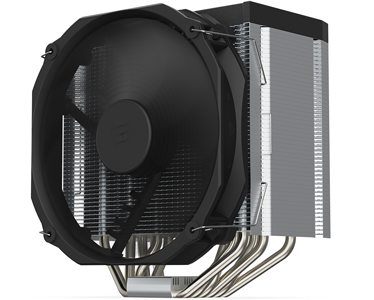

Fortis 5 Single Tower CPU Air-Cooler from SilentiumPC

Fortis 5 from SilentiumPC

Developed through Collaboration The Fortis 5 is a new SilentiumPC CPU cooling solution, developed in collaboration with Synergy Cooling. The distinguishing features include a completely new two-axis asymmetrical heatsink with densely packed fins, an optimised base with six heat pipes, and a completely new 140mm Fluctus fan optimised for static pressure, high airflow, and quiet operation. In terms of performance, the Fortis 5 can can easily compete with larger twin-tower coolers, whilst at the same time surpassing the best single-tower systems in cooling efficiency and psychoacoustic properties. The Fortis 5 series is the next step in a revolutionary design developed in collaboration with Synergy Cooling, and another representative of the new generation of SilentiumPC cooling solutions.

Intel LGA1700, 2066, 2011-3, 2011, 1200, 115x

AMD SocketsAM4, AM3+, AM2+, FM2+, FM1

220WTDP

140mmFan Diameter

High-Performance Cooling

back

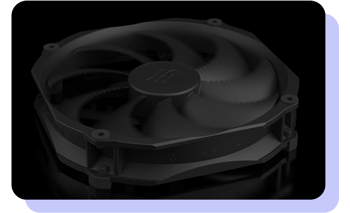

long life Fluctus 140 fansFluctus fans work best on dense heatsinks, where airflow is restricted. Uniquely profiled fan blades create high static pressure, whilst the new high endurance fluid bearing ensures smooth, low noise operation with 100,000hrs MTBF.

A Plethora of Cooling Features

Fan-Stop technologyThe Fluctus fans stops when receiving low power-usage signals, and also have an automatic start function. By adjusting the fan speed curve, an ultra-quiet semi-passive cooling system can be achieved.

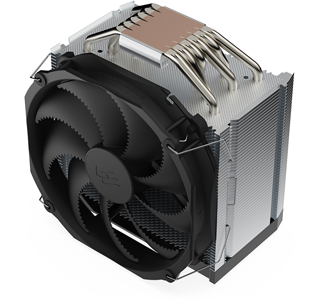

Direct-Touch HeatpipesSix heat pipes are in direct contact with the processor, further improving heat dissipation.

4K Recording

Serrated Fan BladesThe edges of the fan blades have a wavy profile. This reduces the occurrence of bothersome acoustic properties and the overall perceived noise levels of the fan.

Asymmetrical HeatsinkThe heatsink has an asymmetrical shape with specially contoured-edged fins. The Fortis 5 is optimized for unidirectional airflow: the indicated direction ensures smooth operation and the most efficient performance.

Specifications
Cooler Specifications
Edition Fortis 5
Cooler Form Factor Single Tower
Heatpipes 6
Cooler Features
  • 2 Sets of Fan Clips
  • Direct Contact Heatpipes
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 1200
  • 1366
  • 1700
  • 2011
  • 2011-3
  • 2066
  • 775
  • AM2+
  • AM3+
  • AM4
  • FM1
  • FM2+
Max. TDP 220W
Fan Specifications
Included Fan Configuration 1 x 140mm
Fan Edition
PWM Fan Yes
Fan Bearing Type Fluid Dynamic Bearing
Fan Colour Black
LED Lighting
Fan/Pump Connectors 1 x 4-pin
Max. Fan Speed 1400 rpm
Max. Fan Airflow
Max. Air Pressure
Max. Sound Level
Materials
Cooler Materials
Included TIM (Thermal Interface Material) Included
Dimensions & Weight
Heatsink/Radiator Dimensions
Total Dimensions 159×144×107 mm (WxHxD)
Weight 766 g
Additional Information
Scan Code LN122351
Model Number SPC306
GTIN 5903018662893
