End Of Life

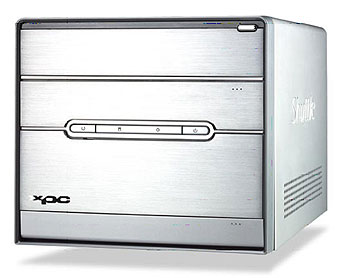

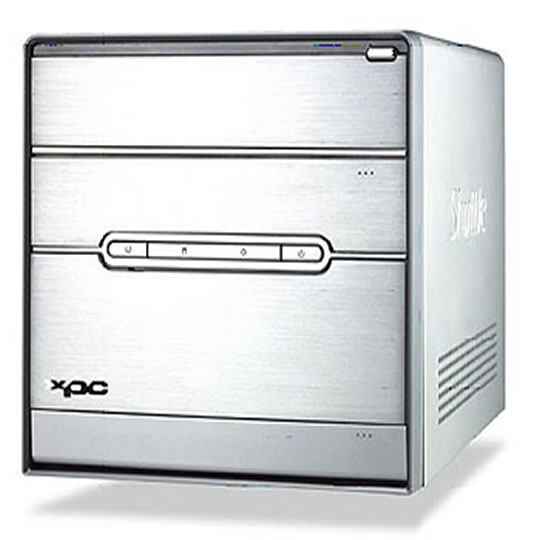

Shuttle SB83G5 P4 S775 XPC Barebone i915G DDR400 SATA Raid GbE Lan USB2/1394 5.1Ch Audio

Scan code: LN8812 Manufacturer code: SB83G5

End Of Life

Shuttle SB83G5 P4 S775 XPC Barebone i915G DDR400 SATA Raid GbE Lan USB2/1394 5.1Ch Audio

Scan code: LN8812 Manufacturer code: SB83G5

End of life

This product is no longer available to purchase.

Email me when the availability or price changes

SCANPROTECT Protect against installation damage for 28 days.

Product Overview The XPC SB83G5 is a great way to put performance, integration and style on your desktop. Designed to be the centerpiece of your digital life, this small form factor (SFF) computer offers unmatched versatility, living-room ergonomics and ease-of-use. From web surfing to watching DVD’s and gaming to office productivity, the XPC SB83G5 delivers optimal mix of size, power and style. Features Usage
Home, Gaming
Chassis
G5-type aluminum chassis, silver color
storage bays: 1 x 5.25", 2 x 3.5" (1 internal)
stealthed drive doors
dimensions: 30 x 20 x 18.5 cm (LWH)
weight: 2.85 kg net / 4.65 kg gross
Mainboard
Shuttle FB83, Shuttle form factor, proprietary design for SB83G5
chipset: Intel 915G + ICH6R
Award V6.0PG BIOS, 4MBit flash memory
with hardware monitoring and ACPI power management functions
dimensions: 25.4 x 18.5 cm
Power supply unit
SilentX 250 Watt mini PSU, supports 115/230V
connectors: 20-pin ATX, 4-pin ATX12V
Processor support
Socket 775 supports Intel Pentium 4 and Celeron D processors
at 800 or 533 FSB
supports Hyper-Threading
Processor cooling system
Shuttle I.C.E. (Integrated Cooling Engine)
advanced Heatpipe technology
linear 92mm fan control
Memory support
2 x 184 pin slots, supports Dual Channel
supports PC3200/2700 (DDR400/333) DDR SDRAM memory
up to a total size of 2GB
Expansion slots
1 x PCI-Express (PCI-E, 16X)
1 x 32 Bit PCI (v2.2)
Integrated graphics
Intel Graphics Media Accelerator 900 (GMA900)
with PCI-E x1 improved bandwidth
features 333MHz graphics core
DX8/DX9 support and enhanced 3D performance
Dynamic Video Memory Technology (DVMT) 3.0
shared Memory max. 256MB
6-channel Audio
Realtek ALC658 5.1 channel audio
analog: line-out (8-ch), line-in, microphone, CD-in, AUX
digital: optical SPDIF in/out, coaxial output
Gigabit LAN controller
Marvell 88E8001 Ethernet network controller
supports 10 / 100 / 1.000 MBit/s opteration
Firewire controller
IEEE1394 Firewire controller VIA VT6307
with 2 Firewire connectors (front and rear)
supports 400Mb/s, 200Mb/s, 100Mb/s data transfer rate
Drive connectors
2 x Serial-ATA 150, supports Raid 0 and 1
1 x IDE ATA 100 drives
1 x floppy disk drive
Front-panel I/O
Microphone
Headphone (Line-out)
2x USB 2.0
Firewire (4 pol.)
Back-panel I/O
VGA
Firewire (6 pin)
PS/2 for mouse and keyboard
GigaBit LAN (RJ45)
2x USB 2.0
6-ch Audio line-out (2x rear/front, bass/center)
SPDIF: optical in/out, coaxial out
Line-in
Serial port (COM)
optional parallel port
optional Wireless LAN module
Other onboard connectors
4 x USB 2.0 (total 8x)
2 x CDROM inputs
1 x AUX
3 x fan connectors
Conformity
This device is classed as a technical information
equipment (ITE) in class B and is intended for use in
living room and office. The CE-mark approves the
conformity by the EU-guidelines:
- EMV-guideline 89/336/EWG electromagnetic tolerance
- LVD-guideline 73/23/EWG use of electric devices
within certain voltage-limits
