Dual Band Frequency Manager

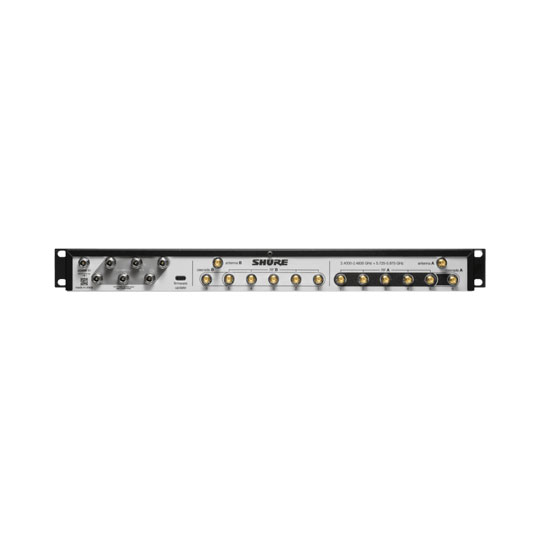

Shure - GLXD+FM
READY-TO-GO. EVERY TIME. AUTOMATICALLY.The GLXD+FM Dual Band Frequency Manager connects up to six GLXD4R+ receivers together, providing solid and reliable RF performance in demanding multi-channel applications. The channel count can go up to 11 simultaneous systems in typical environments and up to 16 under optimal conditions, with flexible antenna distribution options.
The GLXD+FM Dual Band Frequency Manager connects up to six GLXD4R+ receivers together, providing solid and reliable RF performance in demanding multi-channel applications.
at a glance
• Provides automatic dual band frequency management to a linked receiver community for improved RF performance and increased channel count
• Link up to 6 individual rack receivers via RF ports for traditional antenna distribution
• Daisy-chain cascade connection allows up to 3 Frequency Managers linked as a single managing unit for 16 receivers
• Intelligent frequency management quickly identifies the best frequencies
• Identifies and assigns optimal frequencies to receiver/transmitter pairs
• In case of interference, automatically and seamlessly transitions to backup frequencies
• Provides power to the GLXD4R+ receivers, eliminating need for power strips or multiple outlets
• Globally‐unlicensed 2.4GHz frequency band and 5.8 GHz frequency band
also included
• 1 AC Power Cable
• 1 Rack-mount Hardware Kit
• 6 Pairs of RSMA Cable to connect to GLXD4R+ Receivers
The Tech Spec
| Features | Specification | Specifications | Power Requirements: 15 V DC DC Output: 15 V DC (x 6) Output Current: 3.8 A, maximum (combined total from all DC outputs) Operating Temperature Range: -18°C to 63°C (0°F to 145°F) Dimensions (H x W x D): 45 x 483 x 192 mm (1.8 x 19 x 7.6 in) Net Weight: 1.63 kg (3.6 lbs) |
|---|---|
| RF Input | Connector Type: Reverse SMA RF Frequency Range: 2400 to 5850 MHz Receiver Port Isolation: 35 dB, typical Impedance: 50Ω Maximum Antenna Input Power: -10 dBm Maximum Receiver Port Input Power: +15 dBm |
| RF Output | Connector Type: Reverse SMA RF Frequency Range: 2400 to 5850 MHz Output Intercept Point (OIP3): 48 dBm, typical Impedance: 50Ω Reverse Isolation: 35 dB, typical (output to input) Gain: -3 to 0 dB (input to any output port) |
