Shure - GLXD14R+UK/B98-Z4- Wireless Microphone System
Shure - GLXD14R+/B98, Digital Wireless Rack System with BETA 98H Flexible Gooseneck Microphone
- SCANPROTECT Protect against installation damage for 28 days. More info

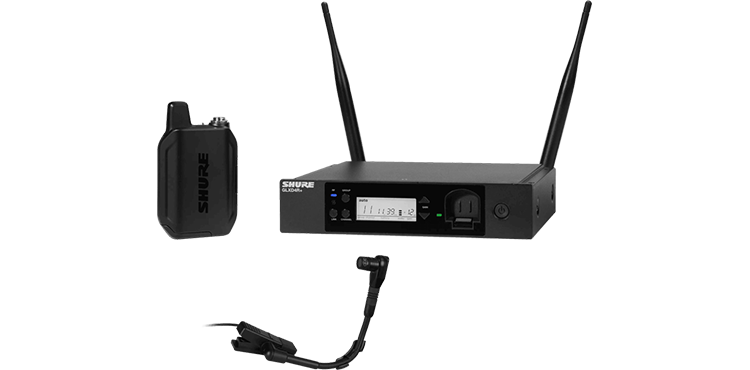

Digital Wireless Rack System with BETA 98H Flexible Gooseneck Microphone
Shure - GLXD14R+/B98
(Frequency Band: Z4 - 2.4 / 5.8GHz)
READY-TO-GO. EVERY TIME. AUTOMATICALLY.The new GLX-D+ Dual Band Wireless Rack System features the precision-crafted BETA®98H/C flexible gooseneck microphone for brass, woodwind and percussion applications and the GLXD4R+ half-rack receiver. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.

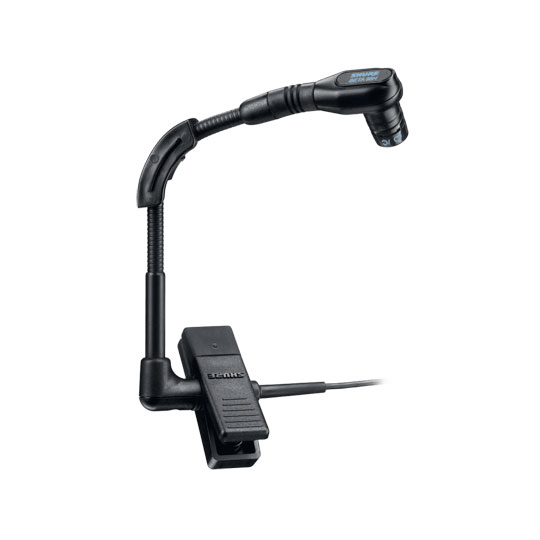

The new GLX-D+ Dual Band Wireless Rack System features the precision-crafted BETA®98H/C flexible gooseneck microphone for brass, woodwind and percussion applications and the GLXD4R+ half-rack receiver.
at a glance
• 2.4 GHz and 5.8 GHz wireless operating frequency
• Dual-band technology doubles available bandwidth
• Includes bodypack transmitter and WB98H/C clip-on instrument mic
also included
• 1 PS43 Power Supply
• 1 SB904 Lithium-Ion Rechargeable Battery
• 1 Vinyl Zippered Bag
• 1 Rack-mount Hardware
The Tech Spec
| Features | Specification | GLXD4R+ Dual Band Rack Receiver | Dimensions (H x W x D): 7.7 x 6.4 x 1.6 in (196.8 x 162.97 x 41.8 mm), antennas folded Weight: 30.5 oz. (866 g) without batteries Housing: Steel Power Requirements: 14.5 V - 17 V, 600 mA Spurious Rejection: >35 dB, typical Gain Adjustment Range: -18 to 42 dB in 1 dB steps Phantom Power Protection: Yes |
|---|---|

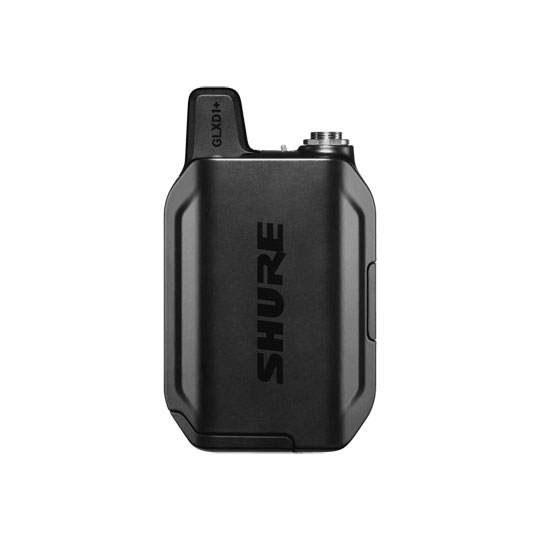

| GLXD1+ Dual Band Bodypack Transmitter | Dimensions (H x W x D): 4.5 x 2.6 x 1.1 in (115 x 66.94 x 28.51 mm), without antenna Weight: 5.4 oz. (153.1 g), without battery Power Requirements: 3.7 V rechargeable, lithium ion Housing: Cast metal, black powdercoat Input Impedance: 900 kΩ RF Output Power: 10 mW E.I.R.P. max. Input Connector: 4-pin male mini connector (TA4M) Input Configuration: Unbalanced Maximum Input Level (1 kHz at 1% THD): +8.4 dBV (7.5 Vp-p) Antenna Type: Dual Band Internal Monopole |
