Sequential Trigon-6 Desktop Module

Sequential - Trigon-6 Desktop Analogue Synth Module

Thumbnail 1 : Sequential Trigon-6 Desktop Module Thumbnail 2 : Sequential Trigon-6 Desktop Module Thumbnail 3 : Sequential Trigon-6 Desktop Module Thumbnail 4 : Sequential Trigon-6 Desktop Module
Scan code: LN139767 Manufacturer code: SEQ-3810-UK
Order now and receive it by Monday, 22nd April
£2,199.00
Get it Monday, 22 AprIn stock
FREE DELIVERY ON YOUR ENTIRE BASKET
From £62.01 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £199.23
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £2,199.00
Total inc. interest: £2,390.67
Monthly Payment: £107.38
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £2,199.00
Total inc. interest: £2,576.91
Monthly Payment: £77.01
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £2,199.00
Total inc. interest: £2,772.04
Monthly Payment: £62.01
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £2,199.00
Total inc. interest: £2,975.95
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £58.43 / month (APR 19.9%)
Delivery Options
  • By DPD On 22nd Apr to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Desktop Analogue Synth Module
Sequential - Trigon-6 Module

Sequential - Trigon-6 Module

'Ultimate Polyphonic Power' The Sequential Trigon-6 desktop module delivers the same massive sound and hands-on timbre shaping control as the Trigon-6 Keyboard. It features the same pure analog signal path with discrete oscillators and filters, and the same high-quality digital effects. It also has the same intuitive layout with full-sized knobs and switches that make it quick and easy to create new sounds.

The Trigon-6 module sounds huge — just like the keyboard, because it is the same six voice polyphonic instrument, just in a smaller form factor. And if you want even more polyphony, you can use the poly chain feature to link any two Trigon-6s for a stunning twelve-voice synth!

A Sound That is Bold and Familiar The Trigon-6 is Sequential’s polyphonic take on the classic, thick and creamy, 3-oscillator-plus-ladder-filter analog sound that defined the dawn of the synth era. It’s a sound that bridges genres and styles — now refined and redefined with Sequential’s own modern imprint.

All-New Filter and Oscillator Design At the heart of the Trigon-6 sound are three newly designed voltage-controlled oscillators (with triangle, saw, and pulse waves) and an enhanced version of the ladder filter that Sequential created for its Pro 3 mono synth. The switchable 2/4 pole resonant filter design has dedicated drive and feedback controls that make it effortless to go from silky and smooth to bold and crunchy with a simple knob turn.

Rounding Out the Picture

4K Recording

a ready-made palette of 500 factory and 500 user presetsNaturally, the Trigon-6 has the full complement of Sequential’s “must-have” sound-sculpting features including super snappy envelopes, a syncable LFO with multiple waveforms and destinations, a polyphonic step sequencer, and an arpeggiator. Best of all, the knob-per-function front panel of the Trigon-6 puts these controls at your fingertips. And the ready-made palette of 500 factory and 500 user presets provides a wide range of basses, leads, and pads to jump start any project.

Dual Effects The dual effects section provides studio-quality reverbs, delays (standard and BBD), chorus, flanger, phaser, and ring modulator. The independent stereo distortion effect adds on-demand aggression and is 100% analog.

Standout Features

4K Recording

Adjustable Vintage CharacterFinally, to give even more classic organic warmth to an already classic synth, there’s the Vintage Knob, which adds voice-to-voice variations in calibration and component behavior. Vintage response is adjustable from subtle to extreme to emulate the stability of a perfect modern instrument or a time-worn relic.

Portable and Powerful With all that Trigon-6 has to offer, it’s amazing that this analog beast is packed into a desktop module light enough to carry in a backpack. And with Trigon’s new MPE compatibility, this instrument is more playable and nuanced than ever before.

The Tech Spec

Features Specification
OSCILLATORS • Three discrete VCOs per voice
• Simultaneously selectable wave shapes: triangle, sawtooth, reverse sawtooth, and variable-width pulse
• Pulse width per oscillator
• Hard sync: oscillator 1 syncs to oscillator 2
• Keyboard tracking on/off (oscillator 3)
• Low frequency mode (oscillator 3)
• Oscillator feedback and drive controls for increased signal saturation
• White Noise source
LOW-PASS FILTER • Switchable two/four-pole, discrete, resonant, low-pass, ladder filter per voice
• Filter can be driven into self-oscillation with the Resonance control
• Bi-polar filter envelope amount
• Velocity modulation of envelope amount
• Keyboard tracking: off, half, full
FILTER ENVELOPE • Four-stage (ADSR) envelope generator
• Velocity modulation of envelope amount
AMPLIFIER ENVELOPE • Four-stage (ADSR) envelope generator
• Velocity modulation of envelope amount
LOW FREQUENCY OSCILLATOR • Five wave shapes: sine, sawtooth, reverse sawtooth, square, and random (sample and hold)
• LFO sync
• Initial amount
• Mod destinations: oscillator 1 frequency, oscillator 2 frequency, oscillator 3 frequency, oscillator 1 pulse width, oscillator 2 pulse width, oscillator 3 pulse width, filter cutoff, amp (VCA)
POLY MOD • Sources: oscillator 3 (bi-polar) and filter envelope (bi-polar)
• Destinations: oscillator 1 frequency, oscillator 2 frequency, oscillator 3 frequency, oscillator 1 pulse width, oscillator 2 pulse width, filter cutoff, feedback amount
VINTAGE KNOB • Recreates vintage synth characteristics by adding voice-to voice variations in component behavior
AFTERTOUCH • Source: channel (mono) aftertouch with bi-polar amount
• Destinations: Destinations: oscillator 1 frequency, oscillator 2 frequency, oscillator 3 frequency, LFO amount, amplifier envelope amount, filter envelope amount, FX mix A, FX mix B
CLOCK • Master clock with tap tempo
• BPM control and display
• MIDI clock sync
ARPEGGIATOR • Selectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note
• One, two, or three octave range
• Up, down, up/down, random, and assign modes
EFFECTS • Stereo analog distortion
• Dual, 24-bit, 48 kHz digital effects, including: reverb (room, hall, plate, spring), delay (full bandwidth digital delay and emulated bucket brigade), chorus, flanger, phase shifter, and ring modulator
• Delay sync
• True bypass maintains fully analog signal path when digital effects are off
PERFORMANCE CONTROLS • Hold switch latches held notes on
• Polyphonic portamento
• Unison (monophonic) mode with configurable voice count, from one to all six voices, and key modes to control voice triggering priority
• Preset switch: when on, the front panel is live — what you see is what you hear
PATCH MEMORY • 500 user and 500 factory programs in 10 banks of 100 programs each
• Direct program access, including single-button access to the current set of 10 programs

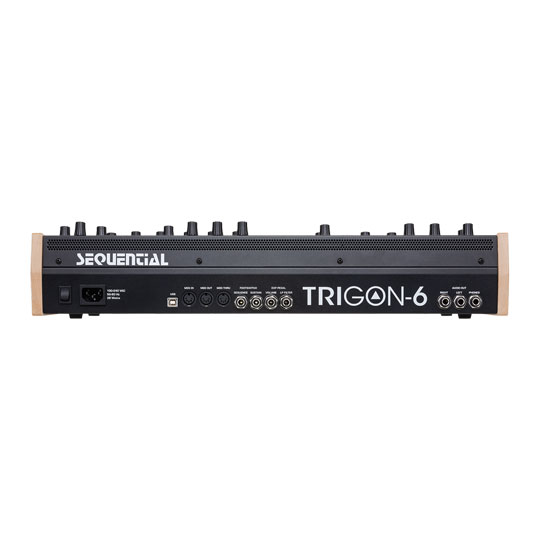

IN/OUT • Left/mono and right audio outputs (2 x 1/4” phone jack)
• Headphone output (stereo, 1/4” phone jack)
• MIDI in, out, and thru ports
• USB for bidirectional MIDI communication
• Filter cutoff expression pedal input
• Volume expression pedal input
• Sustain footswitch input
• Sequencer start/stop footswitch input
POWER • IEC AC power inlet for internal power supply
• Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; 30 watts maximum power consumption
PHYSICAL SPECS • Maple end panels
• Trigon-6 desktop module weighs approximately 10.9 lbs. (4.95 kg) and measures 22.00” L x 8.45” W x 4.54” H (55.88 cm x 21.46 cm x 11.53 cm).
Specifications
Product Type Analogue Synthesizer
PC Interface N/A
Keys
Connectivity (Input)
Connectivity (Output)
Dimensions (mm)
Misc. Notes
Additional Information
Scan Code LN139767
Model Number SEQ-3810-UK
GTIN 855346000531
