Sequential - 'Prophet-5 Desktop Module' 5-voice Analog Synth Module
Sequential - 'Prophet-5 Module', 5-voice Polyphonic Analog Synthesizer Module with 2 VCOs, 4-pole Lowpass Filter, LFO
Sequential - 'Prophet-5 Desktop Module'
5-voice Analog Synth Module
A Legendary SynthThe Sequential Prophet-5 Desktopis Dave Smith’s ten-voice version of the revolutionary analog poly synth that changed everything. Considered as the best of all Prophet synths, it combines all three recreations of the legendary Prophet-5 synth. Including Rev1, Rev2, and Rev3, through the use of real Curtis analog VCOs and filters (as found in the Rev3) along with new 2140 low-pass filters created by Dave Rossum, like the 2040 filters he designed in the original Rev1 and Rev2. The Rev switch lets you select between the two filter designs. The result is an outstanding, honest recreation of an analog classic, with the authentic, huge sound of the original and the reliability of a world class modern instrument.
200Factory Programs
5Voices
200User Programs
Amazing Features
• 200 user and 200 factory programs in 5 banks of 40 programs each
• Sawtooth, triangle, square waveshapes can all be engaged simultaneously
• True to the original design with modern enhancements and upgrades
• USB I/O for bidirectional MIDI communication
Vintage Sound
Vintage ControlAlong with finding genuine Prophet-5 hardware components, Sequential did extensive research into what made the original synth sound warm, organic, and. It was discovered that much of this desirable character was down to slight fluctuations and differences in the response times and frequencies of each of the VCOs, filters, envelopes, and amplifiers between each voice.
To give the Prophet-5 the same characteristics, Sequential designed the Vintage knob. This can be used dial in as much experimental old school characteristics as you wish. From a very stable “4” as in Prophet-5 Rev4, which is now referred to as the new version in house. All the way to “1,” as in Prophet-5 Rev1, the rarest and most complex of all Prophet-5s.
Poly Mod & Enhanced Unison
True To The OriginalIn addition to the recognisable tone of its oscillators and filters, a majority of the classic sound of the Prophet-5 was the result of Poly Mod, which is certainly present with the Prophet-5. True to the original, modulation sources are Filter Envelope and Oscillator B. Destinations feature Oscillator A frequency, Oscillator A pulse width, and low-pass filter.
The variation of sounds possible defy its simplicity. Another welcome feature is Unison mode, this now includes configurable voice count (1-5 voices) with variable detuning, and chord memory. With Glide now working both in and out of Unison.
Effortless To Program

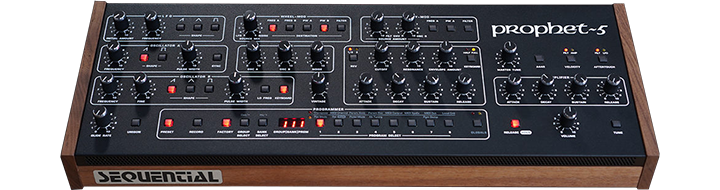

What You See Is What You HearThe pure power of the Prophet-5 is matched its intuitive method of programming. The knob-per-function on the front panel gives you instant fulfilment and direct access to all the sound-shaping controls. Toggling off the Preset button engages live panel mode, where the Prophet-5 switches to the current settings of its knobs and switches.
What you see is what you hear. Included in the Prophet-5 are 200 permanent factory programs and 200 rewritable user programs, including the original 40-program sound set from 1978 which can be found on countless recordings and film soundtracks throughout history.
The Whole Package
Total SatisfactionAll of this punchy, powerful, analog sonic delight is built USB, MIDI, Gate and CV ins/outs, and a premium-quality, steel and hand-oiled, sustainable black walnut heartwood body which makes the pleasing aesthetics of the instrument live up to its sound.
Sequential Prophet-5: The Legend Returns
The Tech Spec
| Features | Specification | Oscillators | Two authentic CEM 3340 VCOs per voice Simultaneously selectable wave shapes. Oscillator A: sawtooth, pulse. Oscillator B: sawtooth, triangle, pulse. Pulse width per oscillator. Hard sync: oscillator 1 syncs to oscillator 2 Low frequency mode (oscillator 2) Keyboard tracking on/off (oscillator 2) |
|---|---|
| Mixer | Oscillator 1 amount Oscillator 2 amount White noise amount |
| Low-Pass Filter | Four-pole, resonant, low-pass filter per voice Switchable between authentic versions of the Prophet-5 Rev1/2 filter and Prophet-5 Rev3 filter Rev1/2 filter is a Dave Rossum-designed 2140, the modern counterpart of the original 2040 filter found in the Prophet-5 Rev1 and Rev2 Rev3 filter is a Doug Curtis-designed CEM 3320 Filter can be driven into self-oscillation with the Resonance control Keyboard tracking: off, half, full |
| Filter Envelope | Four-stage (ADSR) envelope generator Velocity modulation of envelope amount |
| Amplifier Envelope | Four-stage (ADSR) envelope generator Velocity modulation of envelope amount |
| Low Frequency Oscillator | Three wave shapes: sawtooth, triangle, square. All waveshapes can be engaged simultaneously Both Initial Amount and mod wheel control Mod destinations: oscillator A frequency, oscillator B frequency, oscillator A and B pulse width, filter cutoff |
| Poly Mod | Sources: filter envelope and oscillator B Destinations: oscillator A frequency, oscillator A pulse width, filter cutoff |
| Vintage Knob | Recreates the characteristics of various Prophet-5 models by varying the behavior of oscillators, envelopes, amplifiers, and other parameters. Go from a very stable “4” — as in Prophet-5 Rev4, (the new version) — all the way to “1,” as in Prophet-5 Rev1, the rarest and most temperamental of all Prophet-5s. |
| Performance Controls | Polyphonic glide (portamento) Unison (monophonic) mode with configurable voice count, from one to all five voices and key modes Preset switch: when off, the front panel is live; what you see is what you hear |
| Patch Memory | 200 user and 200 factory programs in 5 banks of 40 programs each Direct program access, including Prophet 5-style single-button access to the current set of 8 programs |

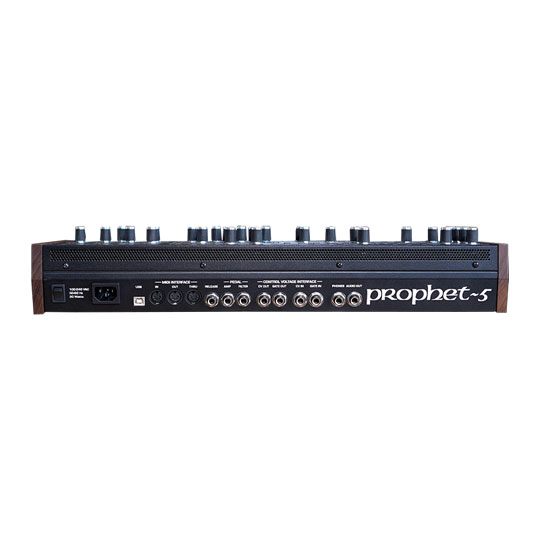

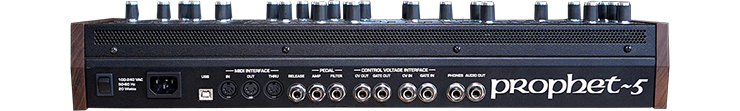

| In/Out | Mono output (1 x 1/4” phone jack) Headphone output (stereo, 1/4” phone jack) MIDI in, out, and thru ports USB for bidirectional MIDI communication Control voltage in/out (1 x 1/4” phone jack) 0- +5V input/output signal. Configured for 1-volt-per-octave operation Gate in/out (1 x 1/4” phone jack). Accepts a 1.5 to 15-volt on/off signal to gate the envelopes of a single voice on the5. Outputs a 15-volt on/off used to gate the envelopes of an external synth Low-pass filter cutoff expression pedal input Volume expression pedal input Sustain footswitch input |
| Power | IEC AC power inlet for internal power supply Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; Prophet-5: 20 watts maximum power consumption |
| Dimensions | 20.75″ L x 7.4″ W x 3″ H (52.70 cm x 18.8 cm x 7.62 cm) |
