Stereo Transmitter
Sennheiser - XSW IEM SR (E)

Sennheiser - XSW IEM EK (E)

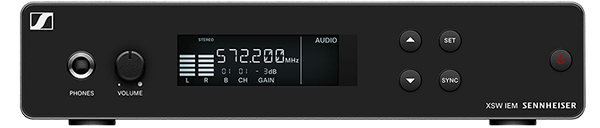

XSW IEM SR Stereo TransmitterSennheiser's rugged XS Wireless IEM transmitter features metal housing designed for ever-changing stages, rehearsals, and travels. The transmitter can be operated stand-alone or as part of a rack with the optional rack mount kit. The removeable BNC antenna allows for various mounting options.

The backlit front interface offers easy and simplified access in a clearly arranged menu. Just a few clicks, even on dark stages, and you can optimize input signals, link additional receivers with the infrared panel, or simply monitor the audio status.

The two XLR combo inputs on the back are open for both XLR or 6.3 mm (1/4 inch) connections, resulting in a high flexibility with different cabling options. A 6.3 mm (1/4 inch) headphone jack output on the front can be used for wired, stationary monitoring or as a quick overview option in larger setups.

Advanced transmitter settings like gain, input sensitivity, mono or stereo options, and easy frequency management with eight frequency banks with 12 precalculated channels each allow perfect monitoring for any demand, on any stage and in any location.

at a glance • Rugged metal housing in a standard half-rack size
• Single-stereo UHF transmitter for XS Wireless IEM systems
• Backlit front panel to access all key settings
• 2x XLR and 6.3 mm (1/4 inch) TRS combo inputs
• Additional headphone output (6.3 mm / ¼ inch) on front
• Removeable BNC antenna for optimal positioning options
• Easy Frequency management - 8 frequency banks with 12 precalculated channels each

The Tech Spec

Features Specification
Frequency Ranges (RF Output Power) 823,2-831,8 MHz (30 mW)
AF frequency response 45 Hz to 15 kHz
Modulation FM Stereo
Signal-to-noise ratio (1 mV, peak deviation) ≥88 dB
Switching bandwidth 2 x 1,25 Veff at 16 Ω
Dimensions Approx. 95 x 70 x 26 mm
Weight (incl. batteries) Approx. 110 g
Switching bandwidth up to 24 MHz
High Boost (EQ) +10 dB at 13 kHz
Total harmonic distortion (THD) ≤ 1 %
Limiter -10 dB
Power supply 2 AA batteries, 1.5 V
Operating time Approx. 6 hrs
Specifications
Headphone Type
Style
Driver Type
Headphone Connector Type
Includes Adaptor No
Impedance
In-line Mic No
Detachable Cable No
Cable Length
Weight
Sensitivity None
Additional Information
Scan Code LN123182
Model Number 509154
