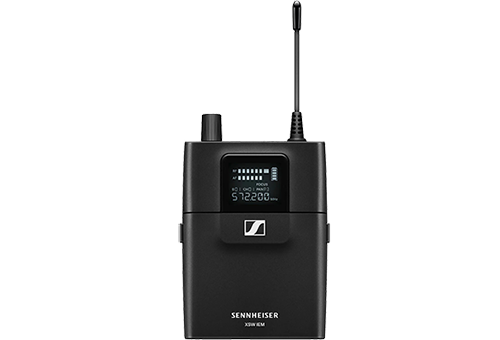

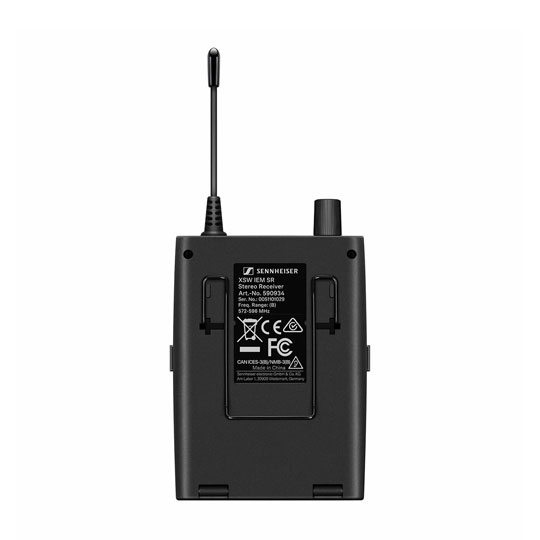

Sennheiser XSW IEM EK (E)

Sennheiser XSW IEM EK (E) Stereo receiver

Thumbnail 1 : Sennheiser XSW IEM EK (E) Thumbnail 2 : Sennheiser XSW IEM EK (E) Thumbnail 3 : Sennheiser XSW IEM EK (E)
Scan code: LN123181 Manufacturer code: 509159
£309.00Item currently awaiting an ETA
Pre order
FREE DELIVERY ON YOUR ENTIRE BASKET
From £13.66 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £26.56
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £309.00
Total inc. interest: £318.71
Monthly Payment: £13.66
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £309.00
Total inc. interest: £327.83
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £7.72 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Wireless IEM Stereo Receiver
Sennheiser - XSW IEM EK (E)

Sennheiser - XSW IEM EK (E)

easily link additional receivers to one transmitter With XS Wireless IEM, you can easily link additional receivers to one transmitter – connecting more band members to a new level of detail. The lightweight bodypack remains unnoticed once clipped on your clothing or belt. You can plug in the included IE 4 in-ear monitors or upgrade to the IE PRO series with the 3.5 mm output.

The status LED shows battery and link status at a glance – while the high contrast front panel allows for individual fine-tuning, from balance to focus modes to EQ to Limiter, so you can design your individual mix.

easily expand any XS Wireless IEM setupA professional IEM receiver is unnoticeable most of the time, but becomes a powerful tool with just a few clicks. That is the DNA of the lightweight XS Wireless IEM bodypack. You can easily expand any XS Wireless IEM setup by connecting additional receivers to your transmitter.

Its small status LED is all you might see during rehearsals or gigs. It signals both battery and wireless link status. The LC display only lights up when you access the well-secured settings panel. With just a few clicks, you can balance your in-ear mix, switch between focus modes, use an EQ for elevated high frequencies, enable the limiter, choose a new option from the preset channels, or set your frequency manually.

The standard 3.5 mm output is open for the included pair of IE 4 in-ear monitors – or you can upgrade your sound with a model of the IE PRO in-ear monitor line.

Advanced features like the limiter help you to protect your ears by clamping down on sudden loud signals. With the EQ option, you can get more air and extra brightness by boosting your sound at 13 kHz.

The bodypack operates with two AA primary cells or rechargeable batteries. Depending on the volume level, you can expect about six hours of operating time.

at a glance • UHF bodypack receiver to expand existing XS Wireless IEM setups
• Lightweight bodypack with rear clamp and stage-proof control panel
• Standard 3.5 mm jack plug for supplied IE 4 in-ear monitors or optional in-ear sets
• Menu access to receiver sound settings like focus modes, volume control, limiter, and EQ
• Backlit front panel and status LED for battery and link status
• Operates with 2x AA primary cells or rechargeable batteries
• Pan control for individual balance of the input channels

The Tech Spec

Features Specification
Frequency Ranges (RF Output Power) E 823,2-831,8 MHz (30 mW)
AF frequency response 45 Hz to 15 kHz
Modulation Wideband FM
Signal-to-noise ratio (1 mV, peak deviation) ≥88 dB
AF output level at 3.5 mm 2 x 1,25 Veff at 16 Ω
Dimensions Approx. 95 x 70 x 26 mm
Weight (incl. batteries) Approx. 110 g
Switching bandwidth up to 24 MHz
High Boost (EQ) +10 dB at 13 kHz
Total harmonic distortion (THD) ≤ 1 %
Limiter -10 dB
Power supply 2 AA batteries, 1.5 V
Operating time Approx. 6 hrs
Specifications
Headphone Type
Style
Driver Type
Headphone Connector Type
Includes Adaptor No
Impedance
In-line Mic No
Detachable Cable No
Cable Length
Weight
Sensitivity None
Additional Information
Scan Code LN123181
Model Number 509159
