Sennheiser SK-XSW-GB Transmitter Bodypack

Sennheiser - SK-XSW-GB Transmitter Bodypack for XSW Wireless Series, GB: 606-630 MHZ Frequency Band
MORE INFO

MORE INFO

Scan code: LN139277 Manufacturer code: 507327

£127.00

Free delivery on your entire basket

Item currently awaiting an ETA

Pre Order

Pre order

Pay in 3 interest-free payments of £42.34

Email me when the availability or price changes

By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

From £11.51 / month (APR 16.9%) for 12 months or 0% for 4 months
Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.

SCANPROTECT Protect against installation damage for 28 days.

Transmitter Bodypack
Sennheiser - SK-XSW-GB

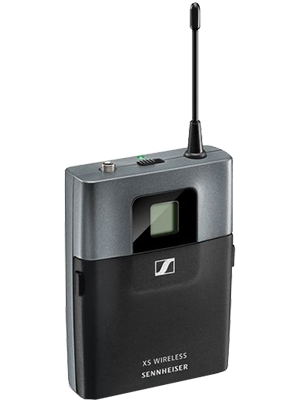

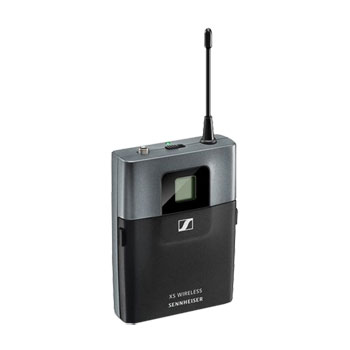

GB: 606-630 MHzThe Sennheiser SK-XSW-GB Wireless Bodypack Transmitter is designed to be used with the Sennheiser XSW wireless series. Perfect for adding a spare bodypack to your setup, or for replacing broken or damaged ones, this compact transmitter is easy to use with versatile functionality.

At a glance • Compact bodypack tramsitter for Sennheiser XSW wireless systems
• GB: 606.6MHz - 613.5MHz wireless frequency band
• Sturdy build to withstand difficult conditions
• Automatic frequency management

The Tech Spec

Features	Specification
Frequency Range	GB: 606-630 MHz
Power	2 AA size batteries, 1.5 V
Approx Operating Time	10 hrs
Housing	Robust ABS
AF Frequency Response	50 bis 16,000 Hz
Frequency Response	50 to 16,000 Hz (–3 dB)
THD, Total Harmonic Distortion	≤ 0.9%
Signal-To-Noise Ratio	≥ 103 dBA
RF Output Power	10 mW
Switching Bandwidth	Up to 24 MHz
Modulation	Wideband FM
Output Voltage	1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu XLR socket (balanced): +12 dBu
Diversity Reception	True Diversity
Frequency	8 frequency banks, each with up to 12 factory-preset channels
Sensitivity	< 3 μV at 52 dB(A)rms S/N
Squelch	Switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
Synchronization	2.4 GHz, Low Power OQPSK (only active during synchronization)
Adjustment Range Transmitter	0 to -30 dB, adjustable in 10 dB steps
Audio Adjustment Range	40 dB, adjustable in 5-dB steps
Line / Mic level	20 dB, switchable
Temperature Range	Operation: 0°C to +40°C Storage: –20°C to +70°C
Receiver Principle	Double superheterodyne
Dimensions	71 x 96 x 28 mm
Weight	95g
Model Number	507327

Specifications
Form Factor
Transmitter Channels
Receiver Channels
Product Type
Transmission type
Reciever Type
Receiver Output
Frequency Band
Incudes Lav Mic	No
Includes Headset	No
Includes Instument Cable	No
Capsule or Mic Model
Capsule Type
Polar Pattern
Interchangable Capsules	No
Transmitter Input
Dante	No

Additional Information
Scan Code	LN139277
Model Number	507327
GTIN	4044155215380
