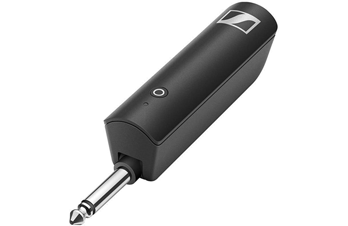

Sennheiser XSW-D Instrument TX
Sennheiser XSW-D Wireless Instrument Transmitter with 6.3mm Input
- SCANPROTECT Protect against installation damage for 28 days. More info
Sennheiser - 'XSW-D'
Transmitter with 6.3mm (1/4”) Input
XS Wireless Digital
Instrument transmitter
Going wireless means no more obstacles, no more distractions, just effortless audio and pure focus, each and every time. Going wireless is a liberating solution for musicians, performers and videographers. Welcome to the world of wireless, without the fuss of a complex set-up.
With the simple syncing process of a portable transmitter and receiver, XS Wireless Digital uses a 2.4 GHz connection to form a solid wireless peer-to-peer connection. It’s really is that simple. Whether it’s a complication-free lavalier for the lone video team, or the ability to rid the stage or studio of cables and clutter, this wireless tool boosts your creativity by allowing you to roam free, with pure focus on the job in hand.
5 HrsOperating Time
10Hz - 18kHzAudio Freq Response
<0.1 %THD
At a glance
• One touch ease-of-use
• 2.4 GHz digital transmission for worldwide operation
• Up to 5 hours battery life on a single charge
• Switch between multiple transmitters linked to one receiver
• Mute from either transmitter or receiver
Enjoy Wireless Freedom.
Empower your performanceA great connection shouldn’t mean being tied down. Wireless connections should mean no obstacles, no distractions, just effortless audio, every time. Improve your performance with the freedom to roam wherever the music takes you; lose the cables, but keep the connection.
One touch ease-of-useIt really is this simple, each XS Wireless Digital has just the one button. Press once to power up and link simultaneously, click again to mute, and hold down to power off. Lessen your set-up time and never miss a note, it’s ready whenever you are.
Digital for worldwide operationSennheiser believe your audio should be as boundless as your creativity. You can forget about having to set frequencies and step into the world of digital. Thanks to its 2.4 GHz transmission, you’re free to sync and go anywhere, anytime—stress free.
The Tech Spec
| Features | Specification | Input voltage | typ. 5.0 V |
|---|---|
| Charging temperature | 0 °C - 60 °C (32 °F - 140 °F) |
| Charging time | typ. 3 h |
| Cell type | Li-Ion |
| Nominal voltage | 3.7 V |
| Cell capacity | 850 mAh |
| Operating time | up to 5h |
| Codec | aptX® Live |
| Audio frequency response | 10 - 18,000 Hz |
| Audio output | max. 12 dBu |
| Signal-to-noise ratio | ≥ 106 dB |
| THD | < 0.1 % |
| Audio latency | < 4 ms |
