Sennheiser XSW 2-ME2-GB All-in-one Wireless System
Sennheiser XSW 2-ME2-GB All-in-one Wireless System for Public Speakers & Presenters, Rackmountable, 12 Channels
- SCANPROTECT Protect against installation damage for 28 days. More info
Frequently Bought Together
Wireless Microphone System
Sennheiser - XSW 2-ME2-GB
GB: 606-630 MHzInspire your audience with the Sennheiser XSW 2-ME2-GB. Offering high flexibility for those willing to go a step further, the XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.
The XS WIRELESS 2 LAVALIER MIC SET is an easy to use all-in-one wireless system made for presenters and moderators and works perfectly for a powerful and inspiring presentation. The set includes a stationary receiver for quick set-up and hassle-free handling, along with a lightweight bodypack transmitter and an unobstrusive clip-on microphone. Metal receiver housing and a rackmount kit is also included.
10 HrsOperating Time
50 - 16 kHzFrequency Response (–3 dB)
≤ 0.9%THD
At a glance
• Unobstrusive clip-on microphone for hands-free operation and compact bodypack transmitter

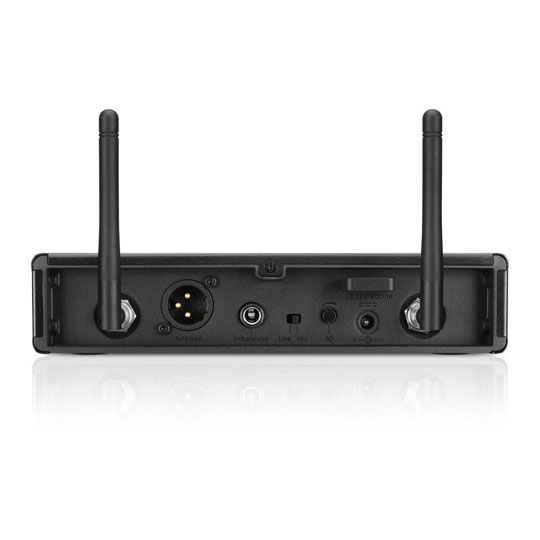

• True diversity receiver with metal housing
• Automatic frequency management and synchronization via remote channel for easy setup
• Fully tunable over a wide range of UHF frequencies
• Rackmount kit included
• Up to 12 compatible channels
• External antennas
What's In The Box?
• 1 x receiver EM-XSW 2

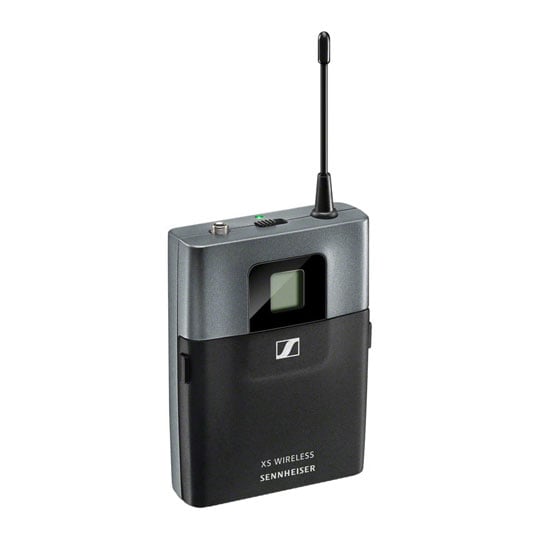

• 1 x bodypack transmitter SK-XSW
• 1 x lavalier microphone ME 2-2
• 1 x power supply NT 12-5 CW (adapter for the XSW 1-Cl1-GB only contains the UK changeable plug)
• 2 x AA batteries
• 1 x rackmount kit
• 1 x pouch
• User manual
Transmitter Tech Specs
| Features | Specification | Dimensions | Approx. 71 x 96 x 28 mm |
|---|---|
| Weight | Approx. 95g |
| Microphone | Condenser |
| Frequency response | 50 to 16,000 Hz (–3 dB) |
| THD, total harmonic distortion | ≤ 0.9% |
| Pick-up pattern | Omni-directional |
| Signal-to-noise ratio | ≥ 103 dBA |
| RF output power | 10 mW |
| Switching bandwidth | Up to 24 MHz |
| Operating time | Approx. 10 hrs |
| Power supply | 2 AA size batteries, 1.5 V |
| Modulation | Wideband FM |
| Output voltage | '1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu |
| Diversity reception | True Diversity |
| Frequency | 8 frequency banks, each with up to 12 factory-preset channels |
| Frequency range | GB: 606-630 MHz |
| Sensitivity | < 3 μV at 52 dB(A)rms S/N |
| Housing | Robust ABS |
| AF frequency response | 50 to 16,000 Hz (–3 dB) |
| Squelch | Switchable from 3 dBμV to 28 dBμV (via Pilot Tone) |
| Synchronization | 2.4 GHz, Low Power OQPSK (only active during synchronization) |
| Adjustment Range Transmitter | 0 to -30 dB, adjustable in 10 dB steps |
| Audio adjustment range | 40 dB, adjustable in 5-dB steps |
| Line / Mic level | 20 dB, switchable |
| Temperature Range | Operation: 0°C to +40°C, storage: –20°C to +70°C |
| Receiver Principle | Double superheterodyne |
Receiver Tech Specs
| Features | Specifications | Power supply | 12 V DC nom. / 300 mA |
|---|---|
| AF frequency response | 50 to 16,000 Hz (–3 dB) |
| Dimensions | Approx. 200 x 42 x 127 mm |
| Weight | Approx. 680g |
