Sennheiser XSW 1-ME3-GB Wireless Microphone System
Sennheiser XSW 1-ME3-GB Hands-free Performance System, Easy to Use All-in-One Wireless System for Singers and Presenters
- SCANPROTECT Protect against installation damage for 28 days. More info
All-In-One Wireless System
Sennheiser - XSW 1-ME3-GB
Perfect for Singers & Presenters Sennheiser XSW 1-ME3-GB gives you premium Hands-free performance. XS WIRLESS 1 is reliable and gives you a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 HEADMIC SET is an intuitive all-in-one wireless system for singers and presenters that works perfect for any live sound that involves dancing and singing all at the same time. The set includes an simple stationary receiver for quick setup and hassle-free handling, along with a compact bodypack transmitter and a lightweight headset microphone.
At A Glance
• Lightweight headmic and compact bodypack transmitter
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Antenna-switching diversity reception
• Up to 10 compatible channels
• Integrated antennas
What's Included?

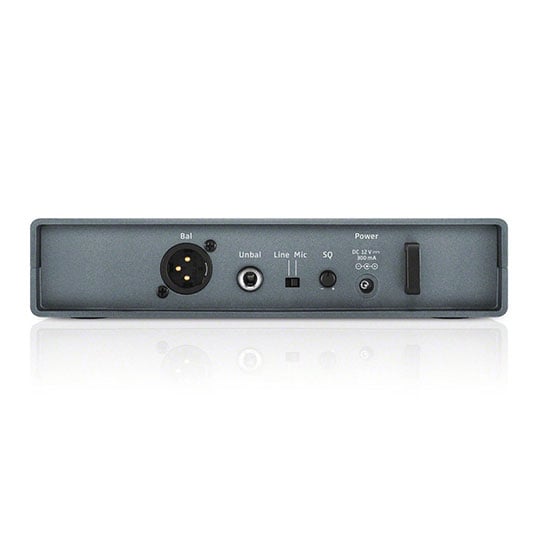

• 1 receiver EM-XSW 1
• 1 headset microphone ME 3-II

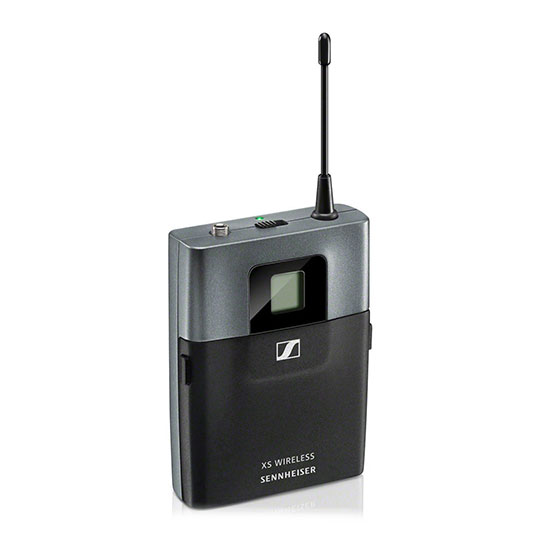

• 1 bodypack transmitter SK-XSW
• 1 power supply NT 12-5 CW
• 2 AA batteries
Receivers Tech Spec
| Features | Specifications | AF frequency response | 50 to 16,000 Hz (–3 dB) |
|---|---|
| Power supply | 12 V DC nom. / 300 mA |
| Dimensions | approx. 200 x 42 x 127 mm |
| Weight | approx. 340g |
Transmitter Tech Spec
| Features | Specifications | Operating time | Approx. 10 hrs |
|---|---|
| Adjustment Range Transmitter | 0 to -30 dB, adjustable in 10 dB steps |
| Microphone | Condenser |
| Housing | Rugged ABS housing |
| Synchronization | 2.4 GHz, Low Power OQPSK (only active during synchronization) |
| THD, total harmonic distortion | ≤ 0.9% |
| Frequency | 8 frequency banks, each with up to 10 factory-preset channels |
| Input sensitivity | 1.5 mV / Pa |
| Pick-up pattern | Cardioid |
| Frequency range | A: 548-572 MHz, GB: 606-630 MHz B: 614-638 MHz C: 766-790 MHz D: 794-806 MHz E: 821-832 MHz, 863-865 MHz K: 925-937.5 MHz |
| Audio adjustment range | 45 dB, adjustable in 5-dB steps |
| Signal-to-noise ratio | ≥ 103 dBA |
| Line / Mic level | 20 dB, switchable |
| RF output power | 10 mW |
| Sensitivity | < 3 μV at 52 dB(A)rms S/N |
| Temperature Range | Operation: 0°C to +40°C, storage: –20°C to +70°C |
| Switching bandwidth | up to 24 MHz |
| Modulation | Wideband FM |
| SPL for peak deviation | 150 dB |
| Receiver Principle | Double superheterodyne |
| Diversity principle | Antenna switching diversity via internal antennas |
| Output voltage | 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu |
| Squelch | adjustable from 3 dBμV to 28 dBμV (combined with pilot tone) |
| Power supply | 2 AA size batteries, 1.5 V |
| Dimensions | approx. 71 x 96 x 28 mm |
| Weight | approx. 95g |
