Sennheiser XSW 1-ME3-E Wireless Microphone System
Sennheiser XSW 1-ME3-E Hands-free Performance System, Easy to Use All-in-One Wireless System for Singers and Presenters
- SCANPROTECT Protect against installation damage for 28 days. More info
Wireless Microphone System
Sennheiser - XSW 1-ME3-E
E: 821-832 MHz, 863-865 MHzThe Sennheiser XSW 1-ME3-E gives you ultimate hands-free performance. XS WIRLESS 1 provides reliable and solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 HEADMIC SET is an easy to use all-in-one wireless system for singers and presenters, perfect for live sound that involves dancing and singing all at the same time. The set also comes with an intuitive stationary receiver for quick setup and hassle-free handling, along with a compact bodypack transmitter and a lightweight headset microphone.
10 HrsOperating Time
50 - 16 kHzFrequency Response (–3 dB)
≤ 0.9%THD
At a glance
• Lightweight headmic and compact bodypack transmitter
• Antenna-switching diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels

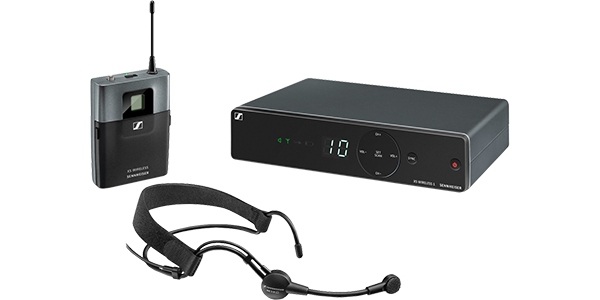

What's In The Box?
• 1 x receiver EM-XSW 1
• 1 x headset microphone ME 3-II

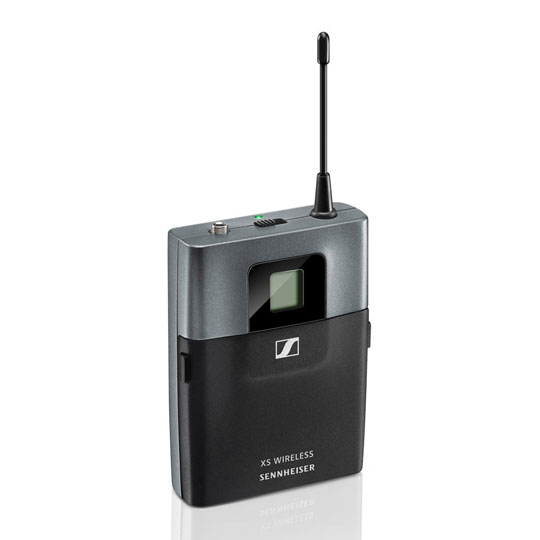

• 1 x bodypack transmitter SK-XSW
• 1 x power supply NT 12-5 CW (adapter for the XSW 1-Cl1-GB only contains the UK changeable plug)
• 2 x AA batteries
Transmitter Tech Specs
| Features | Specification | Dimensions | Approx. 71 x 96 x 28 mm |
|---|---|
| Weight | Approx. 95g |
| Microphone | Condenser |
| THD, total harmonic distortion | ≤ 0.9% |
| Pick-up pattern | Cardioid |
| Signal-to-noise ratio | ≥ 103 dBA |
| RF output power | 10 mW |
| Switching bandwidth | Up to 24 MHz |
| Modulation | Wideband FM |
| Output voltage | 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu |
| Operating time | Approx. 10 hrs |
| Power supply | 2 AA size batteries, 1.5 V |
| Housing | Rugged ABS housing |
| Frequency | 8 frequency banks, each with up to 10 factory-preset channels |
| Frequency range | E: 821-832 MHz, 863-865 MHz |
| Sensitivity | < 3 μV at 52 dB(A)rms S/N |
| SPL for peak deviation | 150 dB |
| Squelch | Adjustable from 3 dBμV to 28 dBμV (combined with pilot tone) |
| Adjustment Range Transmitter | 0 to -30 dB, adjustable in 10 dB steps |
| Synchronization | 2.4 GHz, Low Power OQPSK (only active during synchronization) |
| Input sensitivity | 1.5 mV / Pa |
| Audio adjustment range | 45 dB, adjustable in 5-dB steps |
| Line / Mic level | 20 dB, switchable |
| Temperature Range | Operation: 0°C to +40°C, storage: –20°C to +70°C |
| Receiver Principle | Double superheterodyne |
| Diversity principle | Antenna switching diversity via internal antennas |

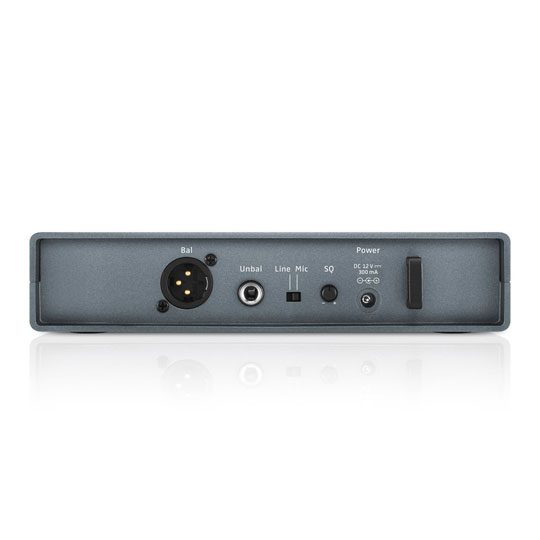

Receiver Tech Specs
| Features | Specifications | Power supply | 12 V DC nom. / 300 mA |
|---|---|
| AF frequency response | 50 to 16,000 Hz (–3 dB) |
| Dimensions | Approx. 200 x 42 x 127 mm |
| Weight | Approx. 340g |
