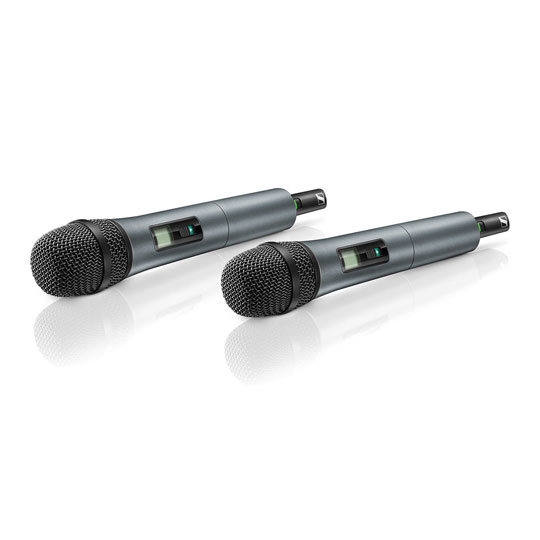

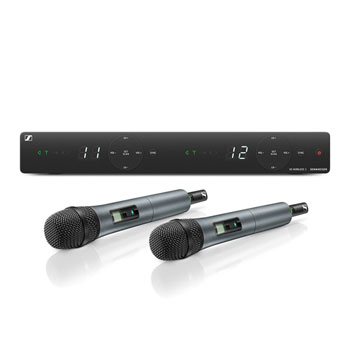

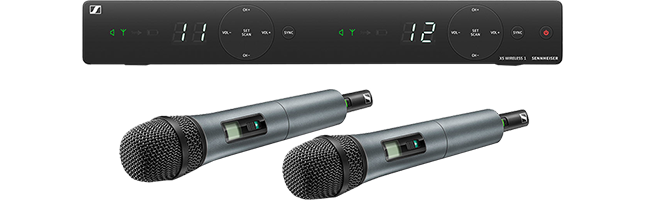

Sennheiser XSW 1-825 DUAL-E 2-Channel Wireless System
Sennheiser XSW 1-825 DUAL-E 2-Channel Wireless System For Singers and Presenters
Email me when the availability or price changes
Finance this product
- With a 10% deposit from just £12.99 / month (APR 19.9%)
- SCANPROTECT Protect against installation damage for 28 days.
2-Channel Wireless Microphone System
Sennheiser - XSW 1-825 DUAL-E
XS Wireless DigitalSennheiser XS Wireless 1 DUAL is a 2-channel wireless system puposely designed with singers and presenters in mind. With ease of use as a priority, these analogue UHF systems feature a sleek dual-channel receiver with built-in antennas and the streamlined interface from Sennheiser's popular XS Wireless 1 series.
At a glance
• Excellent live sound featuring Sennheiser's renowned evolution microphone capsules
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Antenna-switching diversity reception
• Up to 10 compatible channels
• Integrated antennas
System Tech Spec
| Features | Specification | Dimensions | Ø 48 x L 180 mm |
|---|---|
| Connector | XLR-3 |
| Frequency Response | 55 - 16,000 Hz |
| THD, Total Harmonic Distortion | = 0.9% |
| Transducer Principle | Dynamic |
| Weight | 330 g (0.73 lbs) |
| Pick-up Pattern | Cardioid |
| Nominal Impedance | 300 O (at 1 kHz) |
| Min. Terminating Impedance | 1 kO |
| Storage Temperature | –20°C to +70°C |
| Operating Temperature | 0°C to +40°C |
| Signal-to-Noise Ratio | = 103 dBA |
| Switching Bandwidth | Up to 24 MHz |
| Modulation | Wideband FM |
| Frequency | 80 factory presets (8 banks of 10 channels each) |
| Sensitivity | 1.8 mV/Pa (free field, no load at 1 kHz) |
| Synchronization | Transmitter: 2.4 GHz, low power OQPSK (only active during synchronization) |
| Temperature Range | 0 °C ... +40 °C (+32 °F ... +104 °F) |
| Frequency Range | 821-832 / 863-865 MHz |
EM-XSW 1 DUAL Tech Spec
| Features | Specifications | Dimensions | approx. 320 x 126.5 x 42 mm |
|---|---|
| Weight | Approx. 620 g |
| Power Supply | 12 V DC nom. / 300 mA |
| Output Voltage | (at peak deviation, 1 kHz AF) 1/4“ (6.3 mm) socket (unbalanced): +6 dBu |
| Housing | Rugged ABS housing |
| Sensitivity | < 3 µV at 52 dB(A) rms S/N (at peak deviation) |
| Squelch | Adjustable from 3 dBµV to 28 dBµV |
| AF frequency response | 50 to 16,000 Hz (–3 dB) |
| Audio Adjustment Range | 45 dB, adjustable in 5 dB steps |
| Line / Mic Level | 20 dB, switchable |
| Receiver Principle | Double superheterodyne |
| Diversity Principle | Antenna switching diversity via internal antennas |
SKM 825-XSW Tech Spec
| Features | Specifications | Dimensions | Approx. 260 x 50 mm |
|---|---|
| Microphone | Dynamic |
| Weight | Approx. 245 g |
| Pick-Up Pattern | Cardioid |
| RF Output Power | 10 mW |
| Operating Time | Approx. 10 hrs |
| Power Supply | 2 AA size batteries, 1.5 V |
| Housing | Rugged ABS Housing |
| Sensitivity | 0 to -30 dB, adjustable in 10 dB steps |
| Input Sensitivity | 1.5 mV / Pa |
| AF Frequency Response | 80-16,000 Hz |
