Sennheiser EW-DX SK / SKM-S Base Set (S1-10)
Sennheiser EW-DX SK-SKM-S Base Set (S1-10 606.2 - 693.8 MHz)
Email me when the availability or price changes
Finance this product
- From £45.82 / month (APR 16.9%) or 0% for 4 months
- With a 10% deposit from just £43.18 / month (APR 19.9%)
Evolution Wireless Digital
Sennheiser - EW-DX SK-SKM-S BASE Set
(S1-10) 606.2 - 693.8 MHz
Flexibility for Those Who Want to Choose

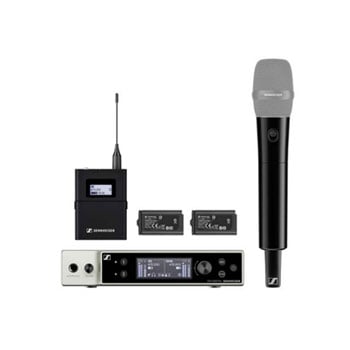

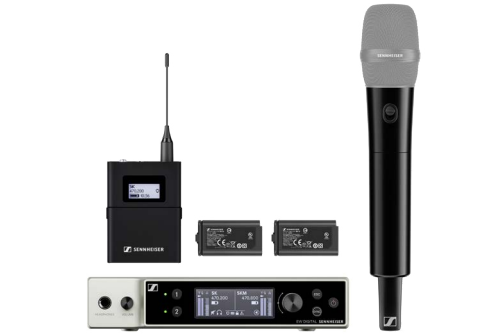

the Capsule That Best Meets Their NeedsSennheiser's EW-DX MKE2 Evolution Wireless Digital Set marks the next generation in onstage digital wireless sets. Featuring ground-breaking tech and revolutionary features across the board, give your performance the wireless kit it deserves! Wireless bodypack base set consisting of 1 x EW-DX SKM-S (handheld with mute switch), 1 x EW-DX SK (wireless
bodypack transmitter), 1 x EW-DX EM 2 rackmout receiver (2 channels) and 2 x BA 70 rechargeable batteries. Microphone
capsules are sold separately.
what's included?
• EW-DX EM 2 rack receiver
• EW-DX SK bodypack transmitter
• EW-DX SKM-S
• 2 rod antennas
• Power supply with country adapters
• GA 3 rackmount set
• 4 rubber feet
• 2 BA 70 rechargeable battery packs
• Quick guide
• Safety guide
• Manufacturer declaration sheet
Introducing EW-DX | Sennheiser
Focus less on the wireless and more on the audio. Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease.
With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly.
System Tech Spec
| Features | Specification | Audio link frequency range | (S1-10) 606.2 - 693.8 MHz |
|---|---|
| Bluetooth® Low Energy (BLE) frequency range | 2402 - 2480 MHz |
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| Audio THD | ≤ -60 dB for 1 kHz @ -3 dBfs input level |
| Dynamic range | 134 dB |
| System latency | 1.9 ms |
| Operating temperature | -10 °C - +55 °C (14 °F - 131 °F) |
| Relative humidity | 5 - 95 % (non-condensing) |
EW-DX EM 2 (Rack Receiver) Tech Spec
| Features | Specification | Input voltage | 11 - 13 V ⎓ or PoE IEEE 802.3af Class 0 (CAT5e or higher) |
|---|---|
| Input current | ≤ 1 A |
| Transmit power (radiated) | BLE: max. 10 mW EIRP |
| Audio output power | 18 dBu max |
| Headphone output | 2x 70 mW @ 32 Ω |
| Ethernet | RJ-45 socket, IEEE802.3 100Base-TX (half+full duplex) 10Base-T (half+full duplex) (CAT5e or higher) |
| Dimensions | 212 x 44 x 189 mm (8.35" x 1.73" x 7.44") |
| Weight | approx. 1000 g (2.2 lbs) (without antennas and power supply) |
EW-DX SK (Bodypack Transmitter) Tech Spec
| Features | Specification | Input voltage | 2.0 - 4.35 V |
|---|---|
| Input current | < 300 mA |
| Power supply | 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack |
| Occupied bandwidth | 200 kHz |
| Transmit power (radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) LD mode: 10 mW ERP BLE: max. 10 mW EIRP |
| Dimensions (without antenna) | 63.5 x 85 x 20 mm (2.5" x 3.35" x 0.79") |
| Weight (without batteries) | approx. 115-120 g (0.26- 0,27 - lbs) |
EW-DX SKM-S (Handheld Transmitter) Tech Spec
| Features | Specification | Input voltage | 2.0 - 4.35 V |
|---|---|
| Input current | < 300 mA |
| Power supply | 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack |
| Occupied bandwidth | 200 kHz |
| Transmit power (radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP |
| Dimensions (ø x l) (incl. MMD 835 microphone module) (without microphone module) | 50 x 268 mm (1.97" x 10.55") 40 x 200 mm (1.57" x 7.87") |
