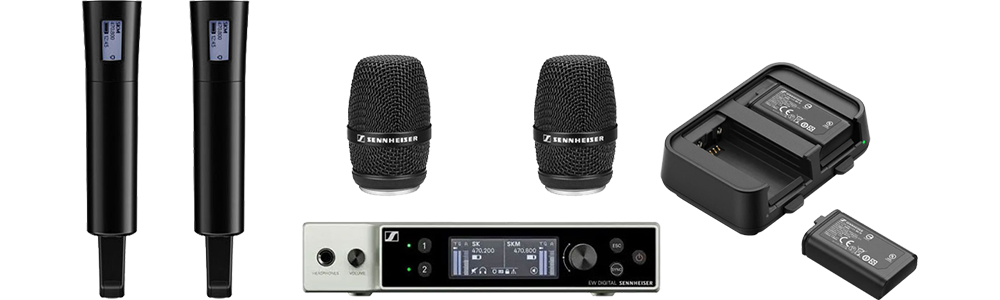

Sennheiser EW-DX EM (U1/5) Receiver, EW-DX SKM (U1/5) Transmitters with MMK 965 and charge kit
Sennheiser - EW-DX EM (U1/5) Receiver, EW-DX SKM (U1/5) Transmitters with MMK 965 Mic Capsules, EWD Charge kit
Email me when the availability or price changes
Finance this product
- From £68.21 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £60.42 / month (APR 15.9%)
Sennheiser - EW-DX EM 2 Wireless Receiver with EW-DX SKM (U1/5) Transmitters
MMK 965 Switchable Condenser Microphone Capsules and Charging Kit
Sennheiser EW-DX EM 2 (U1/5 - 823.2 - 831.8 MHz & 863.2 - 864.8 MHz) Wireless ReceiverSennheiser’s EW-DX removes the complexities out of wireless audio by employing sophisticated tools that streamline the setup and monitoring process for an overall greater workflow. With the press of a button, Auto Scan automatically assigns channels using an equidistant tuning grid that allow you to pack more channels more reliably, without problematic intermodulation interference.
Take control of the system from your mobile device via the Sennheiser Smart Assist app or utilize advanced software options like Wireless Systems Manager (WSM) and Sennheiser Control Cockpit for a detailed system view in complex, networked environments. Evolution Wireless Digital is a system that evolves with you. Choose from multiple hardware options, including 2-channel half-rack (9,5") or 4-channel full-rack (19") receivers to right-size your needs today, while keeping expansion open for tomorrow.
Sennheiser EW-DX SKM Handheld Transmitter without Switch
(U1/5 - 823.2 - 831.8 MHz & 863.2 - 864.8 MHz)Sennheiser’s EW-DX SKM is a digital handheld wireless transmitter/mic compatible with EW-DX wireless receivers. The perfect choice for a broad range of professional performance and presentation applications, the transmitter is seen here without the capsule included, leaving you free to choose the one that best suited to your application. Lightweight and comfortable for performers and presenters to hold, the transmitter features a rugged, all-metal housing built to withstand daily use on stage!
Sennheiser MMK 965 Condenser Microphone CapsuleSennheiser's unrivaled experience in the fields of acoustics and stage technology is evident when listening to this large-diaphragm, true condenser capsule. Its powerful, high-definition sound makes it one of the best microphone heads of all time. Due to its dual-membrane technology, the pick-up pattern can be easily switched between cardioid and super-cardioid for extreme versatility. Compatible with all hand-held transmitters from the ew G3, 2000 as well as the Digital 9000 series, it can be installed in seconds without tools.
Sennheiser EW-D Charging KitVersatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound.
Transmitter Features
• 10mW RF power with up to 100m/328ft working range
• Charging contacts for in-device charging with CHG 70N
• Persistent eInk display - parameters visible on screen even when device is not powered on
• Programmable mute switch on EW-DX SKM-S - customize the device depending on your professional needs
• Function buttons - control all the transmitter settings directly from handheld microphone
• Extended runtime with lithium-ion batteries - up to 12 hours operation time
• Standard capsule interface - compatible with a wide range of Sennheiser and Neumann capsules
• Mic input trim control
• Metal housing
what's included?
• 1 x EW-DX EM 2 (U1/5 - 823.2 - 831.8 MHz & 863.2 - 864.8 MHz) Wireless Receiver
• 2 x EW-DX SKM Handheld Transmitter
• 2 x MMK 965 Switchable Condenser Microphone Capsule
• 1 x Sennheiser EW-D Charging Kit
Sennheiser EW-DX EM 2 Receiver
The Tech Spec
| Features | Specification | Audio link frequency ranges | U1/5 - 823.2 - 831.8 MHz & 863.2 - 864.8 MHz |
|---|---|
| Bluetooth® Low Energy (BLE) frequency range | 2402 - 2480 MHz |
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| Audio THD | ≤ -60 dB for 1 kHz @ -3 dBfs input level |
| Dynamic range | 134 dB |
| System latency | 1.9 ms |
| Operating temperature | -10 °C - +55 °C (14 °F - 131 °F) |
| Relative humidity | 5 - 95 % (non-condensing) |
| Input voltage | 11 - 13 V ⎓ or PoE IEEE 802.3af Class 0 (CAT5e or higher) |
| Input current | ≤ 1 A |
| Transmit power (radiated) | BLE: max. 10 mW EIRP |
| Audio output power | 18 dBu max. |
| Headphone output | 2x 70 mW @ 32 Ω |
| Ethernet | RJ-45 socket, IEEE802.3 100Base-TX (half+full duplex) 10Base-T (half+full duplex) (CAT5e or higher) |
| Dimensions | 212 x 44 x 189 mm (8.35" x 1.73" x 7.44") |
| Weight | approx. 1000 g (2.2 lbs) |
EW-DX SKM (U1/5) Transmitter
The Tech Spec
| Features | Specification | Audio link frequency ranges | U1/5 - 823.2 - 831.8 MHz & 863.2 - 864.8 MHz |
|---|---|
| Bluetooth® Low Energy (BLE) frequency range | 2402 - 2480 MHz |
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| Audio THD | ≤ -60 dB for 1 kHz @ -3 dBfs input level |
| Dynamic range | 134 dB |
| System latency | 1.9 ms |
| Operating temperature | -10 °C - +55 °C (14 °F - 131 °F) |
| Relative humidity | 5 - 95 % (non-condensing) |
| Input voltage | 2.0 - 4.35 V |
| Input current | < 300 mA |
| Transmit power (radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) LD mode: 10 mW ERP BLE: max. 10 mW EIRP |
| Dimensions | (without microphone module) - 40 x 200 mm (1.57" x 7.87") |
| Weight (without batteries) | (without microphone module) - approx. 195 g (7.14 lbs) |
MMK 965 Capsule
The Tech Spec
| Features | Specification | Microphone | externally polarized condenser microphone |
|---|---|
| Pick-up pattern | cardioid/ super cardioid, switchable |
| Sound pressure level (SPL) | 144/150 dB |
| Sensitivity | 1,8/5,7 mV/Pa |
Sennheiser L 70 USB Charger
The Tech Spec
| Features | Specification | Suitable for | Sennheiser B 70 Battery Packs |
|---|---|
| Charging ports | x2 |
| Dimensions | 140mm (L) x 115mm (W) x 80mm (H) |
| Weight | 329g |
Sennheiser BA 70 Rechargeable Battery
The Tech Spec
| Features | Specification | Suitable for | Sennheiser EW-D SK Wireless Bodypack, Sennheiser EW-D SKM-S Wireless Transmitter, Sennheiser L 70 USB Charger |
|---|---|
| Battery type | Lithium Ion |
| Dimensions | 77mm (L) x 62mm (W) x 37mm (H) |
| Weight | 57g |
