Sennheiser EW-DX EM (S1-10) Receiver, EW-DX SK Transmitters and Proel Headset Bundle and Charge kit
Sennheiser - EW-DX EM (S1-10) Receiver, 2x EW-DX SK 3-Pin (S1-10) Transmitter, 2x Proel Headsets, EWD Charge kit
Email me when the availability or price changes
Finance this product
- From £49.88 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £44.18 / month (APR 15.9%)
Sennheiser - EW-DX EM 2 (S1-10 - 606.2 - 693.8 MHz) Wireless Receiver
EW-DX SK 3-Pin (S1-10) Bodypack Transmitter
Proel Condenser Headset Microphone & Charging Kit Bundle
Sennheiser EW-DX EM (S1-10) Dual Channel Wireless ReceiverSennheiser’s EW-DX removes the complexities out of wireless audio by employing sophisticated tools that streamline the setup and monitoring process for an overall greater workflow. With the press of a button, Auto Scan automatically assigns channels using an equidistant tuning grid that allow you to pack more channels more reliably, without problematic intermodulation interference.
Take control of the system from your mobile device via the Sennheiser Smart Assist app or utilize advanced software options like Wireless Systems Manager (WSM) and Sennheiser Control Cockpit for a detailed system view in complex, networked environments. Evolution Wireless Digital is a system that evolves with you. Choose from multiple hardware options, including 2-channel half-rack (9,5") or 4-channel full-rack (19") receivers to right-size your needs today, while keeping expansion open for tomorrow.
Sennheiser EW-DX SK 3-Pin (S1-10) Bodypack TransmitterThis compact and versatile bodypack transmitter is designed for use with Evolution Wireless Digital receivers and features a 3-pin connector, 10mW RF power with up to 100m/328ft working range, charging contacts for in-device charging with CHG 70N and mic input trim control. A persistent eInk display shows parameters visible on screen even when device is not powered on. The programmable mute switch can be set depending on your professional needs. All this comes in a rugged metal housing.
Proel Condenser Headset MicrophoneThe Proel headset features a very small, and super light-weight flexible miniature microphone with a 3.5 mm permanently polarized condenser capsule. Along with a comfortable and secture fit, the double vent protection system makes it perfect for use in theatre and spoken word applications. 3 adaptors are also included (AD4SH-AD3SE-AD3AK).

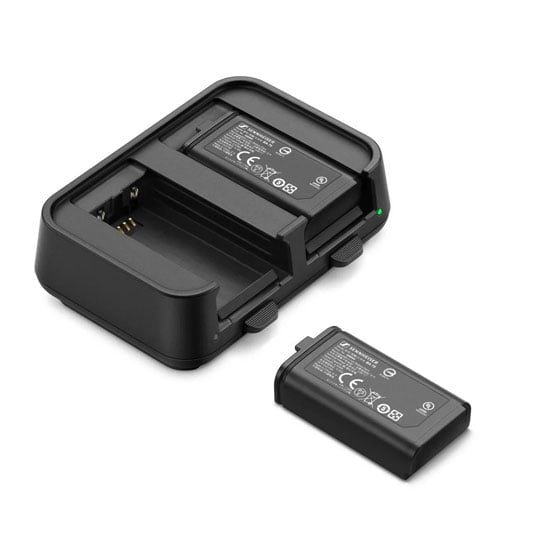

Sennheiser EW-D Charging KitVersatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound.

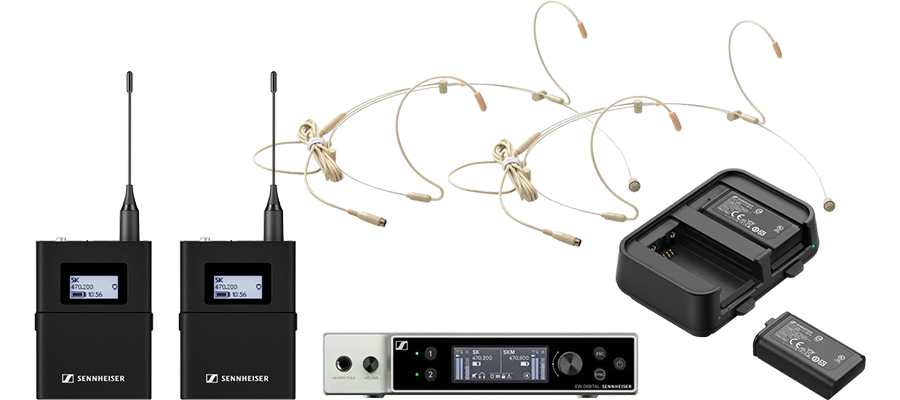

what's included?
• 1 x Sennheiser EW-DX EM 2 Rack Receiver
• 2 x Sennheiser EW-DX SK 3-Pin (S1-10) Bodypack Transmitter
• 2 x Proel HCM08PRO Miniature Condenser Omni-Directional Headset Microphone
• 1 x Sennheiser EW-D Charging Kit
Sennheiser EW-DX EM 2 Receiver
The Tech Spec
| Features | Specification | Audio link frequency ranges | S1-10: 606.2 - 693.8 MHz |
|---|---|
| Bluetooth® Low Energy (BLE) frequency range | 2402 - 2480 MHz |
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| Audio THD | ≤ -60 dB for 1 kHz @ -3 dBfs input level |
| Dynamic range | 134 dB |
| System latency | 1.9 ms |
| Operating temperature | -10 °C - +55 °C (14 °F - 131 °F) |
| Relative humidity | 5 - 95 % (non-condensing) |
| Input voltage | 11 - 13 V ⎓ or PoE IEEE 802.3af Class 0 (CAT5e or higher) |
| Input current | ≤ 1 A |
| Transmit power (radiated) | BLE: max. 10 mW EIRP |
| Audio output power | 18 dBu max. |
| Headphone output | 2x 70 mW @ 32 Ω |
| Ethernet | RJ-45 socket, IEEE802.3 100Base-TX (half+full duplex) 10Base-T (half+full duplex) (CAT5e or higher) |
| Dimensions | 212 x 44 x 189 mm (8.35" x 1.73" x 7.44") |
| Weight | approx. 1000 g (2.2 lbs) |
Sennheiser EW-DX SK Transmitter
The Tech Spec
| Features | Specification | Microphone connection | LEMO/3-Pin |
|---|---|
| Battery type | rechargeable, AA |
| Battery life (approx.) | 11-15 hours |
| Frequency band | Sennheiser S1-10 (606.2 - 693.8 MHz) |
| Channel | 38 (606 - 614 MHz), 39 (614 - 622 MHz), 40 (622 - 630 MHz), 41 (630 - 638 MHz), 42 (638 - 646 MHz), 43 (646 - 654 MHz), 44 (654 - 662 MHz), 45 (662 - 670 MHz), 46 (670 - 678 MHz), 47 (678 - 686 MHz), 48 (686 - 694 MHz) |
| PAD switch | yes |
| Type of frequency band | 600 - 699 MHz |
| Volume control | yes |
| Equipped with display | yes |
| Weight (incl. packaging) | 220 gr |
| Dimensions (incl. packaging) | 17.0 x 6.5 x 3.0 cm |
Proel HCM08PRO Headset
The Tech Spec
| Features | Specification | Transducer Type | Back electret condenser |
|---|---|
| Polar Pattern | Omni-directional |
| Dimension Ø | 3.5 mm |
| Frequency Response | 20Hz - 20KHz |
| Sensitivity | -45dB± 3dB |
| S/N Ratio | >70dB |
| Nominal Impedance | 1500 ohm ± 30% |
| Power Supply | 1.5V-10V |
| Connectors | 3.5mm plug, 3-pin mini XLR, 4-pin mini XLR |
| Colour | Skin |
| Accessories | Metal Windscreen |
Sennheiser L 70 USB Charger
The Tech Spec
| Features | Specification | Suitable for | Sennheiser B 70 Battery Packs |
|---|---|
| Charging ports | x2 |
| Dimensions | 140mm (L) x 115mm (W) x 80mm (H) |
| Weight | 329g |
Sennheiser BA 70 Rechargeable Battery
The Tech Spec
| Features | Specification | Suitable for | Sennheiser EW-D SK Wireless Bodypack, Sennheiser EW-D SKM-S Wireless Transmitter, Sennheiser L 70 USB Charger |
|---|---|
| Battery type | Lithium Ion |
| Dimensions | 77mm (L) x 62mm (W) x 37mm (H) |
| Weight | 57g |
