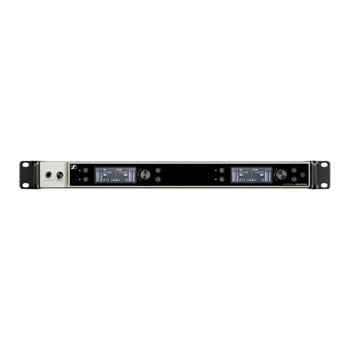

Sennheiser EW-DX EM 4 Dante (S1-10)
Sennheiser EW-DX EM 4 Dante Wireless Full-Rack Receiver (S1-10 - 606.2 - 693.8 MHz)
Wireless Full-Rack Receiver
Sennheiser - EW-DX EM 4 Dante
(S1-10 - 606.2 - 693.8 MHz)
4 channel full rack (19") receiver with Dante
for use with Evolution Wireless Digital TransmittersSennheiser’s EW-DX removes the complexities out of wireless audio in the performance arena by utilising sophisticated tools that streamline the setup and monitoring process. With the press of a button, Auto Scan automatically assigns channels using an equidistant tuning grid that allow you to pack more channels more reliably, without problematic intermodulation interference.
Take control of the system from your mobile device via the Sennheiser Smart Assist app or utilize advanced software options like Wireless Systems Manager (WSM) and Sennheiser Control Cockpit for a detailed system view in complex, networked environments.
Ready to scale, ready to deliverEvolution Wireless Digital is a system that evolves with you. Choose from multiple hardware options, including 2-channel half-rack (9,5") or 4-channel full-rack (19") receivers to right-size your needs today, while keeping expansion open for tomorrow.
what's included?
• 1 x EW-DX EM 4 Rack Receiver
• 2 x Rod Antennas
• 1 x Power Supply with Country Adapters
• 1 x GA 3 Rackmount Set
• 4 x Rubber Feet
• 1 x Quick Guide
• 1 x Safety Guide
• 1 x Manufacturer Declaration Sheet
The Tech Spec
| Features | Specification | Audio link frequency ranges | S1-10: 606.2 - 693.8 MHz |
|---|---|
| Bluetooth® Low Energy (BLE) frequency range | 2402 - 2480 MHz |
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| Audio THD | ≤ -60 dB for 1 kHz @ -3 dBfs input level |
| Dynamic range | 134 dB |
| System latency | 1.9 ms |
| Operating temperature | -10 °C - +55 °C (14 °F - 131 °F) |
| Relative humidity | 5 - 95 % (non-condensing) |
| Input voltage | 11 - 13 V ⎓ or PoE IEEE 802.3af Class 0 (CAT5e or higher) |
| Input current | ≤ 1 A |
| Transmit power (radiated) | BLE: max. 10 mW EIRP |
| Audio output power | 18 dBu max. |
| Headphone output | 2x 70 mW @ 32 Ω |
| Ethernet | RJ-45 socket, IEEE802.3 100Base-TX (half+full duplex) 10Base-T (half+full duplex) (CAT5e or higher) |
