Sennheiser EW-DX E865 Dual Handheld Set (S1-10)
Sennheiser - EW-DX Dual 865 Set (S1-10 - 606.2 - 693.8 MHz) Handheld Condenser
Email me when the availability or price changes
Finance this product
- From £54.28 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £48.08 / month (APR 15.9%)
Sennheiser - EW-DX 865 Handheld Set
(S1-10 - 606.2 - 693.8 MHz)
the pinnacle of wireless technologySennheiser's EW-DX865-S Evolution Wireless Digital Set marks the next generation in onstage digital wireless sets. Featuring ground-breaking tech and revolutionary features across the board, give your performance the wireless kit it deserves! This set consists of the EW-DX SKM-S Digital Wireless Handheld Transmitter (S1-10), EW-DX EM 2 Wireless Half-Rack Receiver (S1-10 – 606.2 – 693.8 MHz) and the MME 865 Supercardioid Condenser Mic Capsule.
at a glance
• 2x Sennheiser - EW-DX SKM-S
• 1x Sennheiser - EW-DX EM (S1-10) Dual Channel
• 2x Sennheiser - MME865 Supercardioid Condenser Mic Capsule
Wireless Receiver
Sennheiser - EW-DX EM 2
(S1-10 - 606.2 - 693.8 MHz)
2 CHANNEL RECEIVER
FOR USE WITH
EVOLUTION WIRELESS DIGITAL TRANSMITTERSSennheiser’s EW-DX removes the complexities out of wireless audio by employing sophisticated tools that streamline the setup and monitoring process for an overall greater workflow. With the press of a button, Auto Scan automatically assigns channels using an equidistant tuning grid that allow you to pack more channels more reliably, without problematic intermodulation interference.
Take control of the system from your mobile device via the Sennheiser Smart Assist app or utilize advanced software options like Wireless Systems Manager (WSM) and Sennheiser Control Cockpit for a detailed system view in complex, networked environments.
Ready to scale, ready to deliverEvolution Wireless Digital is a system that evolves with you. Choose from multiple hardware options, including 2-channel half-rack (9,5") or 4-channel full-rack (19") receivers to right-size your needs today, while keeping expansion open for tomorrow.
what's included?
• 1 x EW-DX EM 2 Rack Receiver
• 2 x Rod Antennas
• 1 x Power Supply with Country Adapters
• 1 x GA 3 Rackmount Set
• 4 x Rubber Feet
• 1 x Quick Guide
• 1 x Safety Guide
• 1 x Manufacturer Declaration Sheet

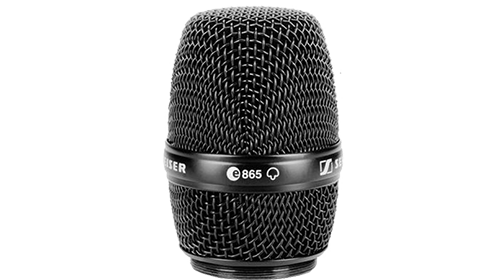

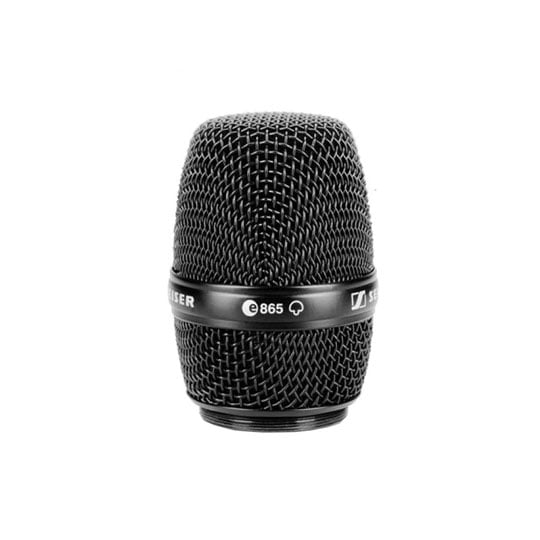

Microphone Module with Capacitor Technology
Sennheiser - MME 865
featuring capacitor technologyMicrophone module with capacitor technology. With high presence and feedback rejection, it is ideally suited to vocals and speech transmission. Compatible with all handheld transmitters from the ew G3, ew G4, D1, AVX, SpeechLine Digital Wireless and 2000 series.
152 dBMax SPL
Super CardioidPick-up Pattern
1,6 mV/PaAF Sensitivity
at a glance
• Fits Sennheiser EW, Digital 6000, Digital 9000, and 2000 series wireless transmitters
• Capacitor-driven Condenser head built for speech clarity
Handheld Transmitter with Switch
Sennheiser - EW-DX SKM-S
(S1-10 - 606.2 - 693.8 MHz)
handheld transmitter for use with a companion receiver
as part of a digital wireless RF transmission systemSennheiser’s EW-DX SKM-S is a digital handheld wireless transmitter/mic compatible with EW-DX wireless receivers. The perfect choice for a broad range of professional performance and presentation applications, the transmitter is seen here without the capsule included, leaving you free to choose the one that best suited to your application.
Lightweight and comfortable for performers and presenters to hold, the transmitter features a rugged, all-metal housing built to withstand daily use on stage!.
at a glance
• 10mW RF power with up to 100m/328ft working range
• Charging contacts for in-device charging with CHG 70N
• Persistent eInk display - parameters visible on screen
even when device is not powered on
• Programmable mute switch on EW-DX SKM-S - customize the device depending on your professional needs
• Function buttons - control all the transmitter settings
directly from handheld microphone
• Extended runtime with lithium-ion batteries - up to 12
hours operation time
• Standard capsule interface - compatible with a wide
range of Sennheiser and Neumann capsules
• Mic input trim control
• Metal housing
what's included?
• 1 x EW-DX SKM-S Handheld Transmitter
• 1 x MZQ 1 Microphone Clamp
• 1 x Batteries Set (AA)
• 1 x Quick Guide
• 1 x Safety Guide
• 1 x Manufacturer Declaration Sheet
Sennheiser - EW-DX EM 2
The Tech Spec
| Features | Specification | Audio link frequency ranges | S1-10: 606.2 - 693.8 MHz |
|---|---|
| Bluetooth® Low Energy (BLE) frequency range | 2402 - 2480 MHz |
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| Audio THD | ≤ -60 dB for 1 kHz @ -3 dBfs input level |
| Dynamic range | 134 dB |
| System latency | 1.9 ms |
| Operating temperature | -10 °C - +55 °C (14 °F - 131 °F) |
| Relative humidity | 5 - 95 % (non-condensing) |
| Input voltage | 11 - 13 V ⎓ or PoE IEEE 802.3af Class 0 (CAT5e or higher) |
| Input current | ≤ 1 A |
| Transmit power (radiated) | BLE: max. 10 mW EIRP |
| Audio output power | 18 dBu max. |
| Headphone output | 2x 70 mW @ 32 Ω |
| Ethernet | RJ-45 socket, IEEE802.3 100Base-TX (half+full duplex) 10Base-T (half+full duplex) (CAT5e or higher) |
| Dimensions | 212 x 44 x 189 mm (8.35" x 1.73" x 7.44") |
| Weight | approx. 1000 g (2.2 lbs) |
Sennheiser - MME 865
The Tech Spec
| Features | Specification | Sound pressure level (SPL) | 152 dB |
|---|---|
| Pick-up pattern | Super Cardioid |
| Transducer principle | Condenser |
| Sensitivity | 1,6 mV/Pa |
Handheld Transmitter with Switch
Sennheiser - EW-DX SKM-S
(S1-10 - 606.2 - 693.8 MHz)
The Tech Spec
| Features | Specification | Audio link frequency ranges | S1-10 - 606.2 - 693.8 MHz |
|---|---|
| Bluetooth® Low Energy (BLE) frequency range | 2402 - 2480 MHz |
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| Audio THD | ≤ -60 dB for 1 kHz @ -3 dBfs input level |
| Dynamic range | 134 dB |
| System latency | 1.9 ms |
| Operating temperature | -10 °C - +55 °C (14 °F - 131 °F) |
| Relative humidity | 5 - 95 % (non-condensing) |
| Input voltage | 2.0 - 4.35 V |
| Input current | < 300 mA |
| Transmit power (radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) LD mode: 10 mW ERP BLE: max. 10 mW EIRP |
| Dimensions | (without microphone module) - 40 x 200 mm (1.57" x 7.87") |
| Weight (without batteries) | (without microphone module) - approx. 195 g (7.14 lbs) |
