Sennheiser EW-D SKM-S (U1/5) Wireless Handheld Base System, MMD 835-1 Capsule and EW-D Charging Kit
Sennheiser - EW-D SKM-S Wireless Handheld Base System - (U1/5) with MMD 835-1 Capsule and EW-D Charging Kit
Email me when the availability or price changes
Finance this product
- From £23.08 / month (APR 16.9%) for 36 months or 0% for 4 months
- With a 10% deposit from just £16.46 / month (APR 15.9%)
- SCANPROTECT Protect against installation damage for 28 days.
Sennheiser - EW-D SKM-S (U1/5) Wireless Handheld Base System
with MMD 835-1 Capsule and EW-D Charging Kit
Sennheiser EW-D SKM-S BASE SET (U1/5)The Sennheiser EW-D SKM-S Base set is a versatile and feature-rich digital wireless system, perfect for those who sing or speak and allows for seamless product pairing and management using the EW-D Smart Assist App. The auto scan feature creates reliable connections with minimal time and effort and 2,240 selectable frequencies allow additional for fine tuning. Built within a metal housing, the robust bodypack transmitter is perfectly suited to withstand the rigours of daily use on stage.

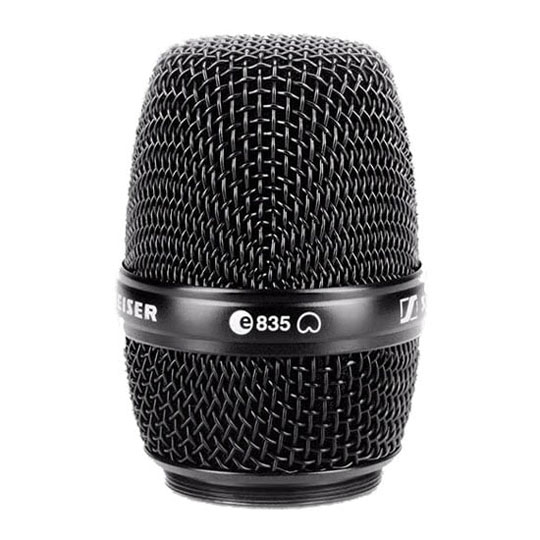

Sennheiser MMD 835-1 BK Microphone CapsuleThe Sennheiser MMD 835-1 BK is a microphone module from the renowned evolution 800 series, featuring consistent pick-up pattern (cardioid) and powerful sound for a wide variety of applications. Compatible with all handheld transmitters from the ew G3, ew G4, D1, AVX, SpeechLine Digital Wireless and 2000 series.

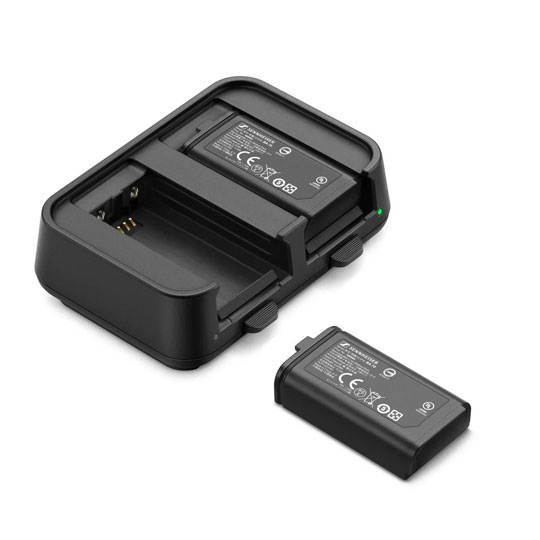

Sennheiser EW-D Charging KitVersatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound.
EW-D SKM-S At a glance
• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
What's Included?
• EW-D EM rack receiver and EW-D SKM handheld transmitter
• Power supply with country adapters
• 2 rod antennas
• Rackmount set
• 4 rubber feet
• Quick guide and safety guide
• Manufacturer declaration sheet
• MMD 835-1 BK Microphone Capsule
• 1 x L 70 USB charger
• 2 x BA 70 rechargeable battery packs
Raising The Bar
New StandardsEvolution Wireless Digital pushes the boundaries by delivering even more dynamic range than any other wireless system currently available.
Automatically securing the most reliable signal in just a few seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it becomes obvious why this wireless system is in a class of its own.
Simpler Than It Sounds
Consistent QualityEvolution Wireless Digital features an equidistant tuning grid taken from the flagship Digital 6000 and Digital 9000 wireless systems.
Quality components with incredible linearity remove intermodulation between EW-D transmitters, enabling frequencies to be equally spaced every 600 kHz alongside each other.
Providing simplified frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.
An Engineer In Your Pocket
Bluetooth ConvenienceThe power of Bluetooth Low Energy gives you full control right in the palm of your hand with the Sennheiser Smart Assist app.
Make the most of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.
Wireless System Tech Spec
| Features | Specification | Frequency Range | 823.2 - 831.8 MHz & 863.2 - 864.8 MHz |
|---|---|
| THD, Total Harmonic Distortion | ≤ -60 dB for 1 kHz @ -3 dBfs input level |
| Operating Temperature | -10 °C - +55 °C (14 °F - 131 °F) |
| Operating Relative Humidity | 5 - 95 % (non-condensing) |
| Audio Frequency Response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| System Latency | 1.9 ms |
EW-D EM Tech Spec
| Features | Specifications | Current Consumption | ≤ 300 mA |
|---|---|
| Input Voltage Range | 11 - 13 V ⎓ |
| Audio Output Level | 18 dBu max. |
| Transmission Power | BLE: max. 10 mW EIRP |
| Dimensions | 212 x 44 x 189 mm |
| Weight | approx. 1000 g (without antennas and power supply) |
EW-D SKM-S Tech Spec
| Features | Specifications | Power Supply | 2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack |
|---|---|
| Current Consumption | < 300 mA |
| Input Voltage Range | 2.0 - 4.35 V |
| Transmission Power | Audio link: 10 mW ERP (Range Y1-3): 12 mW ERP BLE: max. 10 mW EIRP |
| Dimensions | 50 x 268 mm (incl. MMD 835 microphone module) 40 x 200 mm (without microphone module) |
| Weight | approx. 304 g (incl. MMD 835 microphone module) approx. 195 g (without microphone module) |
MMD 835-1 Tech Spec
| Features | Specification | Type | Dynamic Capsule |
|---|---|
| Compatibility | Sennheiser EW G4, EW-D, AVX, SpeechLine Handheld Transmitters |
| Polar Pattern | Cardioid |
| Max SPL | 154dB |
| Frequency Range | 80Hz - 18kHz |
L 70 Tech Spec
| Features | Specification | Suitable for | Sennheiser B 70 Battery Packs |
|---|---|
| Charging ports | x2 |
| Dimensions | 140mm (L) x 115mm (W) x 80mm (H) |
| Weight | 329g |
BA 70 Tech Spec
| Features | Specification | Suitable for | Sennheiser EW-D SK Wireless Bodypack, Sennheiser EW-D SKM-S Wireless Transmitter, Sennheiser L 70 USB Charger |
|---|---|
| Battery type | Lithium Ion |
| Dimensions | 77mm (L) x 62mm (W) x 37mm (H) |
| Weight | 57g |
