Sennheiser- EW-D ME4 Set (S1-7) Wireless Lavalier System

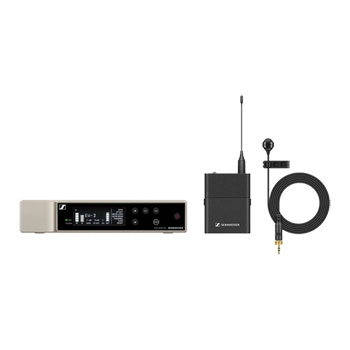

Sennheiser EW-D ME4 Set (S1-7) Stationary Receiver, Bodypack Transmitter & Clip-On Microphone
- SCANPROTECT Protect against installation damage for 28 days. More info
Stationary Receiver, Bodypack Transmitter & Clip-On Microphone
Sennheiser - EW-D ME4 SET
(S1-7)
All-in-one digital wireless lavalier setVersatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Built within a rugged metal enclosure, the robust bodypack transmitter and unobstrusive clip-on microphone ME 4 (cardioid) with high speech intelligibility is perfectly suited for daily use on stage.
at a glance
• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
• Auto scan creates reliable connections with minimal time and effort
• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
• 2,240 selectable frequencies allow for fine tuning
• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)
Features To Make Life Easy!
Raising the barEvolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.
Equidistant SpacingEvolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.
An engineer in your pocketThe power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.
What's In The Box?
what's included?
• EW-D EM rack receiver
• EW-D SK bodypack transmitter
• ME 4 lavalier microphone (cardioid)
• 2 rod antennas
• power supply with country adapters
• rackmount set
• 4 rubber feet
• quick guide
• safety guide
• manufacturer declaration sheet
The Tech Spec
| Features | Specification | Frequency range | 606.2 - 662 MHz |
|---|---|
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| Operating temperature | -10 °C - +55 °C (14 °F - 131 °F) |
| THD, total harmonic distortion | ≤ -60 dB for 1 kHz @ -3 dBfs input level |
| Operating relative humidity | 5 - 95 % (non-condensing) |
| EW-D EM | Dimensions - 212 x 44 x 189 mm Current consumption - ≤ 300 mA Transmission power - BLE: max. 10 mW EIRP Weight - approx. 1000 g (without antennas and power supply) Input voltage range - 11 - 13 V ⎓ Audio output level - 18 dBu max. |
| EW-D SK | 63 x 80 x 20 mm (without antenna) Power supply - 2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack Input voltage range - 2.0 - 4.35 V Weight - approx. 120 g Current consumption - < 300 mA Transmission power - Audio link: 10 mW, ERP (Range Y1-3): 12 mW ERP, BLE: max. 10 mW EIRP |
| ME 4 | Connector - 3.5 mm jack Frequency response - 50 to 18,000 Hz Max. sound pressure level - 120 dB Cable length - approx. 1.60 m Transducer principle - pre-polarized condensor microphone Pick-up pattern - cardioid Sensitivity in free field, no load (1kHz) - 40 mV/Pa Equivalent noise level - 31 dB Power supply - 7.5 V |
