Sennheiser - EW-D ME3 Set (U1-5) Wireless Headset system
Sennheiser EW-D ME3 Set (U1-5), Wireless Headset system, Frequency range 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
- SCANPROTECT Protect against installation damage for 28 days. More info
All-In-One Digital Wireless Lavalier Set
Sennheiser - EW-D ME3
(U1-5)
Wireless Headset system Sennheiser’s EW-D ME3 is a hugely versatile and feature-rich digital wireless system for those who speak or present that allows for seamless product pairing and management via the EW-D Smart Assist App. Featuring a tough metal housing, the robust bodypack transmitter and unobtrusive clip-on microphone ME 3 (cardioid) with high speech intelligibility suit perfectly for daily use on stage.
at a glance
• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
• Auto scan creates reliable connections with minimal time and effort
• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
• 2,240 selectable frequencies allow for fine tuning
• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)
Features To Make Life Easy!
Raising the barEvolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.
Equidistant SpacingEvolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.
An engineer in your pocketThe power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.

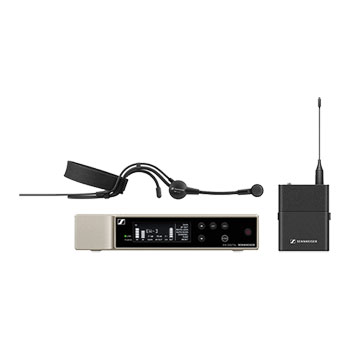

What's In The Box?
WHAT'S INCLUDED?
• EW-D EM rack receiver
• EW-D SK bodypack transmitter
• ME 3 headset microphone (cardioid)
• 2 rod antennas
• power supply with country adapters
• rackmount set
• 4 rubber feet
• quick guide
• safety guide
• manufacturer declaration sheet
The Tech Spec
| Features | Specification | Frequency range | 823.2 - 831.8 MHz & 863.2 - 864.8 MHz |
|---|---|
| Operating temperature | -10 °C - +55 °C (14 °F - 131 °F) |
| Operating relative humidity | 5 - 95 % (non-condensing) |
| THD, total harmonic distortion | ≤ -60 dB for 1 kHz @ -3 dBfs input level |
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| EW-D EM | Dimensions - 212 x 44 x 189 mm Current consumption - ≤ 300 mA Audio output level - 18 dBu max. Weight - approx. 1000 g (without antennas and power supply) Input voltage range - 11 - 13 V ⎓ Transmission power - BLE: max. 10 mW EIRP |
| ME 3 | Connector - 3.5 mm jack Cable length - approx. 1.60 m Sensitivity in free field, no load (1kHz) - 1.6 mV/Pa Frequency response - 50 to 18,000 Hz Pick-up pattern - cardioid Transducer principle - pre-polarized condensor microphone Max. sound pressure level - 150 dB |
| EW-D SK | Dimensions - 63 x 80 x 20 mm (without antenna) Power supply - 2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack Input voltage range - 2.0 - 4.35 V Weight - approx. 120 g Current consumption - < 300 mA Transmission power - Audio link: 10 mW ERP (Range Y1-3): 12 mW ERP BLE: max. 10 mW EIRP |
