Sennheiser EW-D AB (S) Antenna Booster
Sennheiser EW-D AB (S) High-Quality Inline 12 dB Antenna Booster S: 606 - 694 MHz
- SCANPROTECT Protect against installation damage for 28 days. More info

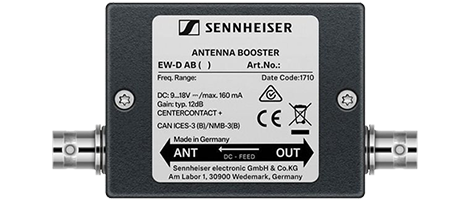

Sennheiser - EW-D AB (S)
Antenna Booster
Boost your potentialThe Sennheiser EW-D AB Inline Antenna Booster is a professional-grade frequency-selective antenna booster. This is inserted between a remote antenna and an EW-D ASA antenna splitter to provide a 12 dB boost to make up for potential RF signal loss when running long coaxial antenna cables, significantly improving the wireless performance of your EW-D series receiver.
The frequency selectivity of the EW-D AB keeps all RF signals within the specified S: 606 to 694 MHz frequency range, and are amplified while RF signals with frequencies outside of the specified range are attenuated. The EW-D AB is DC powered by the EW-D ASA antenna splitter. This DC pass-through capability allows you to connect up to two EW-D AB per antenna cable line (DC-coupled). A green LED also displays clearly when sufficient DC power is received.
12 dBGain
S: 606 - 694 MHzFrequency Range
50 ΩImpedance
At A Glance
• High-quality inline 12 dB antenna booster to improve wireless performance
• Keeps all RF signals within S: 606 - 694 MHz frequency range
• Works with EW-D ASA Antenna Splitter
• Robust and reliable design
The Tech Spec
| Features | Specifications | Frequency Range | S: 606 - 694 MHz |
|---|---|
| IIP3 | >25 dBm |
| Maximum RF Input Power | 10 dBm |
| Gain | 12 dB (Typical) |
| Connections | 2 x BNC Female, DC Feed from OUT to ANT |
| Impedance | 50 Ohms |
| Power Supply | Receives DC Power from EW-D ASA Antenna Splitter: 12 VDC (9 to 18 VDC) / Max 160 mA at 12 V, Center Contact + |
| Relative Humidity | 5 to 95% |
| Temperature | Operating Temperature Range: 14 to 131°F / -10 to 55°C Storage Temperature Range: -4 to 158°F / -20 to 70°C |
| Dimensions | 3.7 x 1.9 x 0.8" 95 x 47 x 21 mm |
| Weight | 4.2 oz 120 g |
