Sennheiser EW 512P G4-GBW Wireless Microphone System
Scan code: LN91658
Manufacturer code: 507799
£879.00
Sennheiser EW 512P G4-GBW Wireless Microphone System
Sennheiser EW 512P G4-GBW Rugged All-In-One Broadcast Quality Wireless Microphone System
Scan code:
LN91658
Manufacturer code:
507799
FREE DELIVERY ON YOUR ENTIRE BASKET
Order now and get it tomorrow
(upgrade to Saturday delivery at checkout)
- SCANPROTECT Protect against installation damage for 28 days. More info
Product Overview
The professional‘s choice for broadcast quality sound. Providing the highest flexibility for your video sound and field recording applications. A robust wireless microphone system that offers ultimate sound quality, simple mounting and ease of use.
Impressive film sound was never that easily done. The legendary MKE 2 Gold professional clip-on microphone ensures best speech intelligibility, the portable transmitter and receiver are easily mounted and ensure 8 hours of mobile operation. Features • Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording
• Professional sound and excellent construction quality
• Easy to use and fast setup time
• Easy and flexible wireless synchronisation between transmitter and receiver via infrared
• Up to 88 MHz bandwidth, up to 32 channels
• Increased RF output power (10/30/50 mW)
• Up to 8 hours of operation time
What's in the box?
• EK 500 G4 camera receiver

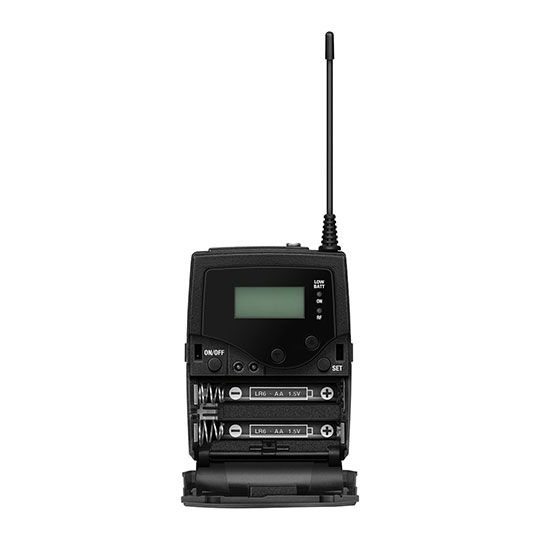

• SK 500 G4 bodypack transmitter
• MKE 2 clip-on microphone
• 4 AA batteries
• CL 1 3.5 mm jack cable
• CL 500 XLR to 3.5 mm jack adapter cable
• CA 2 camera adapter
• fur windscreen for MKE 2
• quick guide
• safety guide
• manufacturer declaration sheet
Technical Data
EK 500 G4
• Frequency range:
- AS: 520 - 558 MHz
- K+: 925 - 937,5 MHz
- JB: 806 - 810 MHz
- GBw: 606 - 678 MHz
- Gw: 558 - 626 MHz
- Bw: 626 - 698 MHz
- Cw: 718 - 790 MHz
- Dw: 790 - 865 MHz
- Aw+: 470 - 558 MHz
- Gw1: 558 - 608 MHz
• Dimensions Approx. 82 x 64 x 24 mm
• Compander Sennheiser HDX
• THD, total harmonic distortion = 0.9 %
• Weight (incl. batteries) approx. 130 g
• Audio output 3.5 mm jack socket: +17 dBu (mono, balanced)
• Signal-to-noise ratio Line: = 110 dBA, Phones: approx. 90 dBA
• Switching bandwidth up to 88 MHz
• Peak deviation ±48 kHz
• Nominal deviation ±24 kHz
• Operating time Typically 8 h
• Modulation Wideband FM
• Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption at nominal voltage: typ. 140 mA / with receiver switched off: = 25 µA
• Adjacent channel rejection Typically = 65 dB
• Intermodulation attenuation Typically = 65 dB
• Powering 3 V battery / 2.4 V rechargeable battery
• Receiving frequency Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
• RF sensitivity < 1.6 µV for 52 dBA eff S/N
• Squelch low: 5 dBµV, middle: 15 dBµV, high: 25 dBµV
• Temperature Range -10 °C to +55 °C
• Receiver Principle Adaptive diversity
• Blocking = 70 dB
SK 500 G4
• Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: = 0.9 %
• Weight: (incl. batteries) approx. 160 g
• Signal-to-noise ratio: = 115 dBA
• RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
• Switching bandwidth: up to 88 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 180 mA / with transmitter switched off: = 25 µA
• Input impedance: 40 kO, unbalanced / 1 MO
• Max. Input voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
• AF frequency response: Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
• Temperature Range: -10 °C to +55 °C
• Frequency stability: = ±15 ppm
MKE 2
• Connector: 3.5 mm jack
• Frequency response: 20 to 20.000 Hz ± 3 dB
• Max. sound pressure level: 142 dB
• Cable length: approx. 1.60 m
• Transducer principle: pre-polarized condensor microphone
• Pick-up pattern: omni-directional
• Sensitivity in free field, no load (1kHz): 5 mV/Pa, ± 3 dB
• Equivalent noise level: 26 dB
• Equivalent noise level weighted as per CCIR 468-3: 39 dB
Impressive film sound was never that easily done. The legendary MKE 2 Gold professional clip-on microphone ensures best speech intelligibility, the portable transmitter and receiver are easily mounted and ensure 8 hours of mobile operation. Features • Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording
• Professional sound and excellent construction quality
• Easy to use and fast setup time
• Easy and flexible wireless synchronisation between transmitter and receiver via infrared
• Up to 88 MHz bandwidth, up to 32 channels
• Increased RF output power (10/30/50 mW)
• Up to 8 hours of operation time
What's in the box?
• EK 500 G4 camera receiver
• SK 500 G4 bodypack transmitter
• MKE 2 clip-on microphone
• 4 AA batteries
• CL 1 3.5 mm jack cable
• CL 500 XLR to 3.5 mm jack adapter cable
• CA 2 camera adapter
• fur windscreen for MKE 2
• quick guide
• safety guide
• manufacturer declaration sheet
Technical Data
EK 500 G4
• Frequency range:
- AS: 520 - 558 MHz
- K+: 925 - 937,5 MHz
- JB: 806 - 810 MHz
- GBw: 606 - 678 MHz
- Gw: 558 - 626 MHz
- Bw: 626 - 698 MHz
- Cw: 718 - 790 MHz
- Dw: 790 - 865 MHz
- Aw+: 470 - 558 MHz
- Gw1: 558 - 608 MHz
• Dimensions Approx. 82 x 64 x 24 mm
• Compander Sennheiser HDX
• THD, total harmonic distortion = 0.9 %
• Weight (incl. batteries) approx. 130 g
• Audio output 3.5 mm jack socket: +17 dBu (mono, balanced)
• Signal-to-noise ratio Line: = 110 dBA, Phones: approx. 90 dBA
• Switching bandwidth up to 88 MHz
• Peak deviation ±48 kHz
• Nominal deviation ±24 kHz
• Operating time Typically 8 h
• Modulation Wideband FM
• Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption at nominal voltage: typ. 140 mA / with receiver switched off: = 25 µA
• Adjacent channel rejection Typically = 65 dB
• Intermodulation attenuation Typically = 65 dB
• Powering 3 V battery / 2.4 V rechargeable battery
• Receiving frequency Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
• RF sensitivity < 1.6 µV for 52 dBA eff S/N
• Squelch low: 5 dBµV, middle: 15 dBµV, high: 25 dBµV
• Temperature Range -10 °C to +55 °C
• Receiver Principle Adaptive diversity
• Blocking = 70 dB
SK 500 G4
• Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: = 0.9 %
• Weight: (incl. batteries) approx. 160 g
• Signal-to-noise ratio: = 115 dBA
• RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
• Switching bandwidth: up to 88 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 180 mA / with transmitter switched off: = 25 µA
• Input impedance: 40 kO, unbalanced / 1 MO
• Max. Input voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
• AF frequency response: Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
• Temperature Range: -10 °C to +55 °C
• Frequency stability: = ±15 ppm
MKE 2
• Connector: 3.5 mm jack
• Frequency response: 20 to 20.000 Hz ± 3 dB
• Max. sound pressure level: 142 dB
• Cable length: approx. 1.60 m
• Transducer principle: pre-polarized condensor microphone
• Pick-up pattern: omni-directional
• Sensitivity in free field, no load (1kHz): 5 mV/Pa, ± 3 dB
• Equivalent noise level: 26 dB
• Equivalent noise level weighted as per CCIR 468-3: 39 dB
