sE Electronics - X1 A
Cardioid Condenser Microphone
the perfect choice for any musicianThe sE Electronics X1 microphone made its debut in 2011 and introduced a new level of quality to its price point, easily competing with microphones at a much higher price range. sE Electronics have taken it even further with a newly-developed condenser capsule and an exterior inspired by the rugged metal chassis of the X1. The X1 A delivers world-class sound and specifications at an even more accessible price, featuring an impressively natural frequency response, huge SPL-handling capabilities of 150dB, selectable attenuation and low-cut filters, with a perfectly balanced sensitivity level, ideal for recording any sound source.
20 mV/PaSensitivity
20 Hz - 20 kHzFrequency Range
50 ΩImpedance
Amazing Features
• Made with a rugged all-metal housing, sleek finish, and premium components
• Upgraded capsule and enhanced electronics provide outstanding performance
• Attenuation and highpass switches make recording any sound source easy
Premium Components Throughout
ALL-METAL
HOUSINGThe X1 A's all-metal chassis offers effective rejection of any electrical interference and noise, whilst the high-quality finish provide a great aesthetic for years to come.
INTEGRATED
WINDSCREENRemoves the need for an external pop filter, and gives you an extra layer of safety and security for the all-important capsule.
GOLD-PLATED
XLR CONNECTORProvides loss-free, signal connection you can rely on for years to come, with consistant quality for every recording.
INSTANT
FITTINGThe X1 A comes complete with a newly designed sturdy swivel mic clip and thread adapter to fit instantly with any mic stand.
Completely New Acoustic Design
A work of artThe X1 A's new condenser capsule design is truly a work of art, capturing in incredible detail from any source with incredible speed, accuracy, and well-balanced frequency response.
The electronics have also had a complete overhaul, and exhibit better specifications and sound, on and off the test bench than any other microphone in its class.
Attenuation & Low Cut Switches
Incredibly User-FriendlyThe -20 dB pad switch on the left offers extended dynamic range, allowing for a wide range of applications and close-mic techniques for even the loudest instruments, such as super-heavy electric guitars, fortissimo brass instruments, and heavy-footed kick drums.
On the right, the 100 Hz low-cut switch helps reduce low-frequency rumble or footfall noise, and compensates for excessive bass with close-mic techniques (proximity effect).
The X1 A Condenser
The Tech Spec

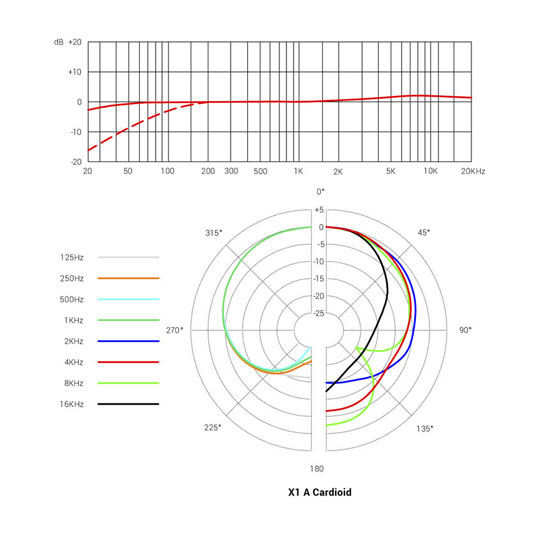

| Features | Specification | Capsule Type | 2/3" Permanently-Biased Condenser |
|---|---|
| Directional Pattern | Cardioid |
| Frequency range | 20 Hz - 20 kHz |
| Impedance | <50 Ohms |
| Sensitivity | 20 mV/Pa (-34 dB) |
| Max SPL | 130 / 150 dB (0 / 20 dB pad, (0.5% THD @ 1kHz) |
| Signal to Noise Ratio | 78 dB(A) |
| Equivalent Noise Level | 16 dB(A) |
| Dynamic Range | 114 / 134 dB (0 / 20 dB pad) |
| Low Cut Filter | 100 Hz, 6 dB/oct, switchable |
| Attenuation Pad | 20 dB, switchable |
| Connectivity | 3-pin male XLR |
| Power requirement | 48V phantom according to IEC 61938 |
| Recommended Load Impedance | >1K Ohms |
| Current Consumption | 4.0 mA |
| Dimensions | Diameter: 58 mm (2.28 in.) x Length: 169 mm (6.65 in.) |
| Weight | 390 g / 13.8 oz |
