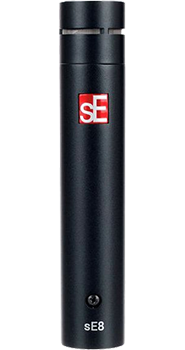

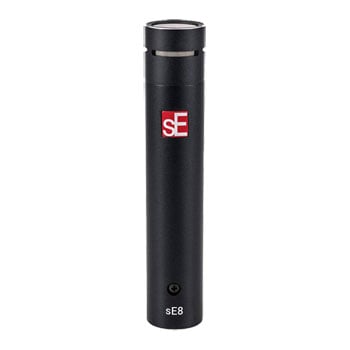

sE Electronics sE8 Small Diaphragm Condenser Microphone
sE Electronics - sE8 Small Diaphragm Condenser Microphone, Hand-Made Capsule & All-Metal Build, 110 Ohms
- SCANPROTECT Protect against installation damage for 28 days. More info
Small Diaphragm Condenser Microphone
sE Electronics - sE8
SMALL IN SIZE, HUGE IN SOUNDThe sE Electronics sE8 is a high-performance handcrafted small-diaphragm condenser microphone suitable for any challenges in the studio or on stage. It is incredibly versatile and provides consistently great results when used with acoustic guitar, choir, orchestral and strings, piano, woodwinds, drums, percussion, cymbals / OH and more.
The hand-made capsule and all-metal build keeps the premium components safe from the rigours that may occur with frequent use. This microphone features built-in attentuation pads and low-cut filters, allowing you to capture the sound perfectly. The sE8 is also one of the quietest microphones on the market!
110 ΩImpedance
20 Hz - 20 kHzFrequency Range
25 mV / PaSensitivity
at a glance
• Hand-made capsule & all-metal build
• Balanced sound & sophisticated backplate design
• Perfect for sources like high-hats and drum overheads
• One of the quietest small-capsule mics on the planet
• Highest dynamic range and SPL handling in its class

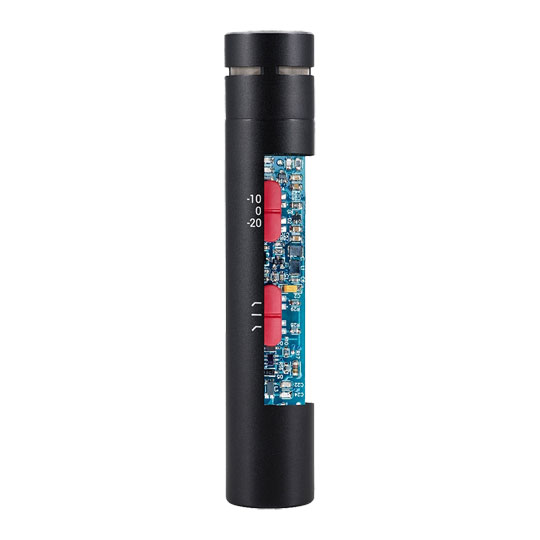

• Integrated attenuation pads and low-cut filters
Meet the sE8 Small-Diaphragm Condenser
The Tech Spec
| Features | Specification | Capsule | Hand-crafted 1/2" True Condenser |
|---|---|
| Electrical impedance | 110 Ohms |
| Recommended load impedance | >1k Ohms |
| Connectivity | 3-pin male XLR connector |
| Powering | 48V Phantom Power (P48 according to IEC 61938) |
| Polar patterns | Cardioid |
| Frequency range | 20 Hz - 20 kHz |
| Sensitivity | 25 mV / Pa (-32 dBV) |
| Max SPL | 139 / 149 / 159 dB (0 / 10 / 20 dB pad) (0.5% THD @ 1kHz) |
| Equivalent noise level | 13 dB |
| Dynamic range | 126 / 136 / 146 dB (0 / 10 / 20 dB attentuation pad) |
| Signal to noise ratio | 81 dB |
| Low-cut filter | 80 / 160 Hz, 6 dB / Oct, switchable |
| Attenuation pad | 10 / 20 dB, switchable |
| Current consumption | 2.7 mA |

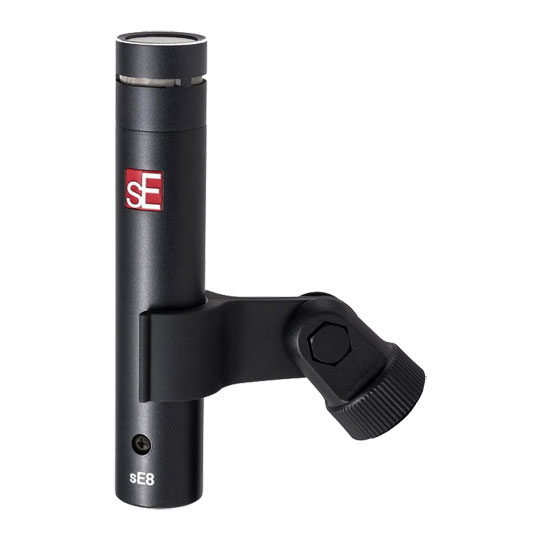

| What's in the box | sE8 microphone mic clip (with thread adapter) wind screen |
| Dimensions | Mic Diameter: 23 mm (0.91 in.) Mic length: 120 mm (4.72 in.) |
| Weight | 141 g (4.97 oz.) |
