Sapphire AMD Radeon RX 5700 XT 8GB NITRO+ Graphics Card

Sapphire RX 5700 XT NITRO+ 8GB GDDR6 PCIe 4.0 Graphics Card, 7nm RDNA, 2560 Streams, 1770MHz GPU, 2010MHz Boost

Thumbnail 1 : Sapphire AMD Radeon RX 5700 XT 8GB NITRO+ Graphics Card Thumbnail 2 : Sapphire AMD Radeon RX 5700 XT 8GB NITRO+ Graphics Card Thumbnail 3 : Sapphire AMD Radeon RX 5700 XT 8GB NITRO+ Graphics Card Thumbnail 4 : Sapphire AMD Radeon RX 5700 XT 8GB NITRO+ Graphics Card
Scan code: LN101329 Manufacturer code: 11293-03-40G
£419.99
From £17.50 / month (APR 0%)
Monthly Payment: £70.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £419.99
Total inc. interest: £419.99
Monthly Payment: £35.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £419.99
Total inc. interest: £419.99
Monthly Payment: £23.34
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £419.99
Total inc. interest: £419.99
Monthly Payment: £17.50
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £419.99
Total inc. interest: £419.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £10.49 / month (APR 15.9%)
Delivery Options
  • By DPD On 17th Dec To 19th Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

Sapphire AMD Radeon RX 5700 XT Nitro+ Graphics Card

Sapphire AMD Radeon RX 5700 XT 7Nm Graphics Card

Brand new Architecture for the new AMD Radeon GPUsAMD have launched their latest Graphics Cards the Radeon RX 5700 XT Series, the new cards are based on the new RDNA Architecture and now include 8GB of GDDR6 Memory driving the card with a high bandwidth of up to 448GB/s. Game at 1440p performance on today's most demanding titles with ease and with the the new architecture you can run your card faster with lower power consumption than ever before. The Sapphire RX 5700 XT series features new PCI Express 4.0 support with a throughput of 16GT/s and enables two times the bandwidth compared to PCI Express 3.0. By choosing a monitor with FreeSync and combining it with an AMD card of this caliber the results will be a stutter-free, tear-free and artifact-free smooth gaming experience.

2560Stream Processors

8GBGDDR6 Memory

1770 MHzBase Clock

2010 MHzBoost Clock

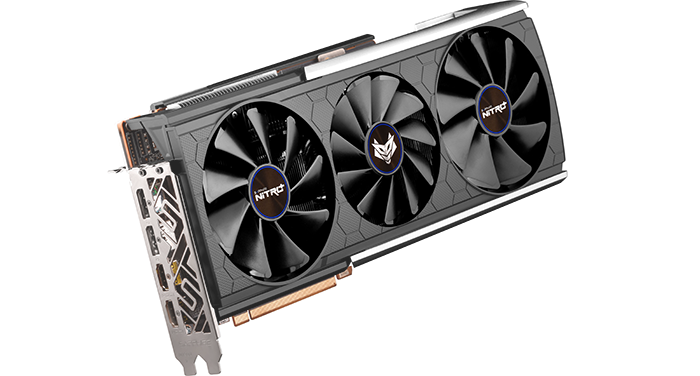

Sapphire AMD Radeon RX 5700 XT Nitro+ Design

RX 5700 XT Nitro+ Design

EXPERIENCE iNDUSTRY LEADING TECHNOLOGIES WITH A REIMAGINED LOOKThe Radeon RX 5700 XT Nitro+ GPU performs as good as it looks. Enhance your battle station with a super-cooled AMD GPU that houses 3 fans to cool your card efficiently and a dark metal look that can look great with any setup. Excellent gaming experiences are created by bending the rules. Harness industry-leading technologies and experience powerful, accelerated gaming customized for you.

Brand New RDNA Architecture with 7nm Process

RDNA Navi Architecture

Reduces latency and provides higher bandwidthThe Radeon RX 5700 XT Series GPUs are powered by the new RDNA architecture, the heart of advanced 7nm technology process. RDNA features up to 40 completely redesigned Compute Units delivering incredible performance and and a multi-level cache hierarchy designed to provide reduced latency, higher bandwidth and lower power. Delivering up to 1.25X higher performance-per-clock and up to 1.5X higher performance-per-watt compared to the previous-generation Graphics Core Next architecture.

Featuring the First AMD GDDR6 PCIe 4.0 Graphics Cards

amd gddr6 4.0

Super-fast performance for todays demanding titlesEquipped with 8GB of advanced GDDR6 memory to provide high bandwidth of up to 448 GB/s, enabling 1440p performance for today’s most demanding games. Radeon RX 5700 XT series features PCI Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI Express 3.0. Get ready for the next generation of PC gaming.

Superior Gaming Performance with FreeSync Monitors

AMD RADEON FreeSync

Smooth Refresh Rate so you can Game at your Best Pair your new AMD Radeon GPU with a large selection of FreeSync gaming monitors. With such a wide array of monitors equipped with Radeon FreeSync or Radeon FreeSync2 HDR available you can enjoy choosing monitors that are styled and run how you want, but by choosing a monitor with FreeSync and combining it with an AMD card of this caliber the results will be a stutter-free, tear-free and artifact-free smooth gaming experience.

AMD Graphics Card Specifications

AMD Radeon RX Card Specifications
Model RX 5700 XT RX 5700 VII RX Vega 64 RX Vega 56 RX 590 RX 580 RX 570 RX 560 RX 550
Architecture RDNA RDNA GCN 5th GCN 5th GCN 5th GCN 4th GCN 4th GCN 4th GCN 4th GCN 4th
GPU Navi 10 Navi 10 Vega 20 Vega 10 Vega 10 Polaris Polaris XTX Polaris 20 Pro Baffin Baffin
Stream Processors 2,560 2,304 3,840 4,096 3,584 2,304 2,304 2,048 896/1024 512/640
Reference Base Clock 1,605 MHz 1,465 MHz 1,400 MHz 1,247 MHz 1,156 MHz 1,469 MHz 1,257 MHz 1,168 MHz 1,175 MHz 1,287 MHz
Reference Boost Clock 1,905 MHz 1,725 MHz 1,750 MHz 1,546 MHz 1,471 MHz 1,545 MHz 1,340 MHz 1,244 MHz 1,275 MHz 1,287 MHz
Memory 8GB GDDR6 8GB GDDR6 16GB HBM2 8GB HBM2 8GB HBM2 8GB GDDR5 4GB/8GB GDDR5 4GB/8GB GDDR5 4GB GDDR5 4GB GDDR5
Memory Controller 256-bit 256-bit 4096-bit 2048-bit 2048-bit 256-bit 256-bit 224-bit 128-bit 64/128-bit
TDP 225W 225W 300W 295W 210W 225W 185W 150W 60-80W 50W
Specifications
Key Specifications
Chipset Radeon RX 5700 XT
Edition NITRO+
Manufacturing Process 7 nm
Microarchitecture RDNA
Cores & Clocks
Streams 2560
Core Clock 1770 MHz
Boost Clock 2010 MHz
Video Memory (VRAM)
Memory Size 8GB
Memory Type GDDR6
Memory Clock 14000 MHz
Memory Speed (Effective with DDR)
Memory Bus 256 Bit
Memory Bandwidth
Memory Data Rate
Cooling
Cooling Solution Tri Fan (3)
Cooler Design SAPPHIRE Tri-X
Fitted/Included Backplate Yes
I/O & Connectivity
Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
Connectivity
  • 2 x DisplayPort 1.4
  • 2 x HDMI
Visuals
AMD CrossFire Support 2-Way CrossFire
AMD Freesync Support Yes
AMD FreeSync Version FreeSync™ 2 HDR
HDR Support Yes
Microsoft DirectX Support 12 API
Max. Concurrent Displays 4 Displays
Maximum Digital Resolution 7680x4320 (8K UHD)
Maximum Analog (VGA) Resolution
Compute Performance
Peak Half Precision Compute Performance (FP16)
Peak Single Precision Compute Performance (FP32)
Peak Double Precision Compute Performance (FP64)
Power & Thermals
Graphics Card Power Connectors
  • 1 x 6-pin PCIe
  • 1 x 8-pin PCIe
Graphics Card TDP/Power 265 W
Minimum Recommended PSU 650 W
Maximum GPU Temperature
Physical
Width 2.2 Slot
Low Profile Support N/A
Dimensions 306 x 49 x 135 mm
Package Type Retail
Additional Information
Scan Code LN101329
Model Number 11293-03-40G
GTIN 4895106287778
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

TekSpek Guides
AMD Radeon RX5700 XT and RX5700
AMD Radeon RX5700 XT and RX5700
Date Issued: 2nd Sep 2019

Productised as the Radeon RX 5700 XT and Radeon RX 5700, the new duo target the mid-to-high-end segment and are primed for high-quality gaming at a lush 1440p resolution.

Read More

Reviews
Sapphire RX 5700 XT NITRO+ 8GB GDDR6 PCIe 4.0 Graphics Card, 7nm RDNA, 2560 Streams, 1770MHz GPU, 2010MHz Boost is rated 4.6 out of 5 by 5.
Rated 4 out of 5 by from Good card Performance is good for the price, almost at 1080ti / 2070 Super levels, but cheaper. One minor bug, with freesync on there is sometimes some slight flickering (not the whole screen, just areas), but its not too bad, its quite subtle. I guess it'll be ironed out by new drivers soon. The card is a bit louder than I expected, a fair bit more than a 1080ti gaming x trio. But the temperatures are good, so it can be dialled down a bit. Having said that it's by no means loud, its just not what I would call quiet. Its a good solid card, looks nice too. If you're deciding between this and a 2060 super, I'd go for this.
Date published: 2019-11-22
Rated 5 out of 5 by from Awesome card cool, quiet, powerful & looks great. What more can you ask for. The picture shows my entire build (components) which I ordered from Scan, and built myself. 7 3700x, NITRO+ RX 5700 XT, Corsair 16gb 2400, Sahara P75 SYNC Full Tower case, with 6 pre installed fans. Super happy, thanks Scan!
Date published: 2019-11-09
Rated 5 out of 5 by from Quality product Straight to the point here, if your avoiding NVIDIA and running a freesync monitor this is the best 5700XT you can get. Its silent and powerful. 2560 x 1440 games run at over 75fps. The RGB lighting is nice, it's a beautiful card and the triple BIOS is easy to use. I also recommend buying this card from SCAN. My 5700XT replaced a 7 month old Radeon VII. I purchased that card from SCAN but it stopped working and so I sent it back to be tested. Within 2 weeks SCAN had identified the fault and provided me with a full refund. Very happy with their customer services and returns team. If your in the market for a 5700xt, get this card and purchase it from SCAN for your own piece of mind.
Date published: 2019-10-28
Rated 4 out of 5 by from Buggy drivers but good otherwise If you are looking for a solid card, This is definitly it, but it is new and there are certainly some bugs you have to live with whilst they update the drivers!
Date published: 2019-10-20
Rated 5 out of 5 by from Very happy This card is a big jump from my old GTX 960. I'm very happy with this card and would definetely recommend if you're looking for a good 5700 XT. My card never hits over 70 degrees and the fan is only running half the speed even then so it also isn't very loud under load
Date published: 2019-10-19
