End Of Life

Scan code: LN100837 Manufacturer code: 11293-01-20G

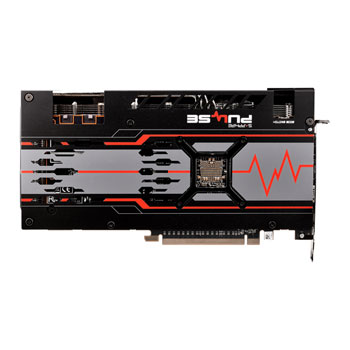

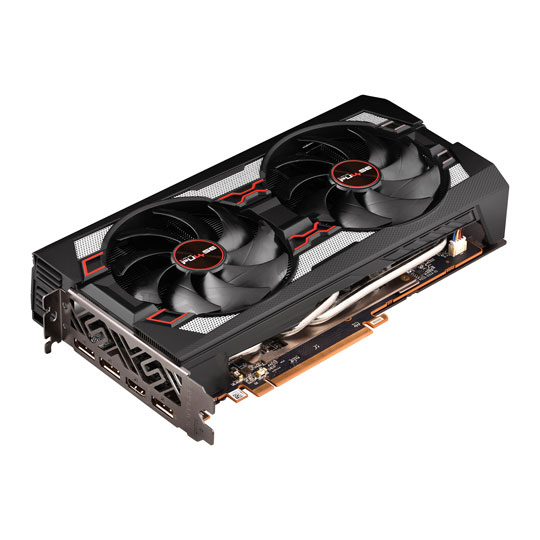

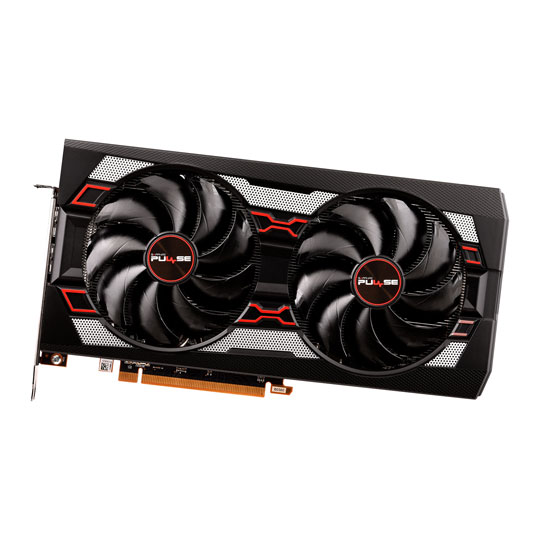

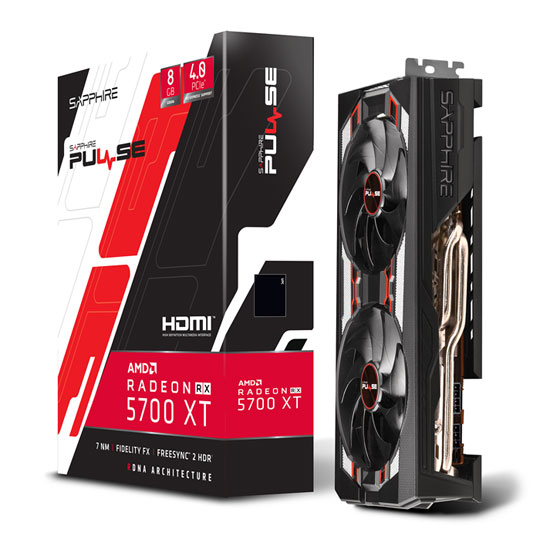

Sapphire AMD Radeon RX 5700 XT 8GB PULSE Graphics Card

Sapphire Radeon RX 5700 XT PULSE 8GB GDDR6 PCIe 4.0 Graphics Card, 7nm RDNA, 2560 Streams, 1670MHz GPU, 1925MHz Boost

MORE INFO

Thumbnail 1 : Sapphire AMD Radeon RX 5700 XT 8GB PULSE Graphics Card

Thumbnail 2 : Sapphire AMD Radeon RX 5700 XT 8GB PULSE Graphics Card

Thumbnail 3 : Sapphire AMD Radeon RX 5700 XT 8GB PULSE Graphics Card

Thumbnail 4 : Sapphire AMD Radeon RX 5700 XT 8GB PULSE Graphics Card

Sapphire AMD Radeon RX 5700 XT 8GB PULSE Graphics Card : video thumbnail 1

Sapphire AMD Radeon RX 5700 XT 8GB PULSE Graphics Card : image 1

zoom

Sapphire AMD Radeon RX 5700 XT 8GB PULSE Graphics Card : image 2

zoom

Sapphire AMD Radeon RX 5700 XT 8GB PULSE Graphics Card : image 3

zoom

Sapphire AMD Radeon RX 5700 XT 8GB PULSE Graphics Card : image 4

zoom

Scan code: LN100837 Manufacturer code: 11293-01-20G

review

Share Facebook Twitter Google Reddit Pinterest LinkedIn

End Of Life This product is no longer available to purchase

Delivery Options

By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Collect instore Collect from our Bolton store, BL6 6PE | Free

Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services

SCANPROTECT Protect against installation damage for 28 days. More info

ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Share Facebook Twitter Google Reddit Pinterest LinkedIn WhatsApp

Sapphire AMD Radeon RX 5700 XT Pulse Graphics Card

Sapphire AMD Radeon RX 5700 XT 7Nm Graphics Card

Brand new Architecture for the new AMD Radeon GPUsAMD have launched their latest Graphics Cards the Radeon RX 5700 XT Series, the new cards are based on the new RDNA Architecture and now include 8GB of GDDR6 Memory driving the card with a high bandwidth of up to 448GB/s. Game at 1440p performance on today's most demanding titles with ease and with the the new architecture you can run your card faster with lower power consumption than ever before. The Sapphire RX 5700 XT series features new PCI Express 4.0 support with a throughput of 16GT/s and enables two times the bandwidth compared to PCI Express 3.0. By choosing a monitor with FreeSync and combining it with an AMD card of this caliber the results will be a stutter-free, tear-free and artifact-free smooth gaming experience.

2560Stream Processors

8GBGDDR6 Memory

1670 MHzBase Clock

1925 MHzBoost Clock

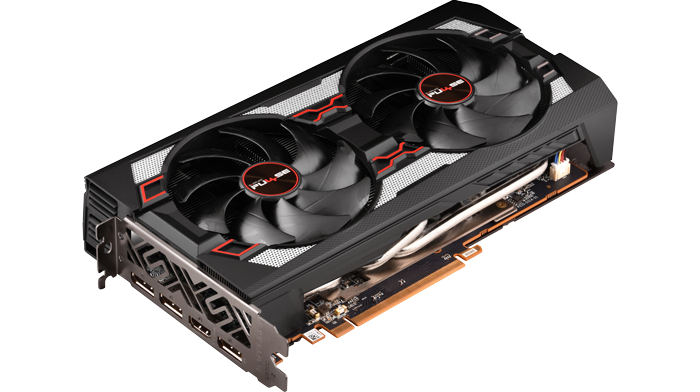

Sapphire AMD Radeon RX 5700 XT Pulse Design

EXPERIENCE iNDUSTRY LEADING TECHNOLOGIES WITH A REIMAGINED LOOKThe Radeon RX 5700 XT Pulse GPU performs as good as it looks. Enhance your battle station with a super-cooled AMD GPU that houses 2 large fans to cool your card efficiently and a dark metal look that can look great with any setup. Excellent gaming experiences are created by bending the rules. Harness industry-leading technologies and experience powerful, accelerated gaming customized for you.

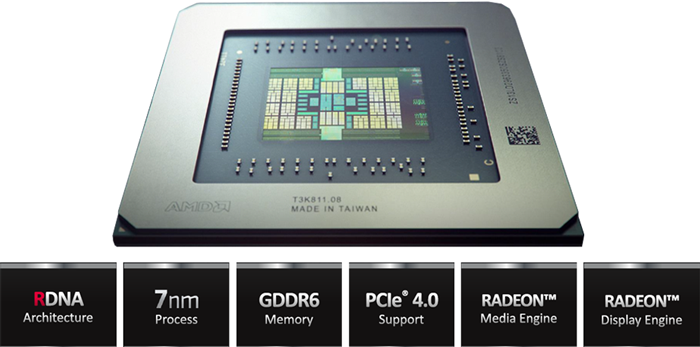

Brand New RDNA Architecture with 7nm Process

Reduces latency and provides higher bandwidthThe Radeon RX 5700 XT Series GPUs are powered by the new RDNA architecture, the heart of advanced 7nm technology process. RDNA features up to 40 completely redesigned Compute Units delivering incredible performance and and a multi-level cache hierarchy designed to provide reduced latency, higher bandwidth and lower power. Delivering up to 1.25X higher performance-per-clock and up to 1.5X higher performance-per-watt compared to the previous-generation Graphics Core Next architecture.

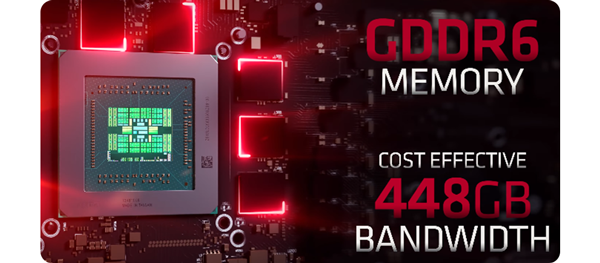

Featuring the First AMD GDDR6 PCIe 4.0 Graphics Cards

Super-fast performance for todays demanding titlesEquipped with 8GB of advanced GDDR6 memory to provide high bandwidth of up to 448 GB/s, enabling 1440p performance for today’s most demanding games. Radeon RX 5700 XT series features PCI Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI Express 3.0. Get ready for the next generation of PC gaming.

Superior Gaming Performance with FreeSync Monitors

Smooth Refresh Rate so you can Game at your Best Pair your new AMD Radeon GPU with a large selection of FreeSync gaming monitors. With such a wide array of monitors equipped with Radeon FreeSync or Radeon FreeSync2 HDR available you can enjoy choosing monitors that are styled and run how you want, but by choosing a monitor with FreeSync and combining it with an AMD card of this caliber the results will be a stutter-free, tear-free and artifact-free smooth gaming experience.

AMD Graphics Card Specifications

	AMD Radeon RX Card Specifications
Model	RX 7900 XTX	RX 7900 XT	RX 6950 XT	RX 6900 XT	RX 6800 XT	RX 6800	RX 6750 XT	RX 6700 XT	RX 6650 XT	RX 6600 XT	RX 6600	RX 6500 XT	RX 6400	RX 5700 XT	RX 5600 XT	RX 5500 XT	RX 580	RX 570
Architecture	RDNA3	RDNA3	RDNA2	RDNA2	RDNA2	RDNA2	RDNA2	RDNA2	RDNA2	RDNA2	RDNA2	RDNA2	RDNA2	RNDA2	RDNA	RDNA	GCN 4th	GCN 4th
GPU	Navi 31	Navi 31	Big Navi	Big Navi	Big Navi	Big Navi	Big Navi	Big Navi	Big Navi	Big Navi	Big Navi	Big Navi	Big Navi	Navi 10	Navi 10	Navi 14	Polaris XTX	Polaris 20 Pro
Stream Processors	6,144	5,376	5,120	5,120	4,608	3,840	2,560	2,560	2,048	2,048	1,792	1,024	768	2,560	2,304	21,408	2,304	2,048
Ray Processors	96	84	80	80	72	60	40	40	32	32	28	16	12	0	0	0	0	0
Reference Base Clock	2,300MHz	2,000MHz	2,100MHz	2,015 MHz	2,015 MHz	1,815 MHz	2,495MHz	2,321 MHz	2,410MHz	1,986MHz	1,626MHz	2,610MHz	TBC	1,605 MHz	1,420 MHz	1,607 MHz	1,257 MHz	1,168 MHz
Reference Boost Clock	2,500MHz	2,400MHz	2,310MHz	2,250MHz	2,250 MHz	2,105 MHz	2,600MHz	2,581 MHz	2,635MHz	2,589MHz	2,491MHz	2,815MHz	2,321MHz	1,905 MHz	1,620 MHz	1,845 MHz	1,340 MHz	1,244 MHz
Memory	24GB GDDR6	20GB GDDR6	16GB GDDR6	16GB GDDR6	16GB GDDR6	16GB GDDR6	12GB GDDR6	12GB GDDR6	8GB GDDR6	8GB GDDR6	8GB GDDR6	4GB GDDR6	4GB GDDR6	8GB GDDR6	6GB GDDR6	4GB/8GB GDDR6	4GB/8GB GDDR5	4GB/8GB GDDR5
Memory Controller	384-bit	320-bit	256-bit	256-bit	256-bit	256-bit	192-bit	192-bit	128-bit	128-bit	128-bit	64-bit	64-bit	256-bit	192-bit	128-bit	256-bit	224-bit
TDP	355W	315W	335W	300W	300W	250W	250W	160W	180W	160W	132W	107W	53W	225W	160W	130W	185W	150W

Sapphire Radeon RX 5700 XT PULSE 8GB GDDR6 PCIe 4.0 Graphics Card, 7nm RDNA, 2560 Streams, 1670MHz GPU, 1925MHz Boost is rated 3.7 out of 5 by 7.

Rated 2 out of 5 by SOC27 from Great card let down by the quality of build After researching, I bought this card for the quietness and performance, and it delivers both. Playing games doesn't produce any obnoxious sound levels and it chews through Borderlands 3 @ 1080p ultra settings easily. However the build quality of the card has let it down with my card at least, as I see GPU memory temperatures of 100 degrees plus! The highest I've seen so far is 106, and on average it runs at 102 degrees while gaming. This is about 20 degrees above several reviews I've read about the card and leads me to think that my card was built poorly. Scan have been good enough to have the card back for testing, but since there were no memory errors in their test, I've had to have the card back. This leaves me with a card I suspect may end up failing, and without confidence in it any time I have an issue with my rig, I can't be sure if it's this card or something else. For example, I'm having a new issue with resuming from sleep, but to properly diagnose it, I will have to remove this card, swap it with a card in my kids PC just to rule it out from other possibilities. The attached picture shows me running Borderlands 3 at main menu then switching out to do a quick memory test in OCCT (the test program Scan used). The synthetic benchmark actually cools the memory from 102 in game to ~90.

Date published: 2020-05-15

Rated 3 out of 5 by RobDT from Excellent when it works, horrible when it doesn't I have somewhat mixed feelings about this card. I brought it on sale when it was significantly cheaper than the 2070 which performance wise its on par with, and even beats it in some cases. However from day 1 I have had problems with AMD drivers, which are known to be notoriously bad and it showed. Most titles and AAA games I had no problems with at all. Games ran very smoothly at 1440p, however some crashed constantly which I did not have any issues with prior with Nvidia, and some completely locked out my PC, forcing me to restart. Early on this happened with simple videos online like YouTube, although a few patches later seemed to have fixed this. VR is extremely hit and miss. Some titles again run great, others refuse to run or have problems (e.g. I had an issue with Boneworks where all text was appearing in one eye screen, again patched at a later date). It did seem to be different on each game so these issues may all get fixed as well. I don't own any titles with Ray Tracing so it's not been a thing I've been bothered about. All in all, looking back I think I would of rather paid that little bit extra to get a Nvidia card with much more stable drivers as it is infuriating when it crashes whilst your in the middle of something. I can't argue though that value is excellent when it does work. This is not specifically a problem with this particular card but the 5700XT's in general. The card itself is lovely. Runs cool even under load and the build quality is great. I would suggest waiting a few month from this review to let the drivers mature and fixes to come out, then get it.

Date published: 2020-03-24

Rated 5 out of 5 by WraithOC3D from Top AMD bang for buck Bought this as an interim GPU while my 1080Ti was out for RMA and honestly blown away by the performance to price! £400 for a second hand 1080Ti or £380 for a new top end AMD slab with warranty and a free copy of Breakpoint... no brainer really! Quality all the way performs on par with my 1080Ti in almost all AAA titles at 1440p honestly if your budget stretches to one I'd get it.

Date published: 2020-02-10

Rated 5 out of 5 by DazH90 from No problems at all As the title suggests, I've had no problems. The drivers install just fine on Windows 10, the thermals are all under control when gaming, and have had no problems playing Rage2 and The Outer Worlds on Ultra settings with 60FPS+ the vast majority of the time. It would be really nice to change the "SAPPHIRE" logo from something that isn't lit with RED but I do not believe these are RGB so... stuck with red.

Date published: 2020-01-13

Rated 5 out of 5 by Hiltman from Powerful card at good value This is a very powerful graphics card with excellent features. Linked to a good quality freesync monitor (we have a 1080p screen) the picture is detailed, colours and textures are rich and realistic and motion is smooth and fluid, maxing out frame rates (240 fps) at high game graphics settings. Microsoft FSX, for example, is a joy at maximum settings. Compared to the main competition (NVIDIA) I think this is excellent value. Software is also a joy to use compared to buggy and clunky NVIDIA software. Bear in mind that you'll need a power supply that's got enough juice to feed this thing - 650W or more - and you'll also need a CPU that's powerful enough to do it justice. We're getting occasional bottlenecking with an 8th gen 6-core Intel i5, guess that's the next upgrade...

Date published: 2020-01-04

Rated 1 out of 5 by HansGruber from Problamatic drivers I had issues with this card from day one. Scan wouldn't offer an exchange so be careful ordering this. I did a full system clean of my previous drivers in safe mode but still no joy. I have improved system stability doing the following. 1 Disable fast boot in bios and in windows 2 Disable HDCP in the radeon drivers

Date published: 2019-11-26

Rated 5 out of 5 by Lolzgamer from Brilliant gaming card I would like to say this graphic cards is a beutiful piece of art plugged in to pc it does run quite hot producing alot of heat when running pc games like gta 5 ff14 tomb raider and mmos that require full usage , only downfall with this card now is u can buy a standard amd rx5700 for cheaper price and bios flash it to a amd rx5700XT but other than that price wise fair price competing with nvidia cards this card is bag for buck plus u get 3 months pc gamers pass but this is advertised as 6 months free which u dont get so buyers be aware when looking at free xbox pass so overall 9 out of 10

Date published: 2019-10-24
