Scan code: LN104681 Manufacturer code: 11296-01-20G

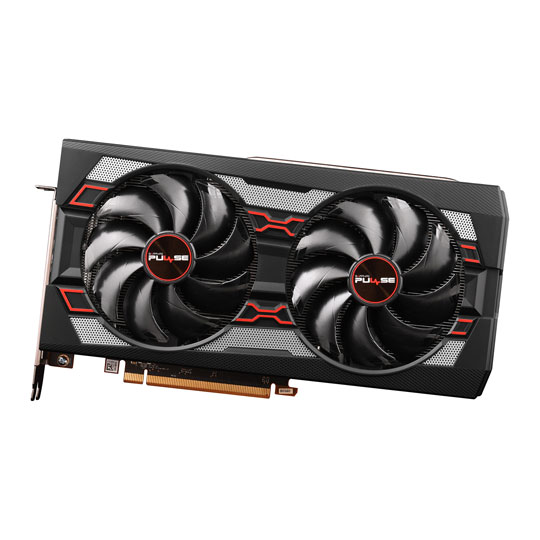

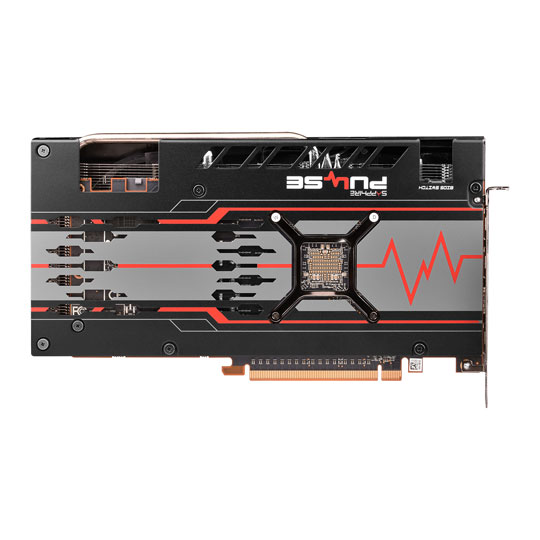

Sapphire AMD Radeon RX 5600 XT PULSE OC 6GB GDDR6 RDNA PCIe 4.0 Graphics Card

Sapphire Radeon RX 5600 XT PULSE OC 6GB GDDR6 PCIe 4.0 Graphics Card, 7nm RDNA, 2304 Streams, 1750MHz Boost

Thumbnail 1 : Sapphire AMD Radeon RX 5600 XT PULSE OC 6GB GDDR6 RDNA PCIe 4.0 Graphics Card Thumbnail 2 : Sapphire AMD Radeon RX 5600 XT PULSE OC 6GB GDDR6 RDNA PCIe 4.0 Graphics Card Thumbnail 3 : Sapphire AMD Radeon RX 5600 XT PULSE OC 6GB GDDR6 RDNA PCIe 4.0 Graphics Card Thumbnail 4 : Sapphire AMD Radeon RX 5600 XT PULSE OC 6GB GDDR6 RDNA PCIe 4.0 Graphics Card Sapphire AMD Radeon RX 5600 XT PULSE OC 6GB GDDR6 RDNA PCIe 4.0 Graphics Card : video thumbnail 1
Scan code: LN104681 Manufacturer code: 11296-01-20G
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Sapphire Pulse OC AMD Radeon RX 5600 XT Graphics Card

Sapphire Pulse OC RX 5600 XT

The Heart, The Beat, The GameThe Sapphire Pulse OC RX 5600XT offers unbelievable performance at an ideal budget for most gamers. Lightning fast 6GB DDR6 memory with re defined display and media engines makes the 5600XT the ideal GPU for 1080p gamers. Powered by AMD’s extreme RDNA architecture, alongside our innovative Dual-X Cooling Technology which keeps the GPU, Memory and VRM components icy cool at low noise levels. The all-aluminium backplate strengthens the GPU and guarantees nothing bends, dust stays out and adds another level of passive cooling to dissipate heat. Pivotal SAPPHIRE features like the Quick Connect Fan, Dual Bios Support and Dual Ball Bearing Fans keep your GPU running smooth and stable. Take your gaming to the next level with the SAPPHIRE PULSE OC RX 5600 XT as the beating heart of your PC!

2304Stream Processors

6GBGDDR6 Memory

1615 MHzCore Clock

1750 MHzBoost Clock

Superior Cooling Technology for Low Temperatures

RDNA Navi Architecture

Intelligent and precise Fan ControlFan speed is intelligently controlled to keep the GPU, memory, PWM IC and other components as low as possible in temperature to balance performance, and fan noise. The Fan IC Control on SAPPHIRE graphics cards reduce differential at approximately 3% which allows up to 70% improvement on accuracy. SAPPHIRE's Dual-X Cooling is powered by two massive yet silent fans and state-of-the-art radiator design. The streamlined form of our 95mm blades mean greater airflow and superior heatsink coverage at lower noise compared to standard cooling designs.

Brand New RDNA Architecture with 7nm Process

RDNA Navi Architecture

Reduces latency and provides higher bandwidthPowered by the groundbreaking 7nm RDNA architecture with Radeon™ Image Sharpening and Radeon™ Anti-Lag technology, Radeon RX 5600 XT GPU delivers extremely efficient, ultra-responsive, high-fidelity gaming for immersive explosions, physics, and lighting effects, bringing realism to life. Take your gaming experience to the next level. You can experience stutter-free, tear-free gaming, reduced input latency and day-0 drivers optimized for new game releases.

Featuring GDDR6 Memory and Compatiblity with PCIe 4.0

amd gddr6 4.0

Super-fast performance for todays demanding titlesEquipped with 6GB of advanced GDDR6 memory to provide high bandwidth of up to 224 GB/s, enabling 1080p performance for today’s most demanding games. Radeon RX 5600 XT features PCI® Express 4.0 support, which enables two times the bandwidth compared to PCI Express 3.0. Get ready for the next generation of PC gaming.

High Fidelity Graphics When you Need it Most


Fidelity FXThe AMD Radeon™ RX 5600 XT graphics card powers high fidelity gaming for immersive explosions, physics, and lighting effects,bringing realism to life. High-performance RDNA architecture was engineered to greatly enhance features like FidelityFX, Radeon™ Image Sharpening,and Integer Display Scaling for maximum performance and beautiful gaming experiences.

High performance, High Resolution

Ultra HD Support

Ultra HD Support The RX 5600 XT GPU is built for high-performance and high resolution gameplay. Experience smooth gameplay performance at 1080p.With support for 8k you are ready for Next-Gen displays. See everything in mind blowing detail without sacrificing performance.

Intuitive Gaming Features

AMD Adrenalin 2020

Adrenalin 2020AMD Radeon™ Software Adrenalin 2020 Edition gives you more control over your gaming experiences. The software's intuitive interface enables players to stream, share and tweak graphics settings in real-time without missing a second of the action or compromising in-game performance.

AMD VR Premium

AMD VR Ready Premium Experience the new generation of compelling Virtual Reality content with the Radeon™ graphics card paired with the leading VR headsets. The Radeon™ card coupled with AMD LiquidVR™ technology delivers a virtually stutter-free, low latency experience, essential for remarkable Virtual Reality environments. Industry leading innovation and powerful performance enables the Radeon™ to deliver premium experiences on high-end VR games, entertainment, and applications.

AMD Eyefinity

AMD Eyefinity TechnologyExpand your territory and customize your field of vision. Connect up to six displays on a single GPU for dynamic, panoramic multi-screen gaming. You’ll get an expansive experience that’s truly out of sight. (additional displays may require the use of MST hub). ‍

AMD Graphics Card Specifications

AMD Radeon RX Card Specifications
Model RX 5700 XT RX 5700 RX 5600 XT RX 5500 XT RX 590 RX 580 RX 570 RX 560 RX 550
Architecture RDNA RDNA RDNA RDNA GCN 4th GCN 4th GCN 4th GCN 4th GCN 4th
GPU Navi 10 Navi 10 Navi 10 Navi 14 Polaris Polaris XTX Polaris 20 Pro Baffin Baffin
Stream Processors 2,560 2,304 2,304 1,408 2,304 2,304 2,048 896/1024 512/640
Reference Base Clock 1,605 MHz 1,465 MHz 1,420 MHz 1,607 MHz 1,469 MHz 1,257 MHz 1,168 MHz 1,175 MHz 1,287 MHz
Reference Boost Clock 1,905 MHz 1,725 MHz 1,620 MHz 1,845 MHz 1,545 MHz 1,340 MHz 1,244 MHz 1,275 MHz 1,287 MHz
Memory Controller 256-bit 256-bit 192-bit 128-bit 256-bit 256-bit 224-bit 128-bit 64/128-bit
TDP 225W 225W 160W 130W 225W 185W 150W 60-80W 50W
Key Specifications
Chipset Radeon RX 5600 XT
Edition PULSE OC
Manufacturing Process 7 nm
Microarchitecture RDNA
Cores & Clocks
Streams 2304
Core Clock 1615 (Game Clock) MHz
Boost Clock 1750 MHz
Video Memory (VRAM)
Memory Size 6GB
Memory Type GDDR6
Memory Clock 14000 MHz
Memory Speed (Effective with DDR)
Memory Bus 192 Bit
Memory Bandwidth
Memory Data Rate
Cooling Solution Dual Fan (2)
Cooler Design SAPPHIRE Dual-X with Quick Connect Support
Fitted/Included Backplate Yes
I/O & Connectivity
Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
  • 3 x DisplayPort 1.4
  • 1 x HDMI
AMD CrossFire Support Supported
AMD Freesync Support Yes
AMD FreeSync Version FreeSync™ 2 HDR
HDR Support Yes
Microsoft DirectX Support 12 API
Max. Concurrent Displays 4 Displays
Maximum Digital Resolution 7680x4320 (8K UHD)
Maximum Analog (VGA) Resolution
Compute Performance
Peak Half Precision Compute Performance (FP16)
Peak Single Precision Compute Performance (FP32)
Peak Double Precision Compute Performance (FP64)
Power & Thermals
Graphics Card Power Connectors 1 x 8-pin PCIe
Graphics Card TDP/Power 160 W
Minimum Recommended PSU 500 W
Maximum GPU Temperature
Width 2.2 Slot
Low Profile Support N/A
Dimensions 254 x 135 x 46.5 mm
Package Type Retail
Additional Information
Scan Code LN104681
Model Number 11296-01-20G
GTIN 4895106288249

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Loading Please Wait

Please wait . . .

TekSpek Guides
AMD Radeon RX 5600 XT
AMD Radeon RX 5600 XT
Date Issued: 21st Jan 2020

With AMD's fortunes transformed, the chip giant continues to march forward with new releases that are shaking up both the CPU and GPU landscapes. In the graphics space, the Radeon assault has been led by the introduction of a new RDNA architecture that powers not only current PC graphics cards, but also next-generation consoles from the likes of Microsoft and Sony.

Read More

Sapphire Radeon RX 5600 XT PULSE OC 6GB GDDR6 PCIe 4.0 Graphics Card, 7nm RDNA, 2304 Streams, 1750MHz Boost is rated 4.1 out of 5 by 13.
Rated 2 out of 5 by from Good card, very poor drivers. Unless you are feeling lucky do not purchase any AMD gpu anytime soon. The drivers issues they are currently experiencing are appalling. Don't get me wrong, the GPUs are amazing on paper, but when it comes to performance, they cannot show their true potential because of the current amd drivers. Constant crashes, blue screens and countless other problems during gaming and even when IDLE!!! Stick to NVIDIA for now until AMD sort this issue out, even though they claimed to fix it back in March.
Date published: 2020-07-04
Rated 5 out of 5 by from Best GPU since the ATI Radeon 9700 Pro. For anyone unaware, with the new Bios installed on this card, it has the same timings as a RX 5700. This card is a RX 5700 with 6GB of Ram instead of 8GB. It runs much cooler than a RX 5700 and can play all games at Ultra Setting paired with a Ryzen 5 3600. This is the best Graphics Card i have purchased since my ATI Radeon 9700 Pro in 2002.
Date published: 2020-06-13
Rated 5 out of 5 by from Great Card for 1080p Very quiet even under full load. Paired with a Ryzen 5 3600 im getting @1080p 232 fps in resident evil 3, 198 fps in F1 2019 and 231 fps in Fallout 76.
Date published: 2020-05-15
Rated 4 out of 5 by from first time using a Radeon gpu and impressed So this is my first time building a pc and I choose this card because it wasn’t too expensive, so far I’m blown away by the performance. And it being very quiet to almost silent under load. I did however encounter a blue screen not a BSoD thankfully I think it was a DRAM issue not gpu. The box it came did seem to have some water on it or was a little damp but the card wasn’t. Overall I really like using this card.
Date published: 2020-04-10
Rated 5 out of 5 by from An amazing 1080 GPU This card can run pretty much all games at Very high/ultra settings @ 1080p
Date published: 2020-04-02
Rated 5 out of 5 by from Sapphire RX5600XT Pulse review My R9 380 was starting to struggle on some of the latest games. Its 4 years old so updated to Sapphire RX5600XT as it was on a bit of an offer and about the max price range I wanted to be in. The change is very noticeable. It at least doubled the frame rates I was used to and more. Why PCIe 4 and not and Nvidea PCIe 3? I intend upgrading my 4/5 year old system from Intel I7-4790K to AMD Ryzen 3700X soon. The x570 boards have PCIe4. Do we need PCIe4? most likely not as experts say only the best graphics cards can get anywhere close to maxing out PCIe 3. I'm at least putting a large future proofing element into my rig. I needed to do a bios update to get better performance for zero cost on this card, but check youtube. The tutorial is on there. Its very easy and as I said, better performance for zero extra cost, so why not. It's now almost same as RX5700 XT, but cheaper. Overall I am very happy with my purchase from Scan. Note, Sapphire TRIX has limited functionality with the pulse version. Its geared towards Nitro, which was not clear on the sapphire website before I bought it. I just use MSI afterburner or the latest AMD Radeon Software. Still a happy chappy though.
Date published: 2020-04-02
Rated 1 out of 5 by from Terrible drivers that have caused audio issues Would be a good card if it weren't for the awful drivers. They cause audio dropouts and glitches. I swapped my old 1060 card back into the same system and the issues immmediately dissapeared. Scan are so far refusing to take a return on it.
Date published: 2020-03-27
Rated 1 out of 5 by from Linux users be be very scared! I know from research this is an recommended card - for Windows users. My poor rating is based on being a Linux user. The AMD drivers trashed my system requiring a re-installation of my system disk. I returned this to Scan (who were brilliant as usual) and got an Nvidia card replacement whose drivers installed flawlessly. Remarkable considering how badly Nvidia has treated Linux users historically. Nothing intrinsically wrong with this product just beware if you're not a Windoze user.
Date published: 2020-03-18
