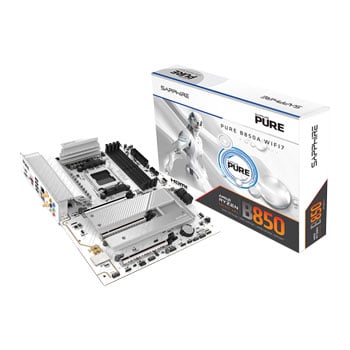

Sapphire PURE B850A AM5 DDR5 PCIe 5.0 ATX Motherboard

Sapphire PURE B850A WIFI 7, AMD B850, AM5, DDR5, PCIe 5.0, 3x M.2, 2.5GbE, USB 3.2 Gen2, ATX
MORE INFO
MORE INFO

Scan code: LN167681 Manufacturer code: 52123-11-40G
£158.99
£5.48 Next day delivery
Order now and get it tomorrow, Mon 15th Jun
Add To Basket
Get it Tomorrow, 15 JunIn stock
Pay in 3 interest-free payments of £53.00

Email me when the availability or price changes

  • By DPD On 15th Jun Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • From £14.41 / month (APR 16.9%) for 12 months or 0% for 4 months
  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.

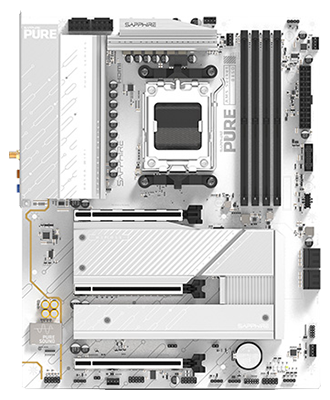

PURE B850A WIFI 7 AMD Ryzen™ ATX Motherboard from Sapphire

PURE B850A WIFI 7 AMD Ryzen™ ATX Motherboard from Sapphire

Forged for the Frost The SAPPHIRE PURE B850A WIFI 7, built on the AMD B850 chipset for AM5 CPUs, delivers premium performance with a sleek, minimalist design featuring geometric accents and robust cooling. Enjoy 12+2+1 phase 55A VRM, extensive heatsinks for VRM, PCH, and M.2 slots, plus PCIe 5.0 support for GPU and storage. Dual-channel DDR5 up to 8000+ MT/s (256GB max), WiFi 7, 2.5Gb LAN, Bluetooth 5.4, and versatile USB (up to 10Gb/s). SAPPHIRE CORE BIOS offers intuitive tuning, diagnostics, and overclocking via an approachable dashboard. Ideal for gaming and pro workloads.

AMD® B850Chipset

Ryzen™ 9000/8000/7000 SeriesCPU Support

ATXForm Factor

Unlock Powerful Performance

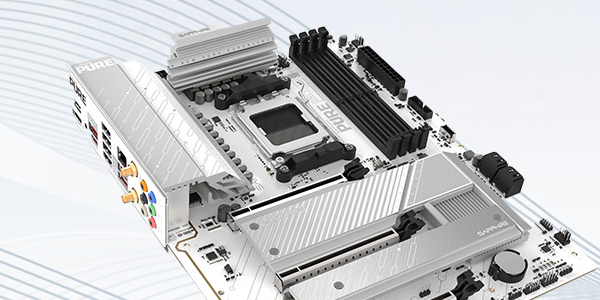

Top half of Sapphire Pure motherboard, highlighting CPU.

Smart Power Supply 12+2+1

High-quality dual 8-pin power interfaces provide stable power to the CPU, allowing the mainboard to fully unleash the processor's performance potential.

Hardcore Memory Boost

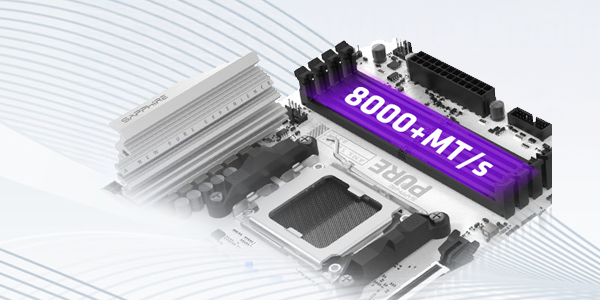

Top corner of Sapphire Pure motherboard, highlighting memory.

Metal Reinforced Memory Slot 8000+ MT/s

The mainboard is equipped with a 4-slot, dual-channel memory design, supporting memory overclocking up to 8000+MT/s. Its independent route design reduces impedance and electrical interference, ensuring stability and reliability.

Future Ready Standard

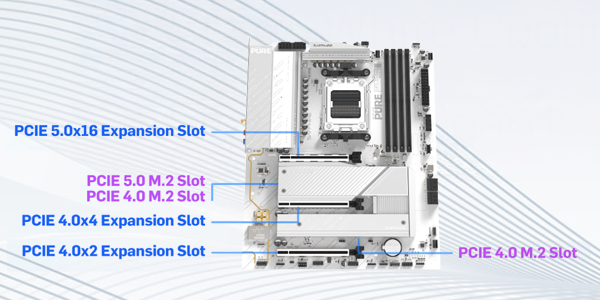

Sapphire Pure motherboard with lines targetting PCIe connectivity points.

Link Performance Gen 5

Provides extensive Gen 5 support, and supports a wide range of ultra-fast storage and expansion devices on the market, delivering unrestricted bandwidth for your devices.

Frosty Cooling

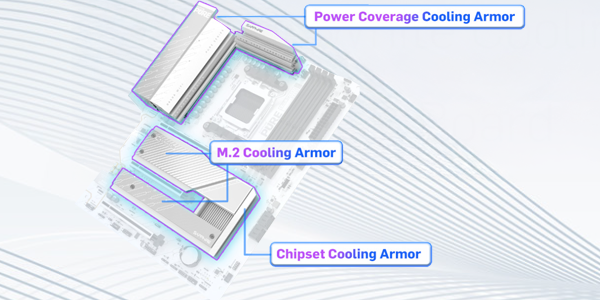

Sapphire Pure motherboard with lines targetting cooling areas.

Push Flagship CPUs to the Limit 9950X/9950 X3D

Utilises an integrated, high-efficiency, large-area cooling armour, effectively covering the mainboard's high-heat components and provides continuous cooling for your VRM, M.2 and chipset.

High Speed Wi-Fi 7

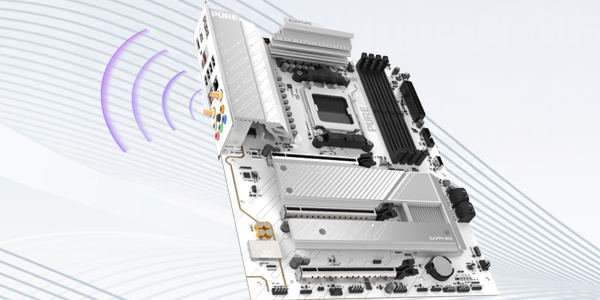

Pulsing illustration next to the antenna slot on the Sapphire Pure motherboard, highlighting WiFi7 connectivity.

Smooth Wireless Connection Supports WiFi 7 and Bluetooth 5 for high-speed, stable transmission. The standard wireless module provides multiple connectivity options for your devices.

Convenient Connectivity

Rear IO illustrated with lines to highlight ports.
DisplayPort
USB 10G
Network Interface
HDMI Interface
10G Type-C
USB 2.0 x4
USB 10G x2
WiFi Antenna
Audio Interface x6
Specifications
Core Specifications
Edition PURE B850A WIFI 7
Form Factor ATX
CPU Socket AM5
Chipset AMD B850
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 8000(OC)
Max. Memory Capacity 256GB (4x64GB)
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/80, PCIe Gen4x4
  • 1 x M.2, 22-42/80, PCIe Gen5x4
  • 1 x PCIe 4.0 x16 (x2 Bandwidth)
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable RGB LED 5V Connector
  • 1 x BIOS Flashback connector
  • 1 x Clear CMOS jumper
  • 4 x Diagnostic LED
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x RGB LED connector
  • 1 x Serial (COM) Header
  • 1 x speaker header
  • 1 x TPM (SPI_TPM) header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11be Wi-Fi 7
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11be WiFi 7 + BT5.4
  • 1 x Realtek RTL8125BG
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x Side Speaker Out
  • 4 x USB 2.0
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 245 mm
Note
Additional Information
Scan Code LN167681
Model Number 52123-11-40G
GTIN 840777092354
