Sapphire AMD Ryzen V1807B IPC-FP5V-1GE Mini-ITX Motherboard
Scan code: LN103054
Manufacturer code: 52095-00-40G
End Of Life
Sapphire AMD Ryzen V1807B IPC-FP5V-1GE Mini-ITX Motherboard
Sapphire IPC-FP5V-1GE, AMD Ryzen V1807B Embedded CPU, VEGA 11 Graphics, 2x 1 GbE, 4x DisplayPort 1.4, DDR4, M.2, mITX
Scan code:
LN103054
Manufacturer code:
52095-00-40G
This product is no longer available to purchase.
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
Product Overview
• Zen Architechture with 14nm FinFET.
• 4 Cores.
• 8 Threads.
• CPU Max Freq: Up to 3.8GHz.
• CPU Base Freq: 3.35GHz.
• TDP: 35-54W.
• Vega GPU 11 Compute Units.
• Four DisplayPort 1.4.
• Dual 1 Gigabit Ethernet ports.
• Two COM ports (RS232/422/485).
• Two COM headers (RS232).
• ALC662 HD 5.1 Channel Audio.
• Four USB2.0 Headers.
• Two USB3.1 ports.
• Two USB2.0 ports.
• 12V DC power input.
• TPM 2.0 support.
• Active APU cooler included.
AMD IPC-FP5V 1GbE Mini-ITX
The AMD IPC-FP5V Mini-ITX embedded motherboard is based on the latest AMD Ryzen™ Embedded V-Series Family APUs which features the industry leading “Vega” GPU graphics combined with the high-performance “Zen” CPU Core. Four independent 4K DP++ displays are supported in addition to dual-channel DDR4-3200 SODIMM memory, dual 1GbE controllers, and M.2 expansion for WiFi and SSD modules. The IPC-FP5V is an ideal solution for applications requiring a high speed communications front-end like a mini-server or high resolution display products like gaming machines, medical imaging, interactive digital signage, thin clients, or POS terminals.
• 4 Cores.
• 8 Threads.
• CPU Max Freq: Up to 3.8GHz.
• CPU Base Freq: 3.35GHz.
• TDP: 35-54W.
• Vega GPU 11 Compute Units.
• Four DisplayPort 1.4.
• Dual 1 Gigabit Ethernet ports.
• Two COM ports (RS232/422/485).
• Two COM headers (RS232).
• ALC662 HD 5.1 Channel Audio.
• Four USB2.0 Headers.
• Two USB3.1 ports.
• Two USB2.0 ports.
• 12V DC power input.
• TPM 2.0 support.
• Active APU cooler included.

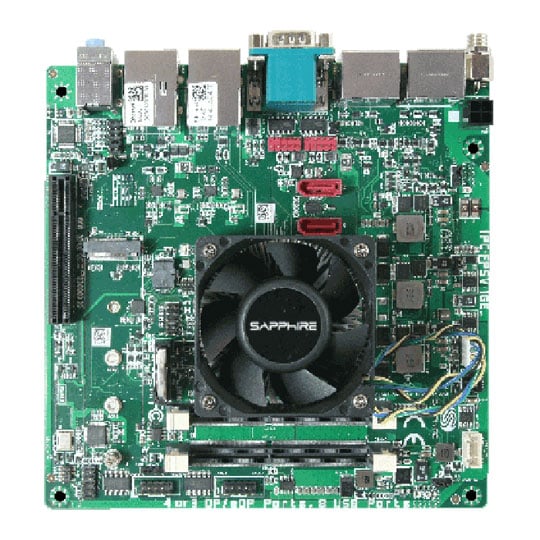

Sapphire AMD Ryzen V1807B IPC-FP5V-1GE Mini-ITX Motherboard
