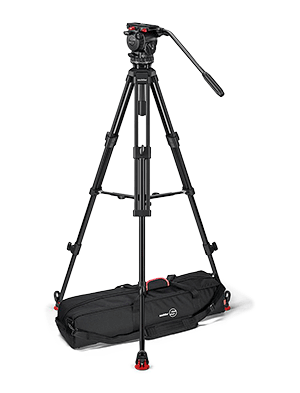

Sachtler - 'System FSB 8 Mk II 75/2 AL MS'
Fluid, Smooth, Balanced: Capture the moment preciselyRedesigned with features from the revolutionary Sachtler aktiv fluid head range, FSB delivers precision movement with finely calibrated levels of drag and counterbalance for the perfect shot. The streamlined profile is built to withstand the toughest conditions to deliver repeatable, reliable camera support shot after shot.
Key Features
Smooth operationCreate precision pans with smooth starts and soft stops.
Finely balancedDelivering smooth pan-tilt fluid actions to match any camera payload from 0kg.
Always on the levelInnovative illuminated PrismBubble visible from any height – day or night.
Built for enduranceEngineered to the highest standards with tough materials and precision components, FSB is built for endurance.
The Tech Spec
| Features | Specification | Range | FSB |
|---|---|
| Pan bar count | 1 |
| Payload | 0 - 12 kg |
| Bowl Size | 75 mm |
| Weight | 5.40 kg |
| Material | Aluminium |
| Spreader Type | Mid-Level Spreader |
| Transport length | 870 mm |
| Tripod Stages | 2 |
| Height With Spreader | 0.81 to 1.71 m |
| Temperature range | -40 to 60 °C |
| Tilt range | 90° to -70° |
| Sliding range | 120 mm |
| Interface Compatibility | Sideload |
| Counterbalance | 15 + 0 counterbalance steps |
| Drag | 7 + 0 drag settings |
