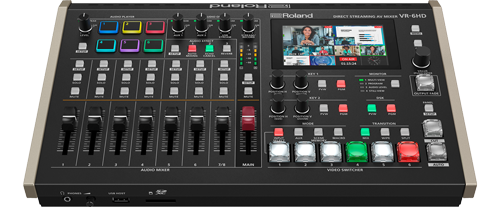

Roland VR-6HD Direct Streaming AV Mixer

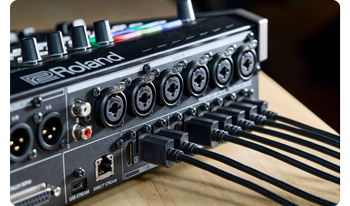

Multiple HDMI InputsThe VR-6HD supports HDMI—the most common video connector in the world—and you can seamlessly combine six HDMI sources in Full HD with a range of broadcast and cinematic frame rates and color spaces. Built-in scalers with EDID and HDCP support provide easy integration with sources like computers, tablets, smartphones, gaming consoles, and legacy 4:3 devices.

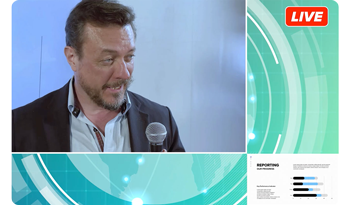

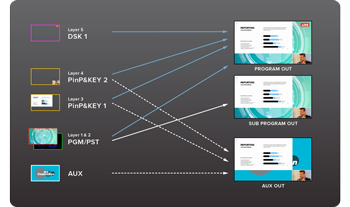

Layers and KeyersVideo effects and graphics are must-haves to bring polish and excitement to productions. The VR-6HD’s newly updated chroma key engine features upgraded keyer algorithms and five layers that can be assigned to the Program, Sub-Program, and Aux outs, so you’ll always keep audiences engaged. With up to two picture-in-picture windows and one downstream key layer with transparent PNG and external key support, you can manage any creative need. For example:

Layers 1-2—Start with mixable live background video layers.
Layers 3-4—Place two picture-in-picture layers or chroma/luminance key effects.
Layer 5—Add a downstream keyer with support for fill and key inputs.

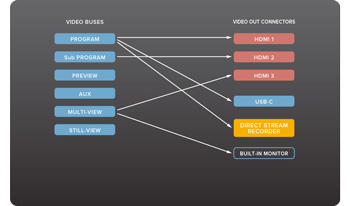

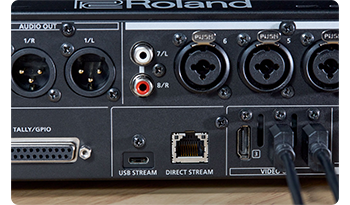

Assignable Video OutputsThe VR-6HD puts a high-end video matrix at your fingers with three HDMI outputs, a USB-C streaming output, and an ethernet streaming output. Feed program displays, auxiliary monitors, multi-view producer displays, and the online audiences at once, complete with a clean output left over for recording the presentation to an SDXC card.

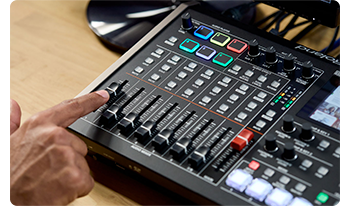

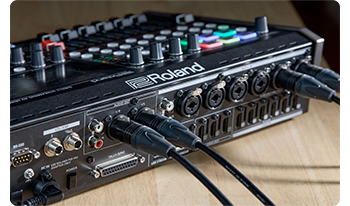

Multi-Channel Audio Inputs and BluetoothThe VR-6HD offers professional analog audio connectivity with six balanced XLR/TRS combination jacks, high-quality mic preamps, and phantom power. Stereo RCA inputs are available for audio players, electronic instruments, and other line-level devices, and you can mix the embedded digital audio from sources connected to the HDMI and USB inputs. And with onboard Bluetooth, it’s easy to stream wireless audio from any mobile device.

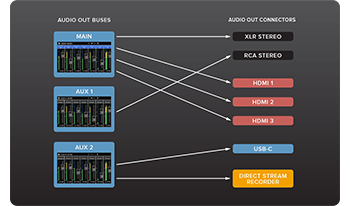

A Mix for Each AudienceTwo auxiliary audio buses let you set up unique mixes for a variety of applications. For example, you can feed a monitor system for presenters while livestreaming a specialized mix that’s independent of the in-person program. Versatile routing allows you to freely assign the mix and aux buses to the two stereo XLR outputs, RCA stereo output, USB and stream/record outs, or HDMI outputs.

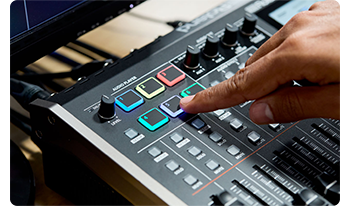

Audio on DemandWith the VR-6HD’s unique Audio Player section and six assignable pads, it’s simple to enhance events with custom sounds. With a quick press, you can trigger sound effects, event announcements, countdowns for e-sports, or theme songs for presenters—the sky’s the limit.

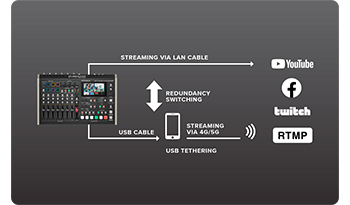

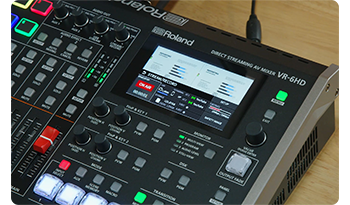

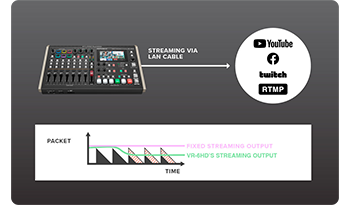

Secure and reliable streaming over LANThe VR-6HD’s powerful LAN streaming capabilities allow you to directly connect with Twitch, Facebook, and other platforms without the need for a computer. The Adaptive Bitrate function monitors the quality of the network connection and automatically adjusts the streaming rate to reduce interruptions due to bandwidth issues. An adjustable Safety Delay is also available, allowing you to confidently stream unscripted events and prevent offensive content from being broadcast.

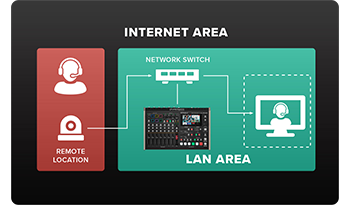

SRT SupportThe VR-6HD supports SRT (Secure Reliable Transport), an open-source standard for AVoIP that provides secure encrypted audio and video transmission over IP networks. It also offers future-proof connectivity within installed system configurations. SRT allows you to seamlessly extend your VR-6HD production capabilities via LAN or an internet connection. Access camera images from remote locations and switch them along with local HDMI sources. And send a dedicated SRT video output to an external destination, such as another building at the production location.

SRT (Secure Reliable Transport) is an open-source video transport protocol and technology stack developed by Haivision.

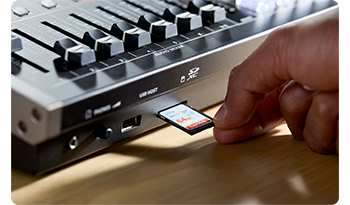

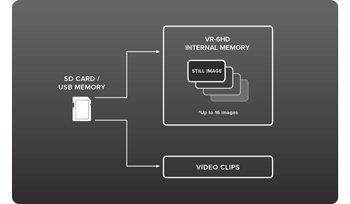

SDXC Card RecordingWith the onboard recorder, you can easily record an event to an SDXC card and provide your client with an H.264 MP4 video file* for their editing and distribution needs. Stereo WAV audio can also be recorded independently for podcasts and other audio-driven media. It’s even possible to capture still images to internal memory from any video output bus and save them to the card for later use.

*The recording bitrate is the same as the livestream encoding bitrate.

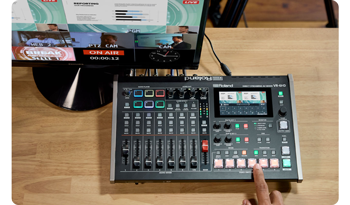

Fast Recall of Complex CompositionsStoring and recalling custom looks can be accomplished with just a few button presses. The 32 scene memories and advanced effects engine work together to provide seamless changes, including synchronizing the transition of all composition layers at the program output. The 100 macros go even deeper, allowing you to build and execute complex action lists that include switching, DSK on/off, audio mixing adjustments, PTZ camera movements, and much more.

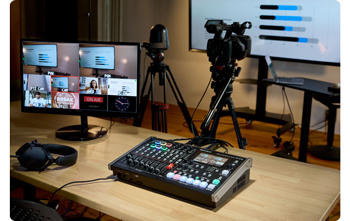

PTZ Camera SupportRobotic PTZ (pan-tilt-zoom) cameras eliminate the need for multiple operators, provide enhanced broadcast-quality coverage, and can be placed in discreet locations thanks to their small size. The VR-6HD features integrated support for select Canon, JVC, Panasonic, Sony, PTZOptics, Avonic, and VISCA-compatible PTZ LAN cameras. Mix and match different brands as you like and operate up to six PTZ cameras simultaneously. With the latest VR-6HD system software, you can now set camera angles and save/recall presets from a USB numeric keypad.
