Roland - V-Pad VH-14D Digital Hi-hat Controller
Roland - VH-14D, 14" Electronic Hi-hats (2 Pieces) with Digital USB-A Connection Cable and Stand-mounting Hardware
- SCANPROTECT Protect against installation damage for 28 days. More info
14" Electronic Hi-Hats
Roland - VH-14D
Digital Hi-hat ControllerRoland is famous for their V-Drums range, and it’s easy to see why with the VH-14D! Roland’s digital pads take the electronic drumming experience to the next level, working hand in hand with super high-speed processing in compatible V-Drums modules to deliver the most expressive electronic drumming experience yet. Capturing even the subtlest of nuances with staggering detail, Roland’s V-Drums range elevates the electronic drumming experience to incredible heights!
The VH-14D takes the electronic hi-hat into a new realm of playability, featuring touch sensitivity, complete tonal variation and open/closed resolution never before seen, until now. Built over a two-piece design, the slim 14” pads offer a natural look and familiar feel, whilst the hi-res, multi-sensor system tracks velocity, stick position, and foot work with serious accuracy and precision! Mute your cymbals with the touch of a hand, and even foot splashes are there too – just like your acoustic hi-hats!
at a glance
• High-res sound triggering designed for use with the TD-50X and compatible Roland sound modules with digital trigger inputs
• Top and bottom 14-inch pads with thin profiles for authentic feel and playability
• Wide-range touch sensors allow you to mute the cymbals with your hand
• Precision tracking of velocity, stick position, and foot pedal work

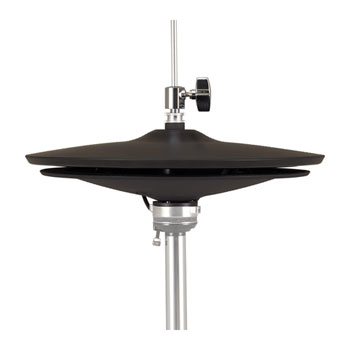

• Mounts to a regular acoustic hi-hat stand
100% Expressive Freedom
ideally paired with TD-50x moduleThe VH-14D is the perfect complement to the PD-140S digital snare and CY-18DR digital ride, bringing Roland’s powerful digital advantages to the three most nuanced pieces in your kit.
For the most expressive VH-14D experience, you’ll want to use it with the flagship TD-50X sound module or a TD-50 module with the TD-50X upgrade installed. These modules include new sounds that are fully optimized for the VH-14D. Standard TD-50 and TD-27 modules are also compatible with the VH-14D via a free system update. This provides support for the VH-14D’s enhanced detection capabilities, but no new sounds are included.
Please note: Hi-Hat stand not included
The Tech Spec
| Features | Specification | Size | 14 inches |
|---|---|
| Available playing methods (triggers) | Open/Half-open/Close/Press (high resolution position detection) Bow shot (high resolution position detection, wide dynamic range) Edge shot (high resolution position detection, wide dynamic range) Foot close/splash Choke (choke edge, bow touch) |
| Sensor system | Multi element sensor system Bow sensor x 3 Edge sensor Motion sensor Touch sensor Built-in sensing processor |
| Connectors | DIGITAL TRIGGER OUT port (compatible with Roland drum sound module equipped with DIGITAL TRIGGER IN port) |
| Power supply | Supplied from DIGITAL TRIGGER IN port (DC 5 V) |
| Current draw | 90 mA |
| Accessories | Owner's manual Clamp Spacer (3 types) Connection cable Cable tie Drum key |
| Dimensions | 356 (W) x 356 (D) x 160 (H) mm 14-1/16 (W) x 14-1/16 (D) x 6-5/16 (H) inches |
| Weight | 2.2 kg / 4 lbs 14 oz |
