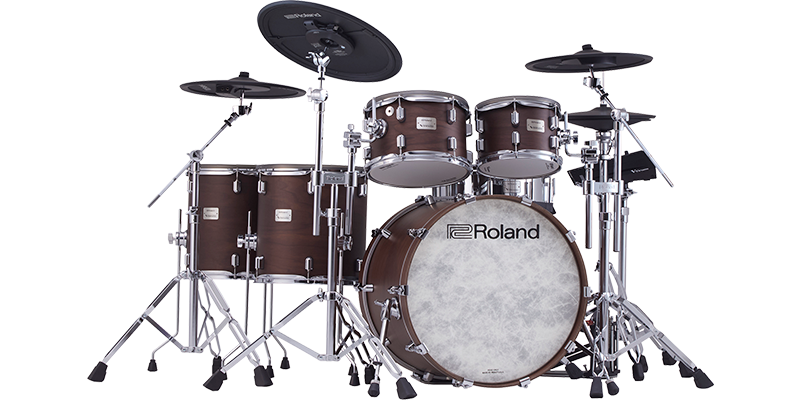

Roland VAD716 Flagship V-Drums Kit - Satin Walnut
Roland - VAD716 Flagship 6-Piece Acoustic Design V-Drums Kit with V71 Drum Module (Satin Walnut)
V-Drums Acoustic Design Drum Kit
Roland - VAD716-SW
(Satin Walnut)
Flagship V-Drums with V71 Sound ModuleThe Roland VAD716 is a 6-piece electronic-drum kit with the aesthetic and footprint of genuine acoustic drum shells and drum hardware stands. This set includes digital hi-hats, a ride and the latest 14-inch PD-14DSX digital snare drum. Roland Cloud connectivity and a trial membership is included for module sound expansion, and access to DW Soundworks VST.
By connecting the included V71 sound module to Roland Cloud, drummers get access to a world of new, authentic drum sounds, giving them the power to build their dream kits – just like having a warehouse full of incredible drums and cymbals to handpick and create the perfect setup.
Together, the VAD716-SW and V71 module offer professional sound quality, features, and connectivity, complemented by an ever-expanding library of instrument expansion packs for sound customization and personalization. All backed by Roland’s reputation for true-to-life playability, expression and feel that no other brand can match.
Please note: Kick pedal, snare stand, hi-hat stand, and drum throne are not included.
At A Glance
• Flagship Roland V-Drums acoustic design drum kit with professional grade V71 series drum module
• Roland Cloud connectivity and trial membership included for module sound expansion, and access to DW Soundworks VST
• High-quality, multi-sampled audio combined with Roland’s sound engine for greatest-ever acoustic expression
• Digital hi-hats, ride and latest 14-inch PD-14DSX digital snare drum included
VAD716 Tech Spec
| Features | Specification | Kit Configuration | Drum sound module: V71 x 1 Snare: PD-14DSX x 1 Tom1: PDA100 x 1 Tom2: PDA120 x 1 Tom3, Tom4: PDA140F x 2 Hi-hat: VH-14D x 1 Crash1, Crash2: CY-16R-T x 2 Ride: CY-18DR x 1 Kick: KD-22 x 1 Drum stand: DTS-30S x 1 |
|---|---|
| Extra Trigger Input Jack | 4 (AUX 1--AUX 4) |
| Dimensions (The Required Space Volume) | 1,950 (W) x 1,500 (D) x 1,250 (H) mm 76-13/16 (W) x 59-1/16 (D) x 49-1/4 (H) inches (including Kick pad, Cymbals, Hi-hat stand and Drum throne) |
| Weight (Total Weight of Kit Components and Accessories) | 69.4 kg / 153 lbs |
| Accessories | Setup guide Drum key |

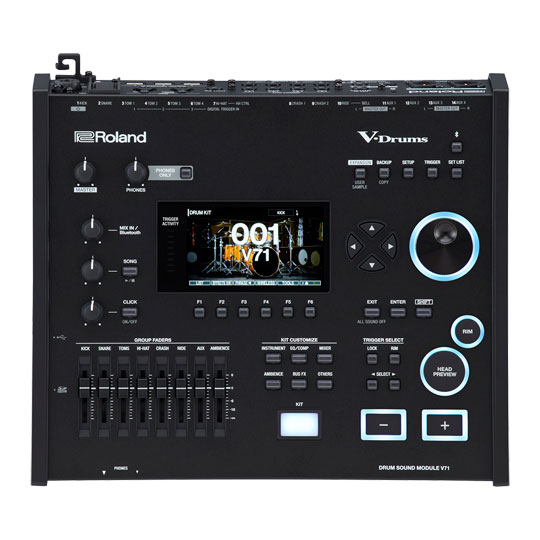

V71 Tech Spec
| Features | Specification | Drum Kits | 200 (Preset: More than 70) |
|---|---|
| Instruments | More than 1000 |
| Effect Types | Layer Transient: each layer Layer Equalizer: each layer Pad Equalizer: each pad (by head and rim) Pad Compressor: each pad (head and rim common) Overhead Mic Simulator Room/Reverb/Kit Resonance Bass Effect: 4 systems (two can be used simultaneously per system/with side chain function), 94 types Bus Reverb Master Compressor Master Equalizer |
| User Sample Import | Number of User Sample: Maximum 500 (includes factory preloaded user samples) Sound Length (total): 24 minutes in mono, 12 minutes in stereo File formats that can be loaded: WAV (44.1 kHz, 16/24 bits) |
| Song Player (SD Card) | Audio File: WAV (44.1 kHz, 16/24 bits), MP3 |
| Recorder | Recording Method: Realtime Maximum Note Storage: approx. 40,000 notes Export File Format: WAV (44.1 kHz, 16 bits), SMF or Recording Method: Realtime Maximum length: 60 min (temporary recording: 1 min) File format: WAV (44.1 kHz, 16 bits) |
| Display | Graphic colour LCD 4.3 inch TRIGGER ACTIVITY Indicator (LED) |
| Faders | 8 (KICK, SNARE, TOMS, HI-HAT, CRASH, RIDE, AUX, AMBIENCE) |
| External Memory | SD Card (SDHC supported) |

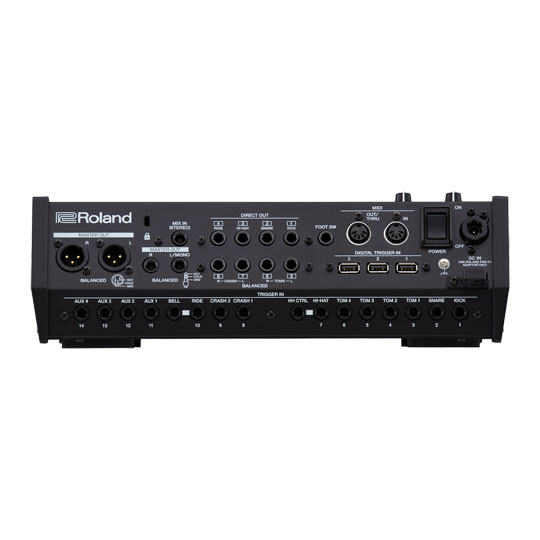

| Connectors | TRIGGER IN jack x 14: 1/4-inch TRS phone type (Exclusion use with digital pad) DIGITAL TRIGGER IN port x 3: USB A type MASTER OUT (BALANCED) jacks (L/MONO, R): 1/4-inch phone type, balanced MASTER OUT (BALANCED) jacks (L, R): XLR type, balanced DIRECT OUT (BALANCED) jack x 8: 1/4-inch TRS phone type, balanced PHONES jack x 2: Stereo 1/4-inch phone type, Stereo miniature phone type MIX IN (STEREO) jack x 1: Stereo 1/4-inch phone type MIDI (IN, OUT/THRU) connectors USB COMPUTER port: USB Type-C(R) (Class Compliant for Audio and MIDI/ Roland driver for Audio and MIDI) FOOT SW jack: 1/4-inch TRS phone type DC IN jack |
| Number of USB Audio Record/Playback Channels | Vendeor Mode Sampling Rate (Original): 44.1 kHz Sampling Rate (with Sampling rate converter): 96 kHz, 48 kHz Record: 32 channels Playback: 32 channels |
| Generic Mode | Sampling Rate (Original): 44.1 kHz Record: 2 channels Playback: 2 channels |
| Power Supply | DC 12V (AC Adaptor) |
| Current Draw | 2,400 mA |
| Power consumption when in off mode (when the power automatically turns off) | 0.2 W |
| Dimensions | 330 (W) x 308 (D) x 110 (H) mm 13 (W) x 12-1/8 (D) x 4-3/8 (H) inches |
| Weight | 4.2 kg 9 lbs 5 oz |
| Accessories | Quick Start Roland Cloud Connect Setup Guide Roland Cloud Activation Card AC Adaptor |
