V1SDI Video Switcher by Roland

Product Overview The new V-1SDI is ideal for both portable and fixed installation applications supporting live events and presentations, as well as small broadcast setups for enterprise video users, K-12 schools and house-of-worship environments. With support for 3G-SDI, the V-1SDI can operate at full 1080p resolution and can take advantage of the longer cable distance of SDI, making this a practical solution in even large spaces," said Christian Delfino, Vice President of Product Marketing for the Roland Professional A/V Division. "It's a very flexible four-channel HD video switcher supporting both SDI and HDMI inputs, video FX and audio mixing/FX, making it a complete and versatile portable video switching and mixing solution."

The Roland V-1SDI provides switching for professional 3G-SDI cameras and playback sources, along with HDMI sources including cameras, smart phones, computers, tablets and Blu-ray players. It has two dedicated 3G-SDI inputs, a third channel input that supports 3G-SDI or HDMI and a fourth channel HDMI input that also includes scaling. Inputs 1 to 3 of the V-1SDI support 1080p/1080i/720p video resolutions with Input 4's scaler supporting a wider range of video and VESA resolutions. This makes the V-1SDI ideal in a variety of configurations for both all-camera applications and applications that mix cameras, video sources and computer data sources. In addition, it has a 14-channel audio mixer for mixing stereo audio from SDI, HDMI and external stereo audio sources and its dedicated microphone input. The V-1SDI includes two SDI program and preview outputs, an HDMI output and a stereo audio output.

The V-1SDI gives users picture-in-picture and split compositing effects for graphic insets, plus a DSK allowing for switching of input sources underneath overlaid titles and graphics and green screen capabilities. The V-1SDI also has output fade including audio fade-out and Auto-Scan functions. The 14-channel audio mixer offers three-band parametric EQ, reverb, up to 500ms delay for accurate lip-sync, a compressor/gate on the mic input and level/multiband EQ on the master mix. A headphone output facilitates audio monitoring, and the V-1SDI supports mono or stereo plug-in-powered microphones.

The V-1SDI includes two SDI program and preview outputs, an HDMI output and a stereo audio output. Both the SDI and HDMI preview outputs can be set to a multiview mode, where all inputs are displayed with colored borders indicating the program and preview selections, or in a full-screen mode. The HDMI multiview output also includes audio metering for the audio sources. In addition, the preview output can be used for additional, menu-driven setup control, or as a second output for applications such as a simultaneous webcast or recording output.

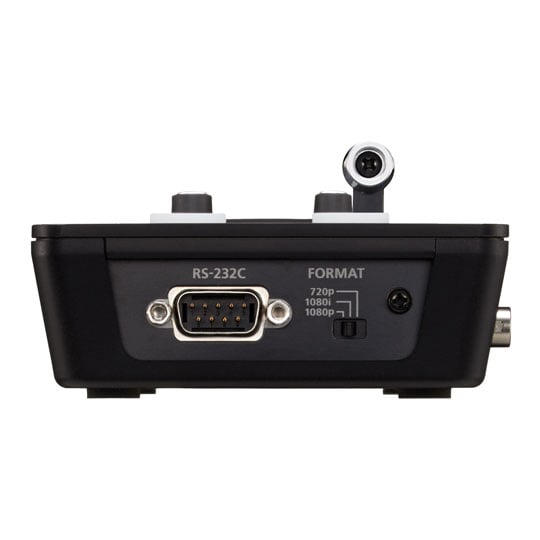

The V-1SDI can also be controlled by the companion PC/Mac application when connected by USB and also has RS-232 for integration in third-party control systems.

The V-1SDI features a clean, intuitive control layout with multi-function buttons and knobs and a large T-handled T-Fader for key and transition operations. Its rugged construction ensures long-term reliability even under the most demanding conditions of portable and professional use. It can also be controlled by the companion PC/Mac application when connected by USB and also has RS-232 for integration in third-party control systems. The Roland V-1SDI High-Definition Video Switcher will be available in October 2016.
Features *More information will be available soon!
