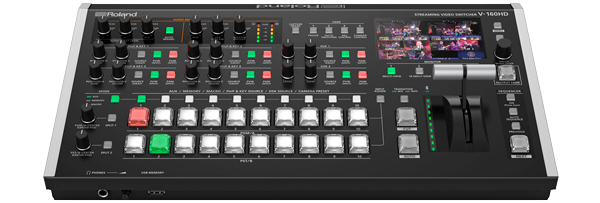

Roland - 'V-160HD Streaming Video Switcher'
The new standard in Hybrid Event SwitchingThe Roland V-160HD Streaming Video Mixer sets a new standard in hybrid event switching. Broadcast Full HD video with comprehensive SDI and HDMI I/O and simultaneously livestream to any platform using USB-C. Featuring an eight-layer video effects engine, a 40-channel digital audio mixer, integrated PTZ camera control, next-generation cue management, and live show automation features making tough production tasks simple. All in a compact and portable design with a broadcast-style interface designed for single-operator use.
• Portable hybrid event switcher with comprehensive features and connectivity
• Selectable output modes: Program, Sub-Program, Preview, three Aux buses, two DSK sources, and three Multi-View options
• Powerful live production automation with sequencing, macros, and preset memories
• PTZ control with support for multiple brands and mixed protocols running at once
• Extensive device control with Bluetooth, USB, RS-232, and LAN
• Eight 3G SDI inputs with frame rate converters
• Eight 1080p HDMI inputs with frame rate converters, including four with real-time scalers
• Seven total outputs across SDI, HDMI, and USB-C streaming
• 40-channel digital audio mixer with effects and processing
• Eight-layer video effects engine
• Wireless and wired camera tally support
• Remote control software available for iPad, macOS, and Windows
Version 3.1 New Features
New Graphics and Chroma Key Features in 3.1• Graphics Presenter support—This free, easy-to-use software for Windows computers elevates your live productions with stunning graphics.
• New Chroma Key Engine—Upgraded keyer algorithms allow for more precise composition in real time.
Robust Hybrid Streaming Switcher
Hybrid to the MaxThe V-160HD combines the robust hardware needed to flawlessly execute live productions with the livestreaming capabilities found in computer-based systems. While software workflows are fine for online-only events, the V-160HD delivers the pro essentials you need for both the in-person and streaming components of a live hybrid event, complete with the ability to tailor the content for each audience.
• On-demand signal processing means you never have to worry about issues like computer CPU overhead, latency, and output delay on live audience screens.
• Integrated connectivity standards like SDI, HDMI, XLR, and USB-C eliminate the need to build out costly infrastructure and conversion processes.
• The comprehensive interface provides hands-on controls that can be learned quickly by a single operator.
• Presets, macros, and advanced sequencing features let you set up and automate complex switching tasks with one touch.

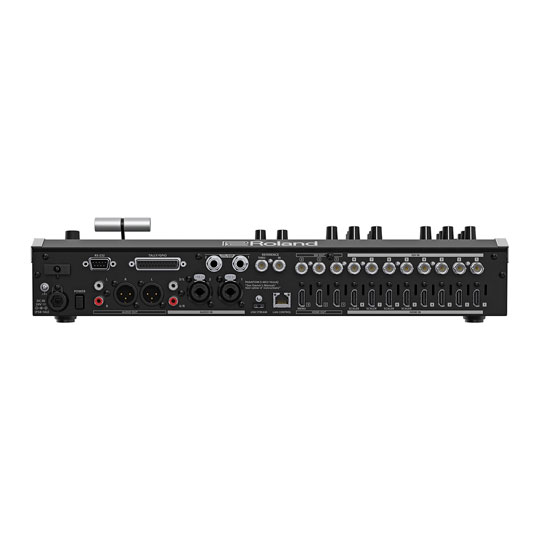

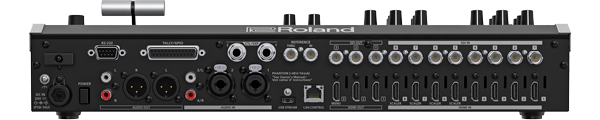

8x HDMI and 8x 3G-SDI Inputs
HDMI and SDI ConnectivityThe V-160HD supports HDMI for common A/V devices plus SDI for long cable runs and high-end cameras. Seamlessly mix eight HDMI sources and eight SDI sources in Full HD, even with mismatched frame rates and color spaces. And with built-in scalers on four of the HDMI inputs, you can easily interface with client-provided sources like computers, tablets, smartphones, gaming consoles, and legacy 4:3 devices.

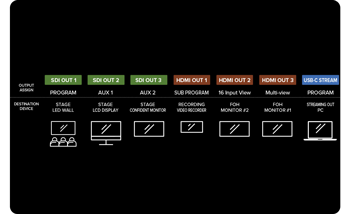

7 Assignable Outputs
Send to Multiple DestinationsWith seven freely assignable outputs—including three SDI, three HDMI, and one USB-C streaming—the V-160HD puts a high-end video matrix at your command. Feed program displays, auxiliary monitors, multi-view producer displays, and the online audience at once, complete with a “clean” output left over for a recording feed.
30 Scene Memory

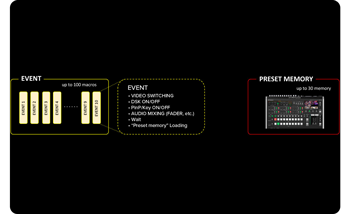

Instant RecallStoring and recalling custom looks can be accomplished with just a few button presses on the V-160HD.
•The 30 preset memories and powerful effects engine work together to provide seamless scene changes, including synchronizing the transition of all composition layers at the program output.
•The 100 macros go even deeper, allowing you to build and fire off complex action lists that include switching, DSK on/off, audio mixing adjustments, PTZ camera movements, and much more.
With Roland's free remote control software for macOS, Windows, and iPad further enhances this workflow, providing a large graphical interface for setting up and previewing actions before you take them live.
Built-in Sequencer

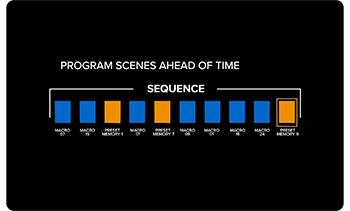

One-Touch AutomationThe V-160HD’s newly developed sequencer makes presets and macros even more powerful, allowing a single operator to execute perfectly timed cues with ease. Up to 1000 steps can be recorded in the sequencer, and each step can include both presets and macros. Simply set up your cues ahead of time in the sequence list and trigger them in order using the Next button on the panel. With the power of the V-160HD’s sequencer, you can tackle the most complex events without ever breaking a sweat.
Built-in Chroma Keyer

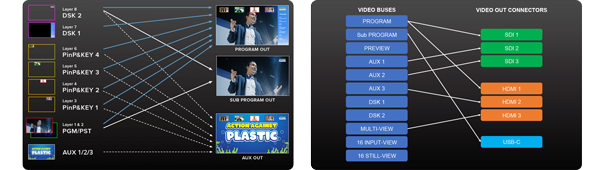

Powerful Video Effects Engine with Flexible Output RoutingVideo effects and graphics are must-haves to bring polish and excitement to any production. The V-160HD’s newly updated chroma key engine features upgraded keyer algorithms and eight layers that can be assigned to the Program, Sub-Program, and three Aux outputs, so you’ll always keep audiences engaged with visually appealing content. With up to four picture-in-picture windows, downstream key layers, 16 still store slots with transparent PNG image support, and more, you can manage the creative needs of any client. For example:
Layers 1-2: Start with a mixable live background video layer.
Layers 3-6: Place four picture-in-picture layers or chroma/luminance key effects.
Layers 7-8: Add two downstream keyers with support for fill and key inputs.
Graphics Presenter Software

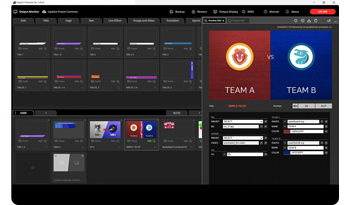

Professional Graphics Made EasyThe Graphics Presenter software for Windows allows you to create stunning titles and graphics without the need for expensive third-party graphic presentation solutions. Setup with the V-160HD is quick and straightforward, requiring only a single HDMI connection to send fill and key signals from the computer to the switcher.
Graphics Presenter offers an intuitive workflow with a wide selection of ready-to-edit templates, including animated title text, sports scores, motion graphics, and more. The software and templates are available free of charge, and additional content is periodically provided for download on Roland Cloud.

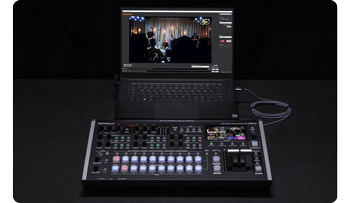

USB Livestreaming
Stream LiveThe V-160HD uses the same connection technology as webcams,* allowing you to stream events at 23.98 to 60 FPS in Full HD** and reach a worldwide audience. Simply connect the USB-C output to a computer and start streaming with Zoom, Microsoft Teams, YouTube, Facebook Live, or any platform that can use a webcam as its source. Everything is plug and play, with no driver installation needed.
*USB video class (UVC) and USB audio class (UAC) compliant.
**YUY2 (uncompressed) and Motion JPEG (compressed) formats supported.

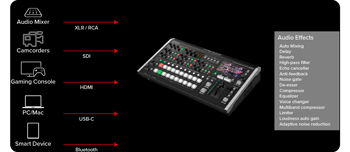

40-Channel Audio Mixer
Sonic PerfectionThe V-160HD features a 40-channel digital audio mixer with studio-grade sound quality. Mix any embedded audio signal pair (1/2, 3/4, 5/6, 7/8) from each of the 16 video inputs, microphones and line-level devices connected to the two balanced XLR combo and stereo RCA inputs, and USB-C audio. And with the convenience of onboard Bluetooth, it’s possible to wirelessly stream music and other sound sources from a phone or tablet as well. There’s also an extensive effects library for polishing sounds and quickly resolving common issues like audio synchronization and background noise removal.

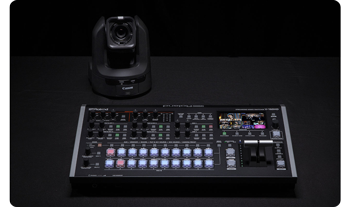

Built-in PTZ Camera Control Support
Extensive PTZ Camera SupportRobotic PTZ (pan-tilt-zoom) cameras greatly expand your production capabilities. They provide extended coverage with studio-grade broadcast quality and can be placed in discreet locations thanks to their small size. The V-160HD includes built-in support to directly control select Canon, JVC, Panasonic, Sony, PTZOptics, Avonic, and VISCA-compatible PTZ LAN cameras. Mix and match different brands as you like and operate up to 16 PTZ cameras simultaneously. With the Version 3.0 update, you even set angles and save/recall presets with a USB numeric keypad.
Multiple Control Options
Complete ControlThe ultimate hybrid event switcher gives you complete control with a LAN port, Bluetooth, USB including 10-key numeric keypad, RS-232, tally/GPIO, support for foot-controlled operation, and more.
• Use the dedicated iPad remote control app to create an efficient touch interface.
• Extend your workflow with free Remote Control Software (RCS) for macOS and Windows.
• Connect a USB numeric keypad to control video transitions and other functions.
• Plug in a BOSS single or double footswitch to execute over 100 different switcher commands.
• Trigger start/stop on Atomos recorders over HDMI.
• Set up a tally light with Roland’s Smart Tally or the rear-panel hardware connector.
• Seamlessly integrate with system installations using the RS-232 and TALLY/GPIO DB-sub connectors.

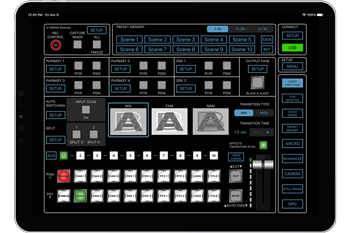

V-160HD IPad Remote Control UtilityThe dedicated V-160HD Remote app turns an iPad into an efficient touch interface for the V-160HD. Run essential switching functions, mix audio with virtual faders, quickly change settings and parameters, and create up to 30 custom scenes for fast, efficient setup changes. With the V-160HD Version 3.0 update, you can also use many of the latest iPad models to monitor video and control switching functions from the app.*
*Requires a 3rd generation iPad Pro/5th generation iPad Air or later with USB-C (USB 3.0) and iPadOS 17 or later.

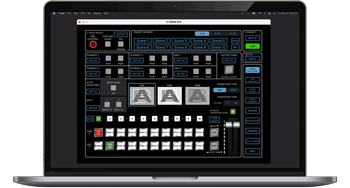

V-160HD RCS for macOS and WindowsWith the V-160HD RCS application for macOS and Windows, you can control nearly all V-160HD functions remotely from your computer via USB, RS-232, wired LAN, or wireless LAN (Wi-Fi) connections. The V-160HD RCS can run at the same time as your streaming software over USB, allowing you to direct the entire production from your computer screen.
