Roland - 'UVC-02 Web Presentation Dock'
Look and Sound Your Best in Video Meetings and PresentationsVideo streaming for business and pleasure has become a regular part of life. But you’ll never look and sound your best with the webcam and microphone in your average computer. The Roland UVC-02 Web Presentation Dock helps you bridge the gap, providing a simple and affordable way to level up your video presentations with higher quality audio/visual gear and more control.
Presentation Control at Your Fingertips

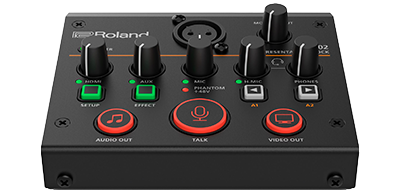

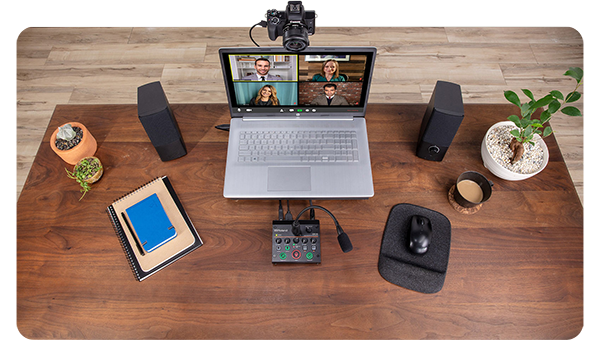

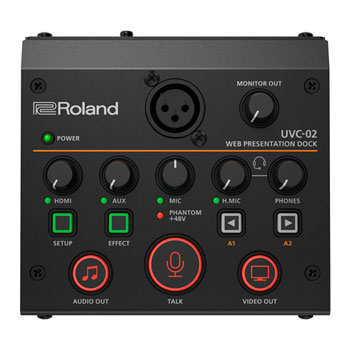

present with ConfidenceThe UVC-02 is a compact broadcast control center that fits comfortably on your desktop. It allows you to connect a high-quality HDMI camera, pro microphone, and other audio sources and send them directly to meeting and streaming platforms on your computer via a single USB cable. And with an array of hands-on knobs and switches at your fingertips, you can easily control the action without ever touching your mouse or computer keyboard.
Compatible with Popular Meeting Software

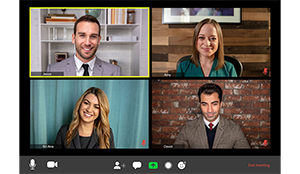

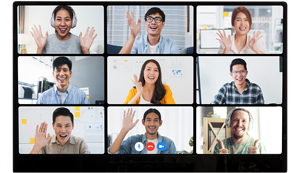

Plug in and PlayOnce connected to your computer via USB, the UVC-02 is instantly recognized as a webcam and audio source, with no drivers or set up required. That means it’s ready to go with popular web meeting software such as Zoom, Microsoft Teams, Webex by Cisco, or any application that uses a webcam as an A/V source for streaming or recording.
Connect HDMI Compatible Cameras

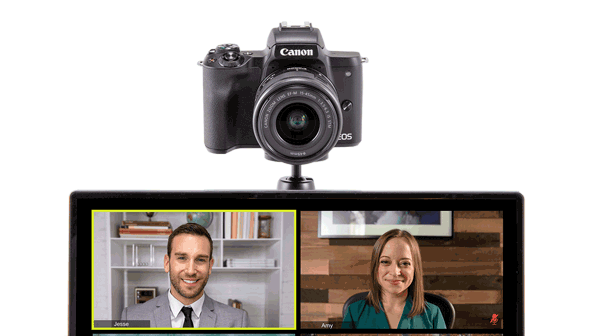

The Ultimate Webcam UpgradeConnect just about any HDMI-compatible camera and instantly elevate the image quality over your built-in or USB webcam. Many standalone cameras offer HDMI output, from action and point-and-shoot cameras to higher-grade mirrorless and DSLR models. They have much better lenses than any webcam and often include zoom capability to frame your perfect shot.
Easy to Setup with USB Output
Superior Image QualityImprove colour, sharpness, and focus to get a cinematic look.

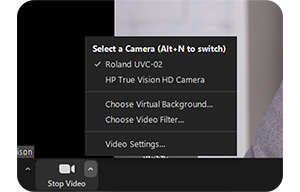

Fast, No-Fuss SetupShows up like a webcam—no special software required.

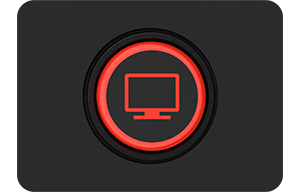

Now You See me, Now You Don'tNeed a break? Turn off your camera feed with the push of a button.

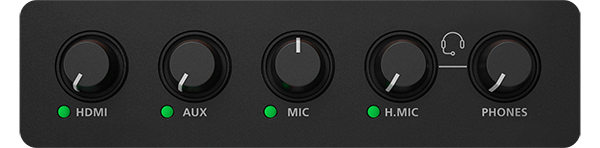

Audio Level Control
Get Ready to Sound GreatThere’s nothing worse than bad audio quality in an online meeting. The UVC-02 ensures your sound starts off strong and stays that way. With a tiny studio-grade mixer and four inputs backed by Roland’s pro audio technology, you have a whole new range of sonic superpowers at your command.
Professional XLR Input

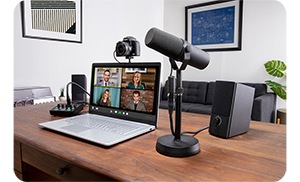

Works with Professional MicsPro broadcast and recording studios choose a specific microphone to get the best out of a performer’s voice. Now, you can choose the mic type that’s right for you and connect it via the XLR input on the UVC-02. Phantom power is also available, allowing you to use a studio-grade condenser mic for the very best sound quality.
Dedicated Monitor Output

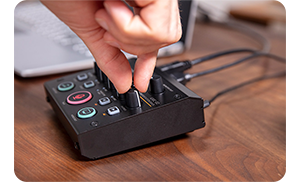

Sound Monitoring Made SimpleThe UVC-02 has a dedicated headphones jack, as well as a stereo monitor output for connecting to external speakers or a recorder. And both have dedicated panel knobs that allow you to reach out and control the listening level with a quick twist. The headphones jack also supports the inline mic on a standard set of earbuds, and there’s a dedicated level knob for this as well.
Add Music with Aux Input

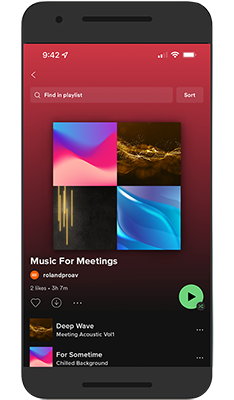

Bring Your Music to the MeetingHate that awkward silence while waiting for everyone to join the meeting? Then connect your phone or other media player to the Aux In and play some background music while everyone gets online.
Hardware Mute Button

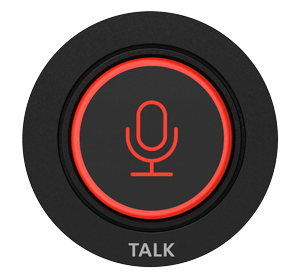

One-Touch Audio MuteDon’t scramble for the un-mute switch in your software as everyone chants, “You’re on mute.” Just press the large Talk button to instantly turn your audio on or off. And with the button’s bright backlight, you’ll always know when your sound is live.
Professional Quality EQ

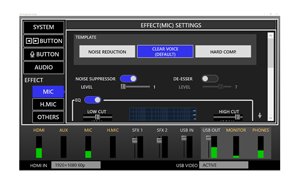

Love the Sound of Your VoiceJust like a broadcast studio, the UVC-02 includes a pro-quality equalizer and audio effects to make your voice sound great. Convenient templates are included to get you started, complete with easy controls to tweak the sound until it’s just right.
Advanced Echo Cancellation & Noise Suppression
Sound Proofing as StandardWith advanced echo cancellation and noise suppression on board, the focus is always on you—and not distracting background sounds like domestic bustle and traffic.
Built-in Voice Change Effect
Who Said Meetings Are Boring?Bring the fun by transforming your voice to male/female, a robot, or even a ghost using the onboard Voice Change effect. You can also trigger applause, chimes, buzzers, or your own custom sound samples for fresh reactions to ideas shared in your meetings.
Customisable Control Functionality

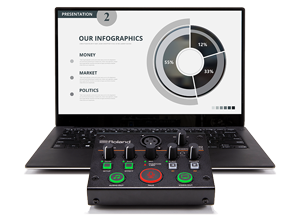

Customisable ControlStreamline your sessions even further with dedicated UVC-02 software for macOS and Windows. Choose two functions that you use most often—such as PowerPoint slide advance* or a sound effect trigger—and assign them to the A1 and A2 buttons for one-touch operation.
*PowerPoint slide control is only available for Windows.
AeroCaster Switcher iPad App

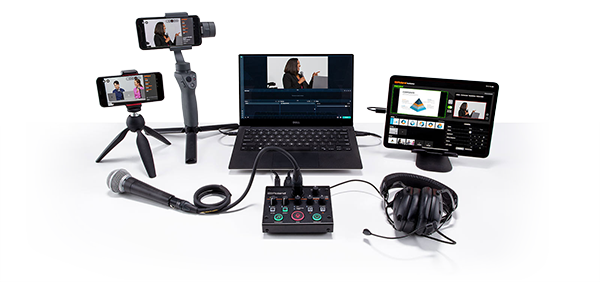

Wireless Multi-Camera MagicThe AeroCaster Switcher app for iPad—available for free with your UVC-02 purchase—allows you to create a wireless multi-camera streaming setup with mobile devices. Connect and switch up to four smartphone or tablet cameras and send the combined signal into the UVC-02’s HDMI input for direct streaming to your favourite platform.
UVC-02 Specification
| Features | Specification | Input Connectors | HDMI IN connector : HDMI type A * HDCP Supported * Multi-format Supported |
|---|---|
| Output Connectors | USB STREAM : USB 3.0 Type-B |
| Input Formats | 480/59.94p, 576/50p, 720/59.94p, 720/50p,
1080/29.97p, 1080/25p, 1080/59.94p, 1080/50p,
SVGA (800 x 600) 60 Hz / 75 Hz, XGA (1024 x 768) 6 0Hz / 75 Hz,
WXGA (1280 x 800)60 Hz / 75 Hz, HD (1280 x 720) 60 Hz / 75 Hz,
SXGA (1280 x 1024) 60 Hz / 75 Hz, FWXGA (1366 x 768) 60 Hz / 75 Hz,
SXGA+ (1400 x 1050) 60 Hz / 75 Hz, UXGA (1600 x 1200) 60 Hz,
FHD (1920 x 1080) 60 Hz * The refresh rate is the maximum value of each resolution. * Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11. |
| USB Video Output Format | YUY2 (Uncompressed), Motion JPEG (Compressed) |
| USB Video Output Resolution | 1920 x 1080, 1280 x 720, 640 x 480 * Maximum frame rate is 60 fps. |
| Audio Processing | Sample Rate 48kHz, 24bits |

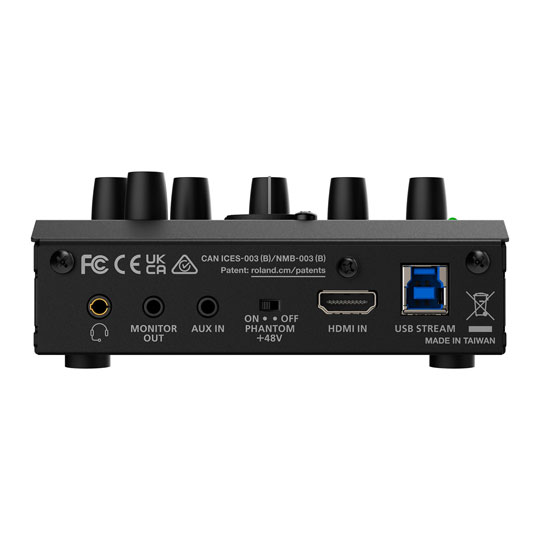

| Analog Connectors | MIC : XLR type (Balanced, Phantom power DC 48V, 14 mA Max) HEADSET : Stereo miniature phone type (CTIA, PLUG-IN power) AUX IN : Stereo miniature phone type MONITOR OUT : Stereo miniature phone type |
| Digital Connectors | HDMI IN : HDMI Type A USB STREAM : USB 3.0 Type-B |
| Nominal Input Level | MIC IN : -54 to -14 dBu (Maximum input level : +4 dBu) HEADSET : -20 dBu (Maximum input level : -2 dBu) AUX IN : -10 dBu (Maximum input level : +8 dBu) |
| Nominal Output Level | MONITOR OUT : -10 dBu HEADSET : 9 mW + 9 mW (32 ohms load) |
| Input Impedance | MIC IN : 5.8 k ohms AUX IN : 10 k ohms HEADSET : 1 k ohms |
| Output Impedance | MONITOR OUT : 1 k ohms HEADSET : 22 ohms |
| Digital Audio Format | HDMI IN : Linear PCM, 48 kHz / 44.1 kHz, 24 / 20 / 16 bits, Stereo USB STREAM : Linear PCM, 48 kHz, 16 bits, Stereo |
| Audio Effects | Anti-Feedback, Echo Canceller, Ducker, Voice Changer, Reverb, Noise Suppressor, Equalizer, Expander, Compressor, Delay |
| Audio File Player | Number of tracks : 2 Data Formats : WAV (Linear PCM, 48 kHz, 16 bits, stereo / mono) Maximum Time : 5 seconds / track |
| Other Functions | MIC Mute (TALK button) Audio Mute (AUDIO OUT button) Video Off (VIDEO OUT button) Slideshow Control |
| Power Supply | Supplied from the computer via USB |
| Current Draw | 900 mA (4.5 W) |
| Operation Temperature | +0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit |
| Dimensions | 124 (W) x 117 (D) x 52 (H) mm 4-15/16 (W) x 4-5/8 (D) x 2-1/16 (H) inches |
| Weight (excluding cables) | 460 g 1 lb 0.3 oz |
